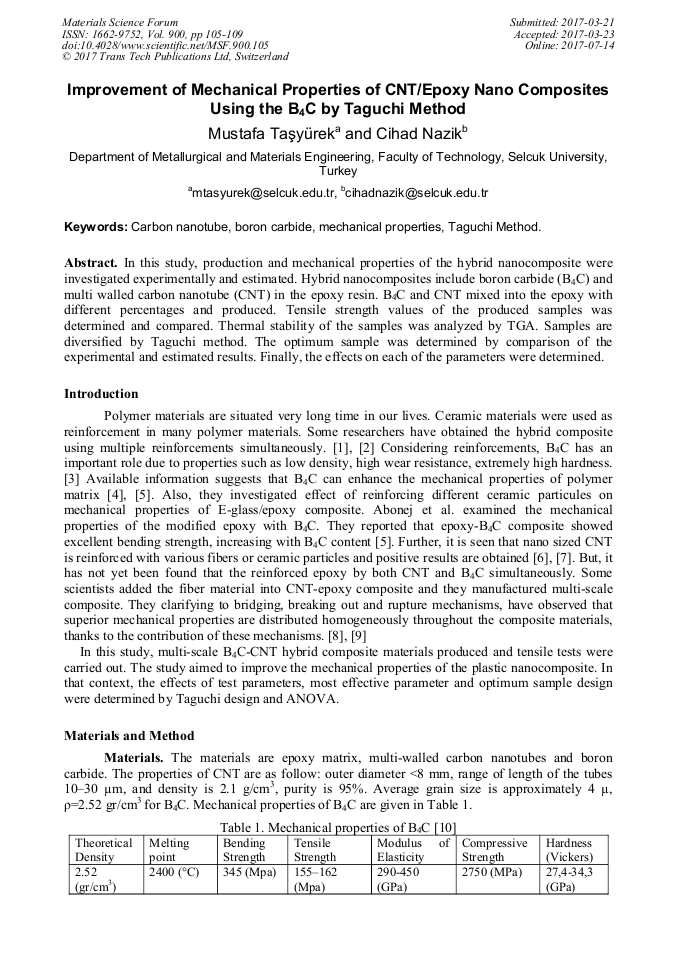

Improvement of Mechanical Properties of CNT/Epoxy Nano Composites Using the B4C by Taguchi Method

Abstract:

In this study, production and mechanical properties of the hybrid nanocomposite were investigated experimentally and estimated. Hybrid nanocomposites include boron carbide (B₄C) and multi walled carbon nanotube (CNT) in the epoxy resin. B₄C and CNT mixed into the epoxy with different percentages and produced. Tensile strength values of the produced samples was determined and compared. Thermal stability of the samples was analyzed by TGA. Samples are diversified by Taguchi method. The optimum sample was determined by comparison of the experimental and estimated results. Finally, the effects on each of the parameters were determined.

• Periodical: Materials Science Forum (Volume 900)
• Pages: 105-109
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.900.105
• Online since: July 2017
• Authors: Mustafa Taşyürek*, Cihad Nazik
• Keywords: Boron Carbide, Carbon Nanotube, Mechanical Properties, Taguchi Method

References

[1] Sayer M. Elastic properties and buckling load evaluation of ceramic particles filled glass/epoxy composites. Compos Part B-Eng. (2014), 59: 12-20.

DOI: 10.1016/j.compositesb.2013.11.016

[2] Ulus H, Üstün T, Eskizeybek V, Şahin ÖS, Avcı A, Ekrem M. Boron nitride-MWCNT/epoxy hybrid nanocomposites: Preparation and mechanical properties. Applied Surface Science. (2014), 318: 37-42.

DOI: 10.1016/j.apsusc.2013.12.070

[3] Wu CD, Fang P, Luo GQ, Chen F, Shen Q, Zhang LM, et al. Effect of plasma activated sintering parameters on microstructure and mechanical properties of Al-7075/B4C composites. Journal of Alloys and Compounds. (2014), 615: 276-82.

DOI: 10.1016/j.jallcom.2014.06.110

[4] Jun J, Kim J, Bae Y, Seo YS. Enhancement of dispersion and adhesion of B4C particles in epoxy resin using direct ultrasonic excitation. J Nucl Mater. (2011), 416(3): 293-7.

DOI: 10.1016/j.jnucmat.2011.06.014

[5] Abenojar J, Martínez MA, Velasco F, Pascual-Sánchez V, Martín-Martínez JM. Effect of Boron Carbide Filler on the Curing and Mechanical Properties of an Epoxy Resin. The Journal of Adhesion. (2009), 85(4-5): 216-38.

DOI: 10.1080/00218460902881782

[6] Prusty RK, Rathore DK, Shukla MJ, Ray BC. Flexural behaviour of CNT-filled glass/epoxy composites in an in-situ environment emphasizing temperature variation. Compos Part B-Eng. (2015), 83: 166-74.

DOI: 10.1016/j.compositesb.2015.08.035

[7] Wang ZC, Xu CL, Zhao YQ, Zhao DD, Wang Z, Li HL, et al. Fabrication and mechanical properties of exfoliated clay-CNTs/epoxy nanocomposites. Mat Sci Eng a-Struct. (2008), 490(1-2): 481-7.

DOI: 10.1016/j.msea.2008.01.040

[8] Zhang JW, Ju S, Jiang DZ, Peng HX. Reducing dispersity of mechanical properties of carbon fiber/epoxy composites by introducing multi-walled carbon nanotubes. Compos Part B-Eng. (2013), 54: 371-6.

DOI: 10.1016/j.compositesb.2013.05.046

[9] Taşyürek M. Investigation of Mechanical Properties and Fatigue Behavior Under Internal Pressure Effect of the ±55° Filament Winding CNT Reinforced CTP Composite Pipe with and without Surface Crack [PhD]. The Graduate School of Natural and Applied Science: Selcuk University, (2014).

[10] Nazik C. The production of aluminium matrix-B4C particle reinforced composites by powder metallurgy method and investigation of their mechanical properties [MSc]: Selcuk University, (2013).
