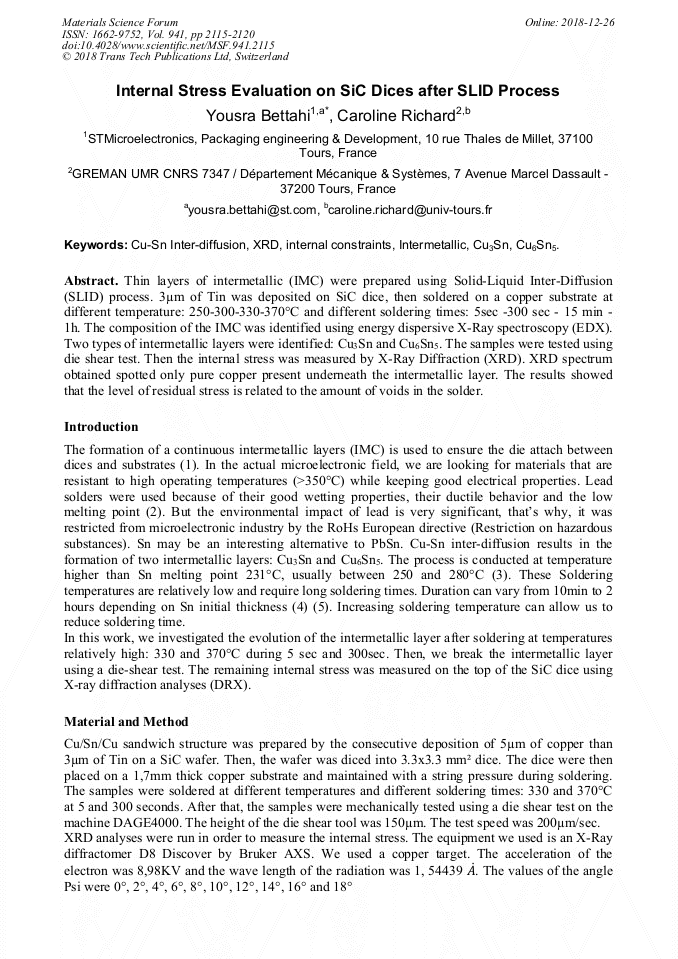

Internal Stress Evaluation on SiC Dices after SLID Process

Abstract:

Thin layers of intermetallic (IMC) were prepared using Solid-Liquid Inter-Diffusion (SLID) process. 3μm of Tin was deposited on SiC dice, then soldered on a copper substrate at different temperature: 250-300-330-370°C and different soldering times: 5sec-300 sec - 15 min - 1h. The composition of the IMC was identified using energy dispersive X-Ray spectroscopy (EDX). Two types of intermetallic layers were identified: Cu₃Sn and Cu₆Sn₅. The samples were tested using die shear test. Then the internal stress was measured by X-Ray Diffraction (XRD). XRD spectrum obtained spotted only pure copper present underneath the intermetallic layer. The results showed that the level of residual stress is related to the amount of voids in the solder.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 2115-2120
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.2115
• Online since: December 2018
• Authors: Yousra Bettahi*, Caroline Richard
• Keywords: Cu₃Sn, Cu₆Sn₅, Cu-Sn Inter-Diffusion, Intermetallic, Internal Constraints, X-Ray Diffraction

References

[1] Experimental investigation of the failure mechanism of Cu-Sn intermetallic compounds in SAC solder joints. Chaoran Yang, Fuliang Le, S.W. Ricky Lee. 2016, Microelectronic reliability, Vol. 62, pp.130-140.

DOI: 10.1016/j.microrel.2016.03.021

[2] Solid-Liquid Interdiffusion (SLID) Bonding- Intermetallic Bonding for High Temperature Applications. Knut E. Aasmundtveit, Torleif A. Tollefsen, Thi-Thuy Luu , Ani Duan, Kaiying Wang , Nils Hoivik. 9-12 Sept. 2013 , Microelectronics Packaging Conference (EMPC).

DOI: 10.5772/intechopen.75139

[3] Activation of electroplated-Cu surface via plasma pretreatment forlow temperature Cu-Sn bonding in 3D interconnection. Activation of electroplated-Cu surface via plasma pretreatment forlow temperature Cu-Sn bonding in 3D interconnection Junqiang Wanga, Qian Wang, Ziyu Liu, Zijian Wu, Jian Cai, Dejun Wang. Beijing : Applied Surface Science, 2016, Vol. 384. pages 200–206.

DOI: 10.1016/j.apsusc.2016.05.023

[4] Fluxless Wafer-level Cu-Sn Bonding for micro- and nanosystems packaging. Nils Hoivik, Kaiying Wang, Knut Aasmundtveit, Guttom Salomonsen, Adriana Lapadatu, Gjermund Kittilsland, Biger Stark. 2010, Electronic System-Integration Technology Conference (ESTC).

DOI: 10.1109/estc.2010.5643013

[5] Low temperature solid-Liquid interdiffusion wafer and die bonding based on PVD thin Cu/Sn films. Sylvain Lemettre, Seonho Seok, Nathalie Isac, Johan Moulin, Alain Bosseboeuf. Montpellier, France : IEEE, 2015. 15307850.

DOI: 10.1109/dtip.2015.7160993

[6] PHYSICAL AND MECHANICAL PROPERTIES OF INTERMETALLIC COMPOUNDS COMMONLY FOUND IN SOLDER JOINTS. Fields, S. R. L. G. K. L. R. J. 1991, Metal Science of Joining.

[7] Synthesis and antimicrobial activity of copper nanoparticles. Jeyaraman Ramyadevi, Kadarkaraithangam Jeyasubramanian, Arumugam Marikani, Govindasamy Rajakumar, Abdul Abdul Rahuman. Pages 114-116, s.l. : Materials Letters, 15 March 2012, Vol. 71.

DOI: 10.1016/j.matlet.2011.12.055

[8] Mechanical and structural properties of electrodeposited copper and their relation with the electrodeposition parameters. A. Ibañez, E. Fatás. 1, 2005, Surface and Coatings Technology, Vol. 191, pp.7-16.

DOI: 10.1016/j.surfcoat.2004.05.001
