Preparation of High Sphericity Li₂TiO₃ Tritium Breeder by Polymer Assisted Sedimentation Method

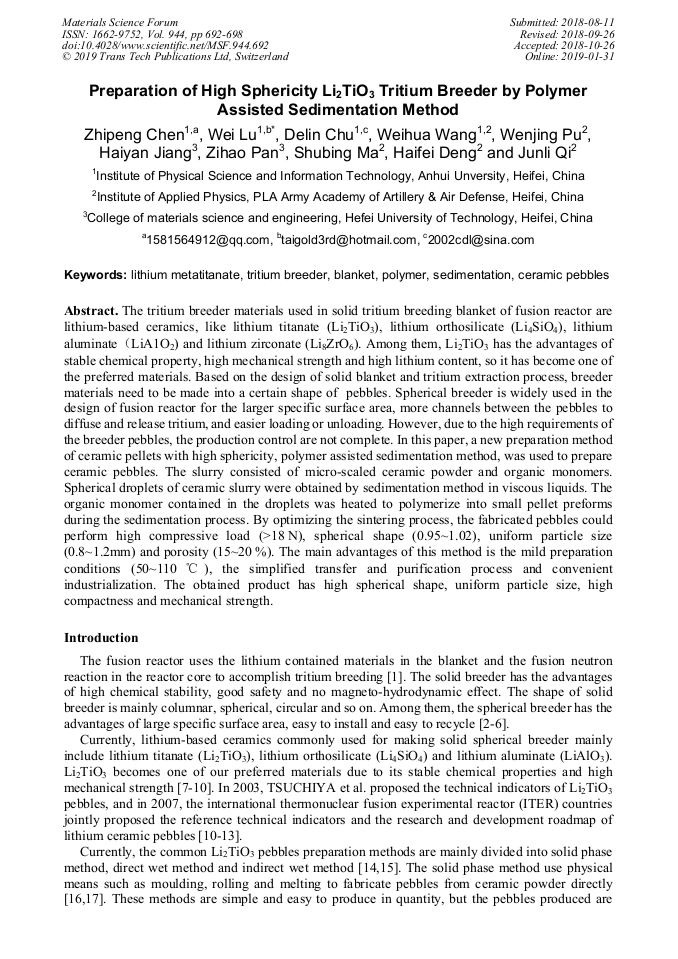

Abstract:

The tritium breeder materials used in solid tritium breeding blanket of fusion reactor are lithium-based ceramics, like lithium titanate (Li₂TiO₃), lithium orthosilicate (Li₄SiO₄), lithium aluminate（LiA1O₂) and lithium zirconate (Li₈ZrO₆). Among them, Li₂TiO₃ has the advantages of stable chemical property, high mechanical strength and high lithium content, so it has become one of the preferred materials. Based on the design of solid blanket and tritium extraction process, breeder materials need to be made into a certain shape of pebbles. B Spherical breeder is widely used in the design of fusion reactor for the larger specific surface area, more channels between the pebbles to diffuse and release tritium, and easier loading or unloading. However, due to the high requirements of the breeder pebbles, the production control are not complete. In this paper, a new preparation method of ceramic pellets with high sphericity, polymer assisted sedimentation method, was used to prepare ceramic pebbles. The slurry consists of micro-scaled ceramic powder and organic monomers. Spherical droplets of ceramic slurry were obtained by sedimentation method in viscous liquids. The organic monomer contained in the droplets was heated to polymerize into small pellet preforms during the sedimentation process. By optimizing the sintering process, the fabricated pebbles could perform high compressive load (>18 N), spherical shape (0.95~1.02), uniform particle size (0.8~1.2mm) and porosity (15~20 %). The main advantages of this method is the mild preparation conditions (50~110 °C), the simplified transfer and purification process and convenient industrialization.. The obtained product has high spherical shape, uniform particle size, high compactness and mechanical strength.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 692-698
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.692
• Online since: January 2019
• Authors: Chen Zhipeng, Wei Lu*, De Lin Chu, Wei Hua Wang, Wen Jing Pu, Hai Yan Jiang, Zi Hao Pan, Shu Bing Ma, Hai Fei Deng, Jun Li Qi
• Keywords: Blanket, Ceramic Pebbles, Lithium Metatitanate, Polymer, Sedimentation, Tritium Breeder

References

[1] W. Lu, W. Wang, H. Jiang, G. Zuo, B. Pan, W. Xu, D. Chu, J. Hu, J. Qi, Investigation of wetting property between liquid lead lithium alloy and several structural materials for Chinese DEMO reactor, J. Nucl. Mater. 494 (2017) 303-310.

DOI: 10.1016/j.jnucmat.2017.07.055

[2] O. Leys, T. Bergfeldt, M.H.H. Kolb, R. Knitter, A.A. Goraieb, The reprocessing of advanced mixed lithiumorthosilicate/metatitanate tritium breeder pebbles, Fusion Eng. Des. 107 (2016) 70-74.

DOI: 10.1016/j.fusengdes.2016.04.025

[3] K. Min, Y. Park, S. Cho, Synthesis of Li2TiO3 powder with high crystalline structure for tritium breeding material by ion-exchange process, Fusion Eng. Des. 109-111 (2016) 326-329.

DOI: 10.1016/j.fusengdes.2016.03.002

[4] K. Shin-mura, Y. Otani, S. Ogawa, E. Niwa, T. Hashimoto, T. Hoshino, K. Sasaki, Synthesis of high-purity Li8ZrO6 powder by solid state reaction under hydrogen atmosphere, Fusion Eng. Des. 109-111 (2016) 1739-1743.

DOI: 10.1016/j.fusengdes.2015.10.009

[5] M. Xiang, Y. Zhang, Y. Zhang, G. Li, J. Dong, Z. Wang, Preparation, performances and reaction mechanism of the Li4+xAlxSi1-xO4 pebbles for advanced tritium breeders, Fusion Eng. Des. 116 (2017) 17-23.

DOI: 10.1016/j.fusengdes.2017.01.020

[6] C.S. Zhang, A. Ying, M.A. Abdou, Y. Park, Ceramic breeder pebble bed packing stability under cyclic loads, Fusion Eng. Des. 109-111 (2016) 267-271.

DOI: 10.1016/j.fusengdes.2016.03.014

[7] W. Lu, J. Wang, W. Pu, K. Li, S. Ma, W. Wang, Sol-gel synthesis of lithium metatitanate as tritium breeding material under different sintering conditions, J. Nucl. Mater., 502 (2018) 349-355.

DOI: 10.1016/j.jnucmat.2018.02.014

[8] Y. Li, C. Xu, L. Li, X. Wang, L. Kong, Research progress on fabrication of Li2TiO3 solid tritium breeder materials. The Chinese Journal of Nonferrous Metal. 23 (2013) 182-190.

[9] T.V.V. Rao, Y.R. Bamankar, S.K. Mukerjee, S.K. Aggarwal, Preparation and characterization of Li2TiO3 pebbles by internal gelation sol-gel process, J. Nucl. Mater. 426 (2012) 102-108.

DOI: 10.1016/j.jnucmat.2012.03.003

[10] X. Wu, Z. Wen, J. Han, X. Xu, B. Lin, Fabrication of Li2TiO3 pebbles by water-based sol–gel method, Fusion Eng. Des. 83 (2008) 112-116.

DOI: 10.1016/j.fusengdes.2007.09.005

[11] H. Chen, L. Pan, Z. Lv, W. Li, Q. Zeng, Tritium fuel cycle modeling and tritium breeding analysis for CFETR, Fusion Eng. Des. 106 (2016) 17-20.

DOI: 10.1016/j.fusengdes.2016.02.100

[12] D. Mandal, M.R.K. Shenoi, S.K. Ghosh, Synthesis & fabrication of lithium-titanate pebbles for ITER breeding blanket by solid state reaction & spherodization, Fusion Eng. Des. 85 (2010) 819-823.

DOI: 10.1016/j.fusengdes.2010.06.018

[13] T. Hoshino, K. Kato, Y. Natori, F. Oikawa, N. Nakano, M. Nakamura, K. Sasaki, A. Suzuki, T. Terai, K. Tatenuma, Development of advanced tritium breeding material with added lithium for ITER-TBM, J. Nucl. Mater. 417 (2011) 684-687.

DOI: 10.1016/j.jnucmat.2010.12.128

[14] M.H.H. Kolb, R. Knitter, T. Hoshino, Li4SiO4 based breeder ceramics with Li2TiO3, LiAlO2 and LiXLaYTiO3 additions, part II: Pebble properties, Fusion Eng. Des. 115 (2016) 6-16.

DOI: 10.1016/j.fusengdes.2016.12.038

[15] M.H.H. Kolb, K. Mukai, R. Knitter, T. Hoshino, Li4SiO4 based breeder ceramics with Li2TiO3, LiAlO2 and LiXLaYTiO3 additions, part I: Fabrication, Fusion Eng. Des. 115 (2017) 39-48.

DOI: 10.1016/j.fusengdes.2016.12.033

[16] D. Mandal, D. Sathiyamoorthy, V.G. Rao, Preparation and characterization of lithium-titanate pebbles by solid-state reaction extrusion and spherodization techniques for fusion reactor, Fusion Eng. Des. 87 (2012) 7-12.

DOI: 10.1016/j.fusengdes.2011.08.006

[17] O. Leys, T. Bergfeldt, M.H.H. Kolb, R. Knitter, A.A. Goraie, The reprocessing of advanced mixed lithiumorthosilicate/metatitanate tritium breeder pebbles, Fusion Eng. Des. 107 (2016) 70-74.

DOI: 10.1016/j.fusengdes.2016.04.025

[18] R.L. Frano, D. Aquaro, L. Scaletti, Thermo-mechanical characterization of ceramic pebbles for breeding blanket, Fusion Eng. Des. 109-111 (2016) 383-388.

DOI: 10.1016/j.fusengdes.2016.02.094

[19] S.K. Sinha, S. Yadav, P.M. Raole, Sol-gel followed by urea-acetone spherodization for preparation of lithium titanate ceramics pebbles and preliminary characterization, Fusion Eng. Des. 113 (2016) 146-150.

DOI: 10.1016/j.fusengdes.2016.10.018

[20] T. Hoshino, Y. Edao, Y. Kawamura, K. Ochi, Pebble fabrication and tritium release properties of an advanced tritium breeder, Fusion Eng. Des. 109-111 (2016) 1114-1118.

DOI: 10.1016/j.fusengdes.2016.01.012

[21] Y. Park, K. Min, M. Ahn, S. Cho, Y. Lee, S. Park, R. Danish, C. Lim, Y. Jo, Optimization of mass-production conditions for tritium breeder pebbles based on slurry droplet wetting method, Fusion Eng. Des. 109-111 (2016) 443-447.

DOI: 10.1016/j.fusengdes.2016.02.084

[22] J.G. Van der Laan, H. Kawamura, N. Roux, D. Yamaki, Ceramic breeder research and development: progress and focus, J. Nucl. Mater. 283-287 (2000) 99-109.

DOI: 10.1016/s0022-3115(00)00352-4
