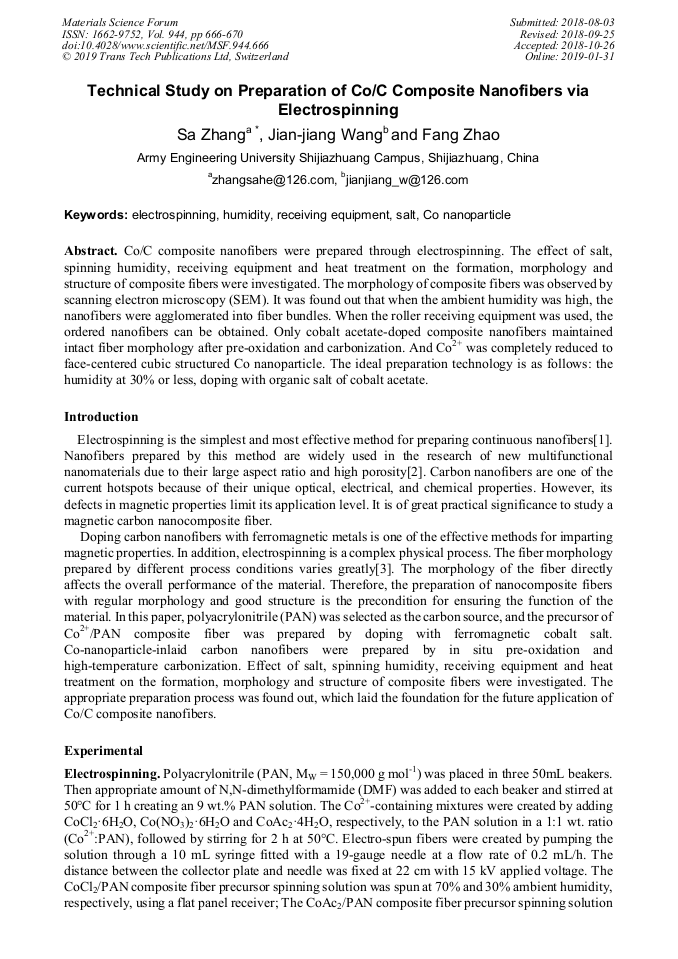

Technical Study on Preparation of Co/C Composite Nanofibers via Electrospinning

Abstract:

Co/C composite nanofibers are prepared through electrospinning. Effect of salt, Spinning humidity, receiving equipment and heat treatment on the formation, morphology and structure of composite fibers were investigated. The morphology of composite fibers was observed by scanning electron microscopy (SEM).It was found out that when the ambient humidity was high, the nanofibers were agglomerated into fiber bundles. When the roller receiving equipment was used, ordered nanofibers can be obtained. Only cobalt acetate-doped composite nanofibers maintained intact fiber morphology after pre-oxidation and carbonization. And Co²⁺ was completely reduced to face-centered cubic structured Co nanoparticle. The ideal preparation technology is as follows: the humidity at 30% or less, doping with organic salt of cobalt acetate.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 666-670
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.666
• Online since: January 2019
• Authors: Sa Zhang*, Jian Jiang Wang, Fang Zhao
• Keywords: Co Nanoparticle, Electrospinning, Humidity, Receiving Equipment, Salt

References

[1] Formhals A.Process and apparatus for preparing artificial threads, US: 1975504, 1934-10-02.

[2] Doshi J, Reneker D H, Electrospinning process and applications of electrospun fibers, J Electrostat, 1995, 35: 151-160.

DOI: 10.1016/0304-3886(95)00041-8

[3] Silke M, Jean S S, Chase D B, Micro- and Nanostructured Surface Morphology on Electrospun Polymer Fibers, Macromolecules, 2002, 35(22): 8456-8466.

DOI: 10.1021/ma020444a

[4] DEMIR M M, YILGOR I, YILGOR E, Electrospinning of Polyurethane Fibers, Polymer, 2002, 43(11): 3303-3309.

DOI: 10.1016/s0032-3861(02)00136-2

[5] THERONA S A, ZUSSMAN E,YARIN A L, Experimental Investigation of the Governing Parameters in the Electrospinning of Polymer Solutions, Polymer, 2004, 45(6): 2017-2030.

DOI: 10.1016/j.polymer.2004.01.024

[6] Huang L W, Nhu-Ngoc B, Seetha S, et al, Controlling electrospun nanofiber morphology and mechanical properties using humidity, polymer physics, 2011, 49(24): 1734–1744.

DOI: 10.1002/polb.22371

[7] Casper C L, Stephens J S, Tassi N G, et al, Controlling surface morphology of electrospun polystyrene fibers: effect of humidity and molecular weight in the electrospinning process, Macromolecules, 2004, 37(2): 573-578.

DOI: 10.1021/ma0351975

[8] Ke Peng, Jiao Xiaouiug, Ge Xiaohui, et alm, From macro to micro:structural biomimetic materials by electrospiuuiug, REC ADV, 2014, 4(75): 39704-39724.

DOI: 10.1039/c4ra05098c

[9] Fennessey S F, Farris R J, Fabrication of aligned and molecularly oriented electrospun polyacrylonitrile nanofibers and the mechanical behavior of their twisted yarns, Polymer, 2004, 45(12): 4217-4225.

DOI: 10.1016/j.polymer.2004.04.001

[10] Ganesh Kumar, Arumugam, Sourabh Khan, Patricia A Heiden, Comparison of the effects of an ionic liquid and other salts on the properties of electrospun fibers, 2-poly(vinyl alcohol), Macromol Mater Eng, 2010, 294(1): 45-53.

DOI: 10.1002/mame.200800199

[11] LI G M, ZHU B S, LIANG L P, et al, Core-shell Co3Fe7@C composite as efficient microwave absorbent, Acta Phys.-Chim. Sin. 2017, 33 (8), 1715-1720.

[12] JOSHUA P, JIANG RONGZHONG, Deryn CHU, PETER S. Fedkiw, Oxygen electroreduction on Fe-or Co-containing carbon fibers, Carbon, 2014, 79: 457-469.

DOI: 10.1016/j.carbon.2014.08.005
