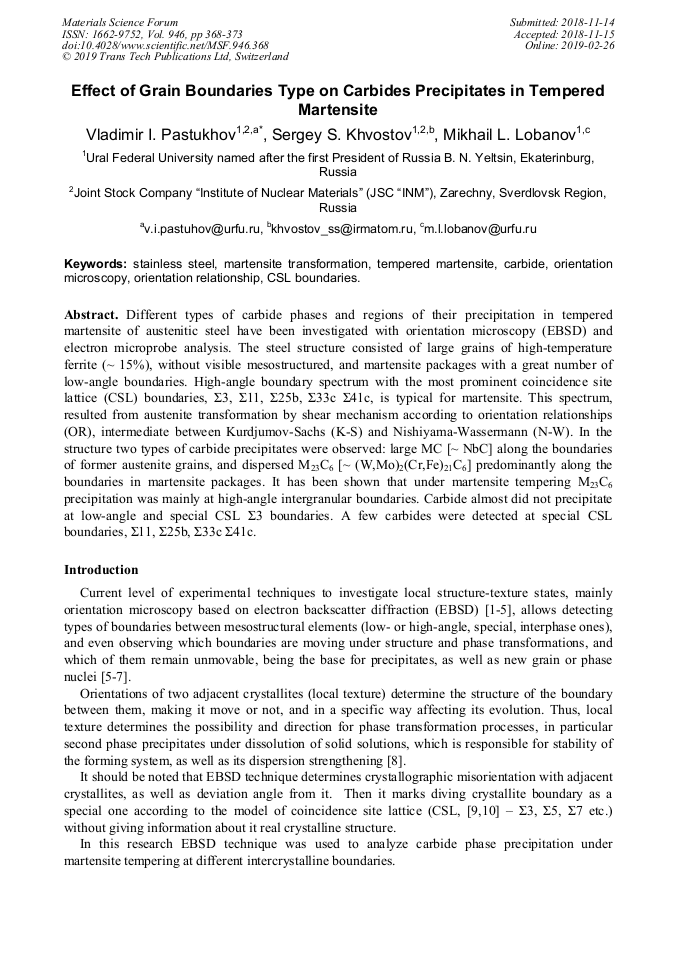

Effect of Grain Boundaries Type on Carbides Precipitates in Tempered Martensite

Abstract:

Different types of carbide phases and regions of their precipitation in tempered martensite of austenitic steel have been investigated with orientation microscopy (EBSD) and electron microprobe analysis. The steel structure consisted of large grains of high-temperature ferrite (~ 15%), without visible mesostructured, and martensite packages with a great number of low-angle boundaries. High-angle boundary spectrum with the most prominent coincidence site lattice (CSL) boundaries, Σ3, Σ11, Σ25b, Σ33с Σ41с, is typical for martensite. This spectrum, resulted from austenite transformation by shear mechanism according to orientation relationships (OR), intermediate between Kurdjumov-Sachs (K-S) and Nishiyama-Wassermann (N-W). In the structure two types of carbide precipitates were observed: large MC [~ NbC] along the boundaries of former austenite grains, and dispersed M₂₃C₆ [~ (W,Mo)₂(Cr,Fe)₂₁C₆] predominantly along the boundaries in martensite packages. It has been shown that under martensite tempering M₂₃C₆ precipitation was mainly at high-angle intergranular boundaries. Carbide almost did not precipitate at low-angle and special CSL Σ3 boundaries. A few carbides were detected at special CSL boundaries, Σ11, Σ25b, Σ33с Σ41с.

• Periodical: Materials Science Forum (Volume 946)
• Pages: 368-373
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.946.368
• Online since: February 2019
• Authors: Vladimir I. Pastukhov*, Sergey S. Khvostov, Mikhail L. Lobanov
• Keywords: Carbide, CSL Boundaries, Martensite Transformation, Orientation Microscopy, Orientation Relationship, Stainless Steel, Tempered Martensite

References

[1] T. Maitland, S. Sitzman, Electron backscatter diffraction (EBSD) technique and materials characterization examples, Springer, Berlin, (2007).

[2] B.A. Khorashadizadeh, D. Raabe, S. Zaefferer, G.S. Rohrer, A.D. Rollett, M. Winning, Five-Parameter Grain Boundary Analysis by 3D EBSD of an Ultra Fine Grained CuZr Alloy Processed by Equal Channel Angular Pressing, Adv. Eng. Mater. 13 (2011) 237-244.

DOI: 10.1002/adem.201000259

[3] S. Patala, J.K. Mason, K.A. Schuh, Improved representations of misorientation information for grain boundary science and engineering, Prog. Mater. Sci. 57 (2012) 1383–1425.

DOI: 10.1016/j.pmatsci.2012.04.002

[4] V.J. Araullo-Peters, B. Gault, S.L. Shrestha, L. Yao, M.P. Moody, S.P. Ringer, J.M. Cairney, Atom probe crystallography: Atomic-scale 3-D orientation mapping, Scripta. Mater. 66 (2012) 907–910.

DOI: 10.1016/j.scriptamat.2012.02.022

[5] I. Gutierrez-Urrutia, S. Zaefferer, D. Raabe, Coupling of Electron Channeling with EBSD: Toward the Quantitative Characterization of Deformation Structures in the SEM, JOM-US 65 (2013) 1229–1236.

DOI: 10.1007/s11837-013-0678-0

[6] М. L. Lobanov, S. V. Danilov, V. I. Pastukhov, S. A. Averin, Y. Y. Khrunyk, A. A. Popov, The crystallographic relationship of molybdenum textures after hot rolling and recrystallization, Mater. Design. 109 (2016) 251–255.

DOI: 10.1016/j.matdes.2016.06.103

[7] A.A. Redikul'tsev, M.L. Lobanov, G.M. Rusakov, L.V. Lobanova, Secondary recrystallization in Fe-3% Si alloy with (110)[001] single-component texture, Phys. Met. Metallogr. 114 (2013) 33–40.

DOI: 10.1134/s0031918x13010110

[8] J.W. Martin, R.D. Doherty, B. Cantor, Stability of microstructure in metallic systems, second ed., Cambridge University Press in Cambridge, New York, (1997).

[9] G. Gottstein, Physical Foundation of Materials Science, Springer, Berlin, (2004).

[10] Rollett A. et al., Recrystallization and Related Annealing Phenomena, second ed.. Elsevier Ltd, (2004).

[11] E.A. Little, L.P. Stoler, Microstructural stability of 10-12% Cr ferriticmartensitic steels irradiated in fast reactors, Effects of Irradiation on Materials: Eleventh Conference, ASTN STP 782, Eds. H.R. Brager and J.S. Perrin, Philadelphia (1982) 207–219.

DOI: 10.1520/stp34347s

[12] U.K. Bibilashvili, A.G. Ioltukhovsky, Y.I. Kazennov, M.V. Leont ́eva-Smirnova, N.A. Istishov,nV. P. Kondrat ́ev, 12 % chromium steels working characteristics with reference to the conditions of operating the core elements of reactors using lead and lead-bismuth coolants, Proceedings of the International Conference on Heavy Liquid Metal Coolants in Nuclear Technology (HLMC '99), Obninsk (1999) 737–745.

[13] A.A. Ivanov, C.V. Shulepin, A.M. Dvoryashin, Y.V. Konobeev, S.N. Ivanov, Y.V. Alekseev, S.I. Porollo, Structure and mechanical properties EP-823 steel, 12Cr-Mo-Nb and development type 12 % Cr containing steels after irradiation in reactor BN-350, in materials 9 Russian Conference from reactor materials science, Dimitrovgrad (2009) 60–74 (in Russian).

DOI: 10.1520/stp11249s

[14] D.A. Blokhin, V.M. Chernov, I.A. Blokhin, Nuclear physical properties of ferritic-martensitic steels EK-181 and EP-823 under neutron irradiation in fast reactor Brest-OD-300, Issues of Nuclear Science and Technology 85 (2015) 110–127 (in Russian).

DOI: 10.1134/s2075113311020067

[15] M.L. Lobanov, G.M. Rusakov, A.A. Redikultsev, S.V. Belikov, M.S. Karabanalov, E.R. Struina, A.M. Gervas'ev, Research of special boundaries in lath martensite of low-carbon steel by orientation microscopy, Phys. Met. Metallogr. 117 (2016) 254–259.

DOI: 10.1134/s0031918x1603008x

[16] A.I. Stepanov, I.N. Ashikhmina, K.I. Sergeeva, S.V. Belikov, S.A. Musikhin, M.S. Karabanalov, A.A. Al-Katawi, Structure and Properties of Low-Alloy Cr–Mo–V Steel after Austenitization in the Intercritical Temperature Range, Steel. 6 (2014) 86–90.

DOI: 10.3103/s0967091214060151

[17] M.L. Lobanov, M.D. Borodina, S.V. Danilov, I.Yu. Pyshmintsev, A.O. Struin, Textural Heredity at Phase Transformations in Low-Carbon Low-Alloy Pipe Steel after Controlled Thermomechanical Processing, Steel in Translation 47 (2017) 710–716.

DOI: 10.3103/s0967091217110055

[18] Yu.G. Andreev, E.I. Zaykova, M.A. Shtremel, Borders and lineage boundary in batch martensite. Physics of Metals and Metallography. 3 (1990) 161–167. (In Russ.).

[19] V.M. Schastlivtsev, L.B. Blindt, L.B. Rodionov, I.D. Yakovleva, The structure of the batch martensite in structural steels, Phys. Met. Metallogr. 66 (1988) 759–769.

[20] N. Nakada, H. Ito, Y. Matsuoka, T. Tsuchiyama, S. Takaki, Deformation-induced martensitic transformation behavior in cold-rolled and cold-drawn type 316 stainless steels, Acta Materialia 58 (2010) 895-903.

DOI: 10.1016/j.actamat.2009.10.004

[21] I.Yu. Pyshmintsev, A.O. Struin, A.M. Gervasyev, M.L. Lobanov, G.M. Rusakov, S.V. Danilov, A.B. Arabey, Effect of bainite crystallographic texture on failure of pipe steel sheets made by controlled thermomechanical treatment, Metallurgist 60 (2016) 405–412.

DOI: 10.1007/s11015-016-0306-7
