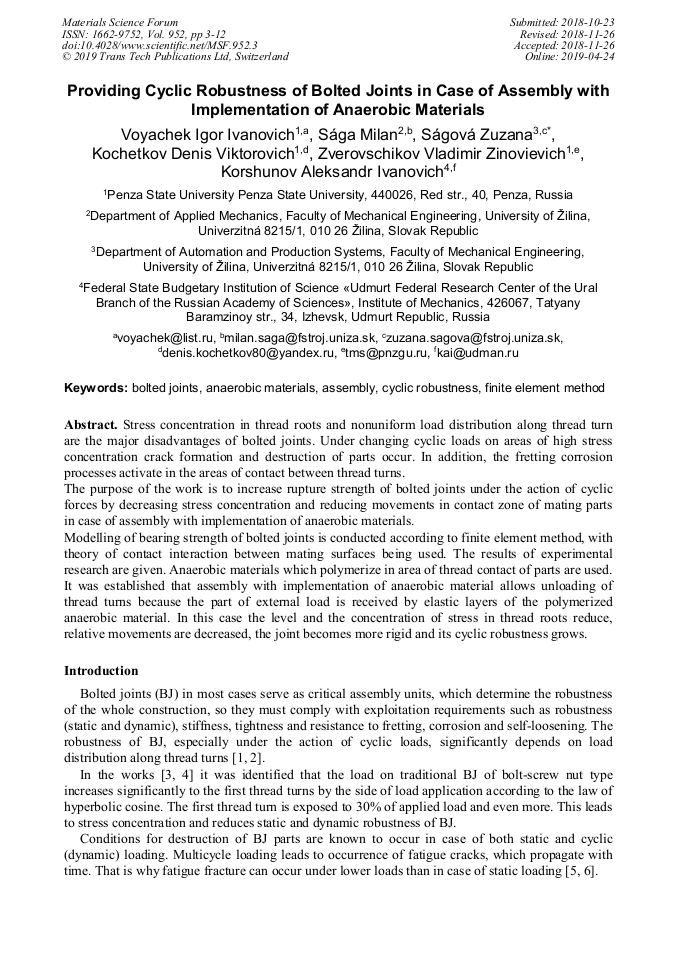

Providing Cyclic Robustness of Bolted Joints in Case of Assembly with Implementation of Anaerobic Materials

Abstract:

Stress concentration in thread roots and nonuniform load distribution along thread turn are the major disadvantages of bolted joints. Under changing cyclic loads on areas of high stress concentration crack formation and destruction of parts occur. In addition, the fretting corrosion processes activate in the areas of contact between thread turns. The purpose of the work is to increase rupture strength of bolted joints under the action of cyclic forces by decreasing stress concentration and reducing movements in contact zone of mating parts in case of assembly with implementation of anaerobic materials. Modelling of bearing strength of bolted joints is conducted according to finite element method, with theory of contact interaction between mating surfaces being used. The results of experimental research are given. Anaerobic materials which polymerize in area of thread contact of parts are used. It was established that assembly with implementation of anaerobic material allows unloading of thread turns because the part of external load is received by elastic layers of the polymerized anaerobic material. In this case the level and the concentration of stress in thread roots reduce, relative movements are decreased, the joint becomes more rigid and its cyclic robustness grows.

• Periodical: Materials Science Forum (Volume 952)
• Pages: 3-12
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.952.3
• Online since: April 2019
• Authors: Igor Ivanovich Voyachek, Milan Sága, Zuzana Ságová*, Denis Viktorovich Kochetkov, Vladimir Zinovievich Zverovschikov, Aleksandr Ivanovich Korshunov
• Keywords: Anaerobic Materials, Assembly, Bolted Joints, Cyclic Robustness, Finite Element Method (FEM)

References

[1] I.A. Birger, G.B. Iosilevich, Threaded and flanged connections, Mashinostroenie, Moscow, 1990, 368 p.

[2] I.A. Birger et al., Machine Part Strength Calculation: reference book / I.A. Birger, B.F. Shorr, G.B. Iosilevich, fourth ed., rev. and add., Mashinostroenie, Moscow, 1993, 640 p.

[3] V.I. Anurev, Reference book for designer-mechanical engineer: In 3 v. V.2., eight ed., rev. and add., Ed. I.N. Zhestkova, Mashinostroenie, Moscow, 2001, 912 p.

[4] M.N. Ivanov, Machine Parts: Textbook for High Schools, fifth ed., rev., Vysshaya shkola, Moscow, 1991, 383 p.

[5] I.I. Voyachek, Integrated design of fixed couplings: monograph / I.I. Voyachek, Penza State University, Penza, 2006, 208 p.

[6] L.A. Andrienko, Machine parts: Textbook for universities / L.A. Andrienko, B.A. Baikov, I.K. Ganulich et al., Ed. O.A. Ryakhovsky, Bauman University Publishing House, Moscow, 2002, 544 p.

[7] A.I. Yakushev, R.Kh. Mustaev, R.R. Mavlyutov, Increasing the strength and reliability of threaded joints, Mashinostroenie, Moscow, 1979, 215 p.

[8] S.Ya. Berezin, Quality management of threaded connections / S.Ya. Berezin, R.E. Chumakov // Assembling in Mechanical Engineering and Instrument-Making 11 (2005) 37–41.

[9] V.V. Dunaev, Improving the life and sealing of bolt joints in aircraft. / V.V. Dunaev, A.A. Shirshov // Russian Engineering Research 12 (2009) 33–39.

DOI: 10.3103/s1068798x09120016

[10] G.B. Iosilevich, Concentration of stresses and deformations in machine parts, Mashinostroenie, Moscow, 1981, 224 p.

[11] A.M. Yasin, Technological provision of fretting resistance of threaded joints: Dissert. Cand. tech. sciences, Penza, 2002, 143 p.

[12] A.N. Prokofiev, Advanced technological methods to improve the quality of threaded connections. J., Handbook. An engineering Journal,, Mashinostroenie, Moscow 2 35 (2000) 9–12.

[13] I.I. Voyachek, Assembly of threaded joints using anaerobic materials / I.I. Voyachek // Assembling in Mechanical Engineering and Instrument-Making 10 (2003) 24–26.

[14] I.I. Voyachek, Improvement of the functional characteristics of threaded joints when assembling with anaerobic materials / I.I. Voyachek, D.V. Kochetkov // Assembling in Mechanical Engineering and Instrument-Making 6 (2009) 37–40.

[15] A.S. Ivanov, Improving the method of calculation and design of threaded joints, loaded with tearing force and overturning moment / А.S. Ivanov, D.N. Reshetov // Russian Engineering Research 4 (2001) 30–36.

[16] S.Ya. Berezin, Elastic simulators in a solution of a Joukovski problem / S.Ya. Berezin, V.N. Leonov // Assembling in Mechanical Engineering and Instrument-Making 4 (2007) 23–27.

[17] N.N. Zorev, Patterns of distribution of tensile load along thread turns of a bolted joint / N.N. Zorev, Yu.S. Safarov, V.K. Safarov // Bulletin of mechanical engineering 12 (1973) 10–14.

[18] I.I. Voyachek, Patent for invention, No. 2413099, The method of obtaining a threaded connection / I.I. Voyachek, I.I. Artyomov, D.V. Kochetkov, L.G. Voyachek, A.V. Trazanov: Application No. 2009145324, Priority of the invention December 7, 2009, Registered in the State Register of Inventions of the Russian Federation on February 27, (2011).

[19] A.G. Suslov, Technological support and improve operational properties of machine elements and their compounds / A.G. Suslov, V.P. Fedorov, O.A. Gorlenko et al. / under general editorship of A.G. Suslov, Mashinostroenie, Moscow, 2006, 448 p.

[20] N.E. Kurnosov, Ensuring the quality of fixed connections: monograph / N.E. Kurnosov, Penza State University, Penza, 2001, 219 p.

[21] Fabian, M., Boslai, R., Ižol, P., Janeková, J., Fabianová, J., Fedorko, G., and Božek, P. (2015). Use of parametric 3D modelling - tying parameter values to spreadsheets at designing molds for plastic injection. Manufacturing Technology 2015 (15) 24-31.

DOI: 10.21062/ujep/x.2015/a/1213-2489/mt/15/1/24

[22] A.D. Zakharchenko, Fatigue strength of riveted and bolted joints of aircraft structures / A.D. Zakharchenko // Assembly in mechanical engineering, instrument making 4 (2004) 19–20.

[23] I.I. Voyachek, The application of anaerobic materials in assembling fixed joints type shaft – bushing / I.I. Voyachek // Assembling in Mechanical Engineering and Instrument-Making 9 (2003) 33–37.
