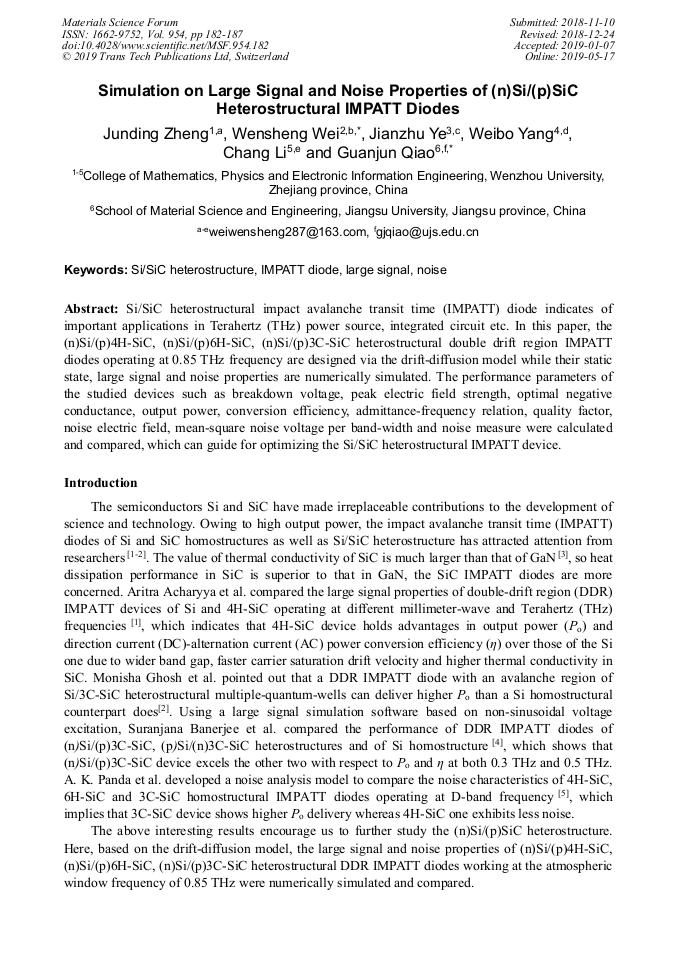

Simulation on Large Signal and Noise Properties of (n)Si/(p)SiC Heterostructural IMPATT Diodes

Abstract:

Si/SiC heterostructural impact avalanche transit time (IMPATT) diode indicates of important applications in Terahertz (THz) power source, integrated circuit etc. In this paper, the (n)Si/(p)4H-SiC, (n)Si/(p)6H-SiC, (n)Si/(p)3C-SiC heterostructural double drift region IMPATT diodes operating at the atmospheric window frequency of 0.85 THz are designed by the drift-diffusion model while their static state, large signal and noise properties are numerically simulated. The performance parameters of the studied devices such as breakdown voltage, peak electric field strength, optimal negative conductance, output power, power conversion efficiency, admittance-frequency relation, quality factor, noise electric field, mean-square noise voltage per band-width and noise measure were calculated and compared. This method can guide for optimizing the Si/SiC heterostructural IMPATT device in the future.

• Periodical: Materials Science Forum (Volume 954)
• Pages: 182-187
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.954.182
• Online since: May 2019
• Authors: Jun Ding Zheng, Wen Sheng Wei*, Jian Zhu Ye, Wei Bo Yang, Chang Li, Guan Jun Qiao
• Keywords: IMPATT Diode, Large Signal, Noise, Si/SiC Heterostructure

References

[1] A. Acharyya, J. Goswami, S. Banerjee, J. P. Banerjee, Quantum corrected drift-diffusion model for Terahertz IMPATTs based on different semiconductors, Journal of Computational Electronics. 14.1 (2015) 309-320.

DOI: 10.1007/s10825-014-0658-9

[2] M. Ghosh, S. Ghosh, A. Acharyya, Self-consistent quantum drift-diffusion model for multiple quantum well IMPATT diodes, Journal of Computational Electronics. 15.4 (2016) 1370-1387.

DOI: 10.1007/s10825-016-0894-2

[3] Information on.http://www.ioffe.rssi.ru/SVA/NSM/Semicond/index.html.

[4] S. Banerjee, M. Mitra, A. Acharyya, M. Mitra, J. P. Banerjee, Large-signal properties of 3C-SiC/Si heterojunction DDR IMPATT devices at Terahertz frequencies, PIERS Proceedings. Stockholm, Sweden, (2013) 462-467.

[5] A. K. Panda, V. Malleswara Rao, Modeling and comparative study on the high frequency and noise characteristics of different polytypes of SiC-based IMPATTs, 2009 Asia Pacific Microwave Conference, Singapore, Singapore, (2009) 1569-1572.

DOI: 10.1109/apmc.2009.5384396

[6] S. M. Sze, Kwok K. NG, Physics of semiconductor devices, 3rd ed. New York: Wiley, 2007, Chapter 9.

[7] P. R. Tripathy, M. Mukherjee, S. K. Choudhury, Ge/Si Based DDR IMPATTs: A potential millimeter-wave source at 140 GHz atmospheric window, Advanced Science Letters. 20.3 (2014) 846-849.

DOI: 10.1166/asl.2014.5381

[8] A. M. Zemliak, S. Cabrera, Numerical analysis of a DAR IMPATT diode, Journal of Computational Electronics. 5.4 (2006) 401-404.

DOI: 10.1007/s10825-006-0033-6

[9] Junding Zheng, Simulation on performance of SiC-based IMPATT diodes, Master's Thesis at Wenzhou University, (2018).

[10] G. N. Dash, J. K. Mishra, A. K. Panda, Noise in mixed tunneling avalanche transit time (MITATT) diodes, Solid-State Electronics. 39.10 (1996) 1473-1479.

DOI: 10.1016/0038-1101(96)00054-8

[11] B. Xiaochuan, U. Ravaioli, G. I. Haddad, Analysis and design of Si Terahertz transit time diodes, Solid-State Electronics, 50.5 (2006) 889-896.

DOI: 10.1016/j.sse.2006.04.007

[12] H. K. Gummel, J. L. Blue, A small-signal theory of avalanche noise in IMPATT diodes, IEEE Transactions on Electron Devices. 14.9 (1967) 569-580.

DOI: 10.1109/t-ed.1967.16005

[13] J. K. Mishra, G. N. Dash, S. R. Pattanaik, I. P. Mishra, Computer simulation study on the noise and millimeter wave properties of InP/GaInAs heterojunction double avalanche region IMPATT diode, Solid-State Electronics. 48.3 (2004) 401-408.

DOI: 10.1016/j.sse.2003.07.005
