A Monolithic 500°C D-Flip Flop Realized in Bipolar 4H-SiC TTL Technology

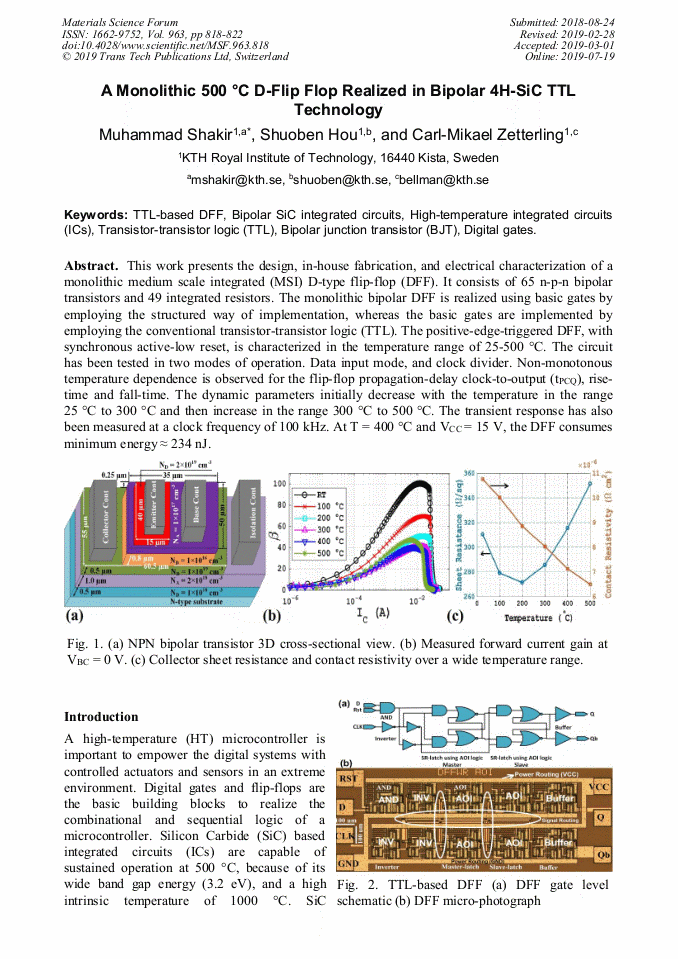

Abstract:

This work presents the design, in-house fabrication, and electrical characterization of a monolithic medium scale integrated (MSI) D-type flip-flop (DFF). It consists of 65 n-p-n bipolar transistors and 49 integrated resistors. The monolithic bipolar DFF is realized using basic gates by employing the structured way of implementation, whereas the basic gates are implemented by employing the conventional transistor-transistor logic (TTL). The positive-edge-triggered DFF, with synchronous active-low reset is characterized in the temperature range of 25-500 °C. The circuit has been tested in two modes of operation; data input mode and clock divider. Non-monotonous temperature dependence is observed for the flip-flop propagation-delay clock-to-output (t_PCQ), rise-time and fall-time; decreases with the temperature in the range 25 °C to 300 °C, while it increases in the range 300 °C to 500 °C. The transient response has also been measured at a clock frequency of 100 kHz. At T = 400 °C and V_CC = 15 V, the DFF consumes minimum energy ≈ 234 nJ.

• Periodical: Materials Science Forum (Volume 963)
• Pages: 818-822
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.963.818
• Online since: July 2019
• Authors: Muhammad Shakir*, Shuo Ben Hou, Carl Mikael Zetterling
• Keywords: Bipolar Junction Transistor (BJT), Bipolar SiC Integrated Circuits, Digital Gates, High Temperature Integrated Circuits (ICs), Transistor-Transistor Logic (TTL), TTL-Based DFF

References

[1] C. M. Zetterling. Integrated circuits in silicon carbide for high-temperature applications. MRS Bulletin, 40(5):431-438, (2015).

DOI: 10.1557/mrs.2015.90

[2] P. G. Neudeck, D. J. Spry, L. Chen, N. F. Prokop, and M. J. Krasowski. Demonstration of 4H- SiC digital integrated circuits above 800 °C. IEEE Elec. Device Lett., 38(8):1082–1085, Aug (2017).

DOI: 10.1109/led.2017.2719280

[3] R. Hedayati, L. Lanni, M. Shakir, A. Salemi, and C. M. Zetterling. High temperature bipolar master-slave comparator and frequency divider in 4H-SiC technology. In MSF 2016, pages 1–1, Sept (2016).

DOI: 10.4028/www.scientific.net/msf.897.681

[4] A. M. Francis, J. Holmes, N. Chiolino, M. Barlow, Affan Abbasi, and H. Alan Mantooth. High-temperature operation of silicon carbide CMOS circuits for Venus Surface application. Additional Conf. (Device Packaging, HiTEC, HiTEN, & CICMT), 2016(HiTEC):000242–000248, (2016).

DOI: 10.4071/2016-hitec-242

[5] M. Alexandru, V. Banu, X. Jorda, J. Montserrat, M. Vellvehi, D. Tournier, J. Millan, and P. Godignon. SiC integrated circuit control electronics for high-temperature operation. IEEE Transactions on Industrial Electronics, 62(5):3182–3191, May (2015).

DOI: 10.1109/tie.2014.2379212

[6] M. Shakir, H. Elahipanah, R. Hedayati and C. M. Zetterling. Electrical Characterization of Integrated 2-input TTL NAND Gate at Elevated Temperature, Fabricated in Bipolar SiC- Technology. In Silicon Carbide and Related Materials 2017, volume 924 of Materials Science Forum, pages 958–961. Trans Tech Publications, July (2018).

DOI: 10.4028/www.scientific.net/msf.924.958

[7] L. Lanni, R. Ghandi, B. G. Malm, C-M. Zetterling, and M. Östling. Design and characterization of high-temperature ECL-Based bipolar integrated circuits in 4H-SiC. IEEE Transactions on Electron Devices, 59(4):1076–1083, April 2012. ISSN 0018-9383.

DOI: 10.1109/ted.2011.2182514

[8] M. Shakir, S. Hou, B. G. Malm, M. Östling and C. Zetterling, A 600 °C TTL-Based 11-Stage Ring Oscillator in Bipolar Silicon Carbide Technology,, in IEEE Electron Device Letters, vol. 39, no. 10, pp.1540-1543, Oct. 2018.

DOI: 10.1109/LED.2018.2864338
