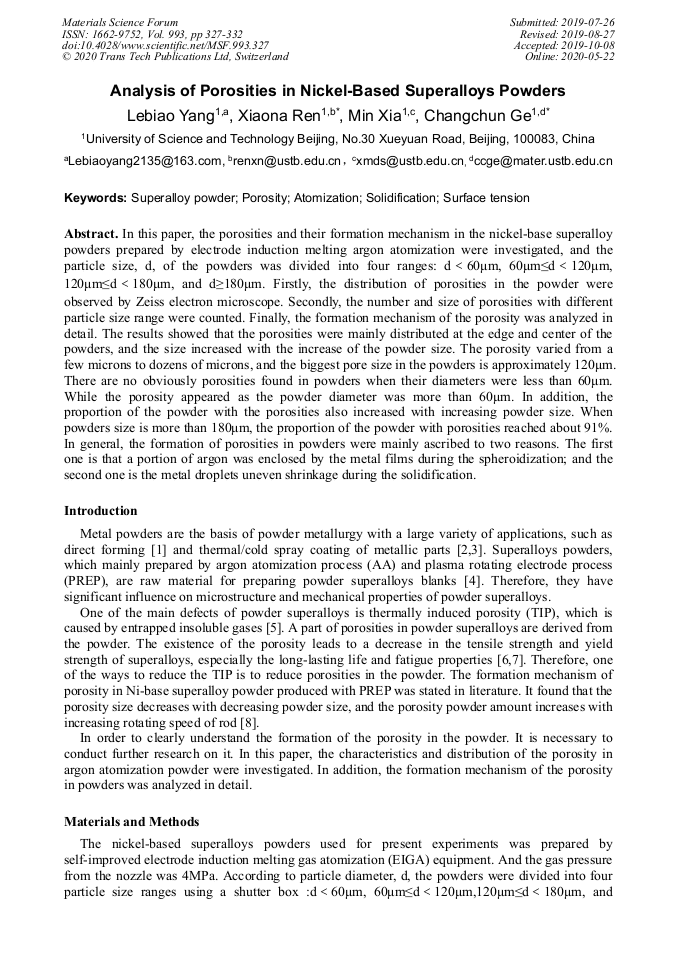

Analysis of Porosities in Nickel-Based Superalloys Powders

Abstract:

In this paper, we investigated the porosities and their formation mechanism in the nickel-base superalloy powders, which were prepared by electrode induction melting argon atomization and divided into four particle size ranges: d＜60μm, 60μm≤d＜120μm,120μm≤d＜180μm, and d≥180μm. Firstly, the distribution of porosities in the powder were observed by Zeiss electron microscope. Secondly, the number and size of porosities in different particle size range were counted. Finally, the formation mechanism of the porosity was analyzed in details. The results show that the porosities are mainly distributed at the edge and center of the powders, and the size increases with the increase of the powder size. the porosity varies from a few microns to dozens of microns. the biggest pore size in the powder is approximately 120μm.There are no obviously porosities found in powders when their diameters are less than 60μm. While the porosity appeared as the powder diameter is more than 60μm. In addition, the proportion of the powder with porosities also increases with increasing powder size. When powders size is more than 180μm, the proportion of the powder with porosities reached about 91%. In general, the formation of porosities in powders are mainly ascribed to two reasons. the first one is a portion of argon was enclosed by the metal films during the spheroidization; the second one is the metal droplets uneven shrinkage during the solidification.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 327-332
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.327
• Online since: May 2020
• Authors: Le Biao Yang*, Xiao Na Ren, Min Xia, Chang Chun Ge
• Keywords: Atomization, Porosity, Solidification, Superalloys Powders, Surface Tension

References

[1] Caiazzo F., Laser-aided Directed Metal Deposition of Ni-based superalloy powder[J]. Opt. Laser Technol., 2018, 103:193-198.

DOI: 10.1016/j.optlastec.2018.01.042

[2] Huang P K, Yeh J W, Shun T T, et al., Multi-Principal-Element Alloys with Improved Oxidation and Wear Resistance for Thermal Spray Coating[J]. Adv. Eng. Mater., 2004, 6(1-2):74-78.

DOI: 10.1002/adem.200300507

[3] Kim H J, Lee C H, Hwang S Y., Super hard nano WC-12%Co coating by cold spray deposition[J]. Mater. Sci. Eng. A, 2005, 391(1):243-248.

DOI: 10.1016/j.msea.2004.08.082

[4] Han Zhiyu, Zeng Guang, Liang Shujin, Chen Xiaolin, Zhang Peng, Zhang Pingxiang. Development in Powder Production Technology of Ni-Based Superalloy [J]. Mater. China, 2014, 33(12):748-755.

[5] Dreshfield R L, Miner Jr R V. Effects of thermally induced porosity on an as-HIP powder metallurgy superalloy[J]. (1980).

[6] Miner R V, Dreshfield R L. Effects of fine porosity on the fatigue behavior of a powder metallurgy superalloy[J]. Metall. Trans. A, 1981, 12(2): 261.

DOI: 10.1007/bf02655199

[7] Zhang Guoxing, Han Shoubo, Sun Zhikun. Effects of thermal induced porosity on mechanical properties of PM superalloy [J].Powder Metall. Ind., 2015, 25(1): 42-45.

[8] Zhang Yiwen. Investigation of Porosity in Superalloy Powder [J]. J. Iron Steel Res. Int., 2002, 14(3): 73-76.

[9] Zeoli N, Tabbara H , Gu S, CFD modeling of primary breakup during metal powder atomization[J]. Chem. Eng. Sci., 2011, 66(24): 6498-6504.

DOI: 10.1016/j.ces.2011.09.014

[10] Zhao Wenjun. Study on the Gas Flow Filed in Spray Deposition and the Breakup Mechanism.

[11] Li X G , Fritsching U., Process Modeling Pressure-Swirl-Gas-Atomization for Metal Powder Production[J]. J. Mater. Process. Technol., 2016, 239: 1-17.

DOI: 10.1016/j.jmatprotec.2016.08.009

[12] Yan Jingliu. The Cause of Liquid Surface Tension and Its Changing with Temperature[J]. J. Guangxi Normal Univ. Nationalities, 2003,20(4): 73-75.

[13] Chen Jianwen, Zhang Zhiwei, Wang Changzhou, Song Jinchun. Effects of Fluid Viscosity and Surface Tension on the Size of Atomized Droplets [J]. J. Northeast. Univ., (Nat. Sci.), 2010, 31(7).
