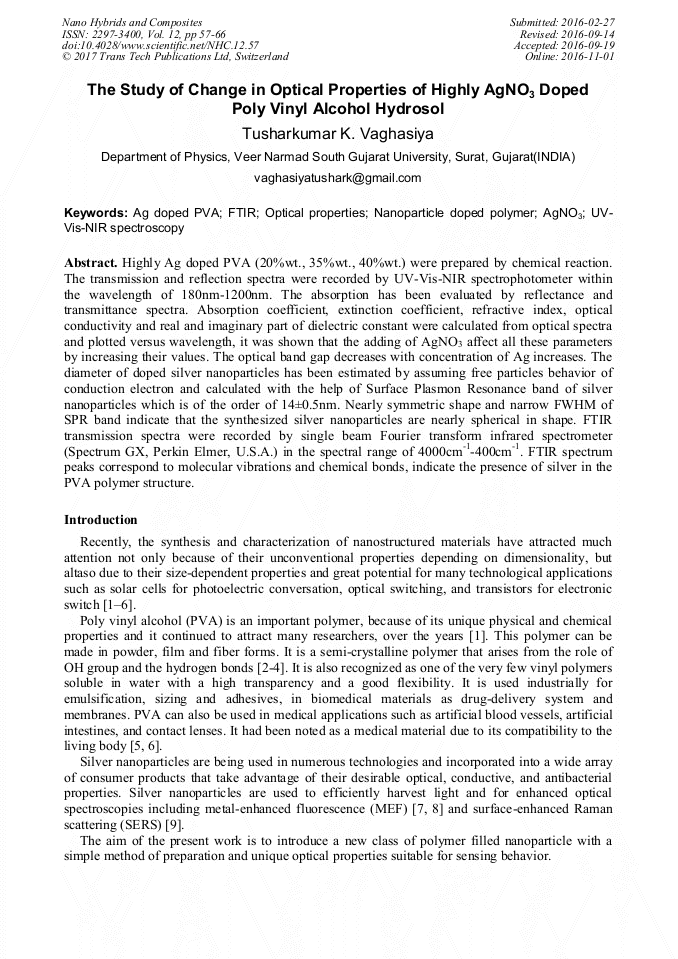

The Study of Change in Optical Properties of Highly AgNO₃ Doped Poly Vinyl Alcohol Hydrosol

Abstract:

Highly Ag doped PVA (20%wt., 35%wt., 40%wt.) were prepared by chemical reaction. The transmission and reflection spectra were recorded by UV-Vis-NIR spectrophotometer within the wavelength of 180nm-1200nm. The absorption has been evaluated by reflectance and transmittance spectra. Absorption coefficient, extinction coefficient, refractive index, optical conductivity and real and imaginary part of dielectric constant were calculated from optical spectra and plotted versus wavelength, it was shown that the adding of AgNO₃ affect all these parameters by increasing their values. The optical band gap decreases with concentration of Ag increases. The diameter of doped silver nanoparticles has been estimated by assuming free particles behavior of conduction electron and calculated with the help of Surface Plasmon Resonance band of silver nanoparticles which is of the order of 14±0.5nm. Nearly symmetric shape and narrow FWHM of SPR band indicate that the synthesized silver nanoparticles are nearly spherical in shape. FTIR transmission spectra were recorded by single beam Fourier transform infrared spectrometer (Spectrum GX, Perkin Elmer, U.S.A.) in the spectral range of 4000 cm^-1-400 cm^-1. FTIR spectrum peaks correspond to molecular vibrations and chemical bonds, indicate the presence of silver in the PVA polymer structure.

• Periodical: Nano Hybrids and Composites (Volume 12)
• Pages: 57-66
• DOI: https://doi.org/10.4028/www.scientific.net/NHC.12.57
• Online since: November 2016
• Authors: Tusharkumar K. Vaghasiya*
• Keywords: Ag Doped PVA, AgNO₃, FTIR, Nanoparticle Doped Polymer, Optical Properties, UV-vis-NIR Spectroscopy

References

[1] ZhaoH, DouglasEP. Chem. Mater. 2003; 14: 1418.

[2] ChenL, ZhuJ, LiQ, Chen S, Wang Y. Eur. Polym. J. 2007; 106: 443.

[3] KimJY, KimHM, ShinDH, IhnKJ. Macromol. Chem. Phys. 2006; 207: 925.

[4] PardhanB, SharmaAK, Ray AK. J. Cryst. Growth2007; 304: 388.

[5] PattabiM, AmmaBS, ManzoorK, SanjeevG. Sol. Eng. Mater. Sol. Cell2007; 91: 1403.

[6] WangH, FangP, ChenZ, WangS. Appl. Surf. Sci. 2007; 253: 8495.

[7] Bondre N, ZhangY, GeddesCD. Sensors andActuatorsB: Chemical2011; 152: 82-87.

[8] PribikR, DraganAI, ZhangY, GaydosC, GeddesCD. ChemicalPhysicsLetters009; 478: 70-74.

[9] ZhuY, DluhyRA, ZhaoY. Sensors andActuatorsB: Chemical2011; 157: 42-50.

[10] Tawansi A, Oraby AH, Zidan HM, Dorgham ME. Physica B 1998; 254: 126-133.

[11] Tawansi A, El-KhodaryA, Abdelnaby MM. Current Appl. Phys. 2005; 5: 572.

[12] Paul DR, Robeson LM. Polymer 2008; 49: 3187–3204.

[13] Karthikeyan B. Physica B 2005; 364: 328–332.

[14] Mbhele ZH, Salemane MG, van Sittert CGCE, Nedeljkovic JM, Djokovic V, Luyt AS. Chem. Mater. 2003; 15: 5019–5024.

DOI: 10.1021/cm034505a

[15] Krkljes A, Nedeljkovic JM, Kacarevic-Popovic ZM. Polym. Bull. 2007; 58: 271–279.

[16] Aleksandra NK, Milena TM, Zorica MK, Nedeljkovic JM. European Polymer Journal 2007; 43: 2171–2176.

[17] ThutupalliGKM, TomlinSG. J. PhysDAppl. Phys. 1976; 9: 1639-1646.

[18] Tawansi A, El-Khodary A, Abdelnaby MM. Current Appl. Phys. 2005; 5: 572.

[19] Davis PW, ShillidayTS. Phys. Rev. 1960; 118: 1020-1022.

[20] AbdelghanyAM, ElBatalHA, MariL. RadiationEffectsand Defects in Solids 2012; 167(1): 49-58.

[21] Paul DR, Robeson LM. Polymer 2008; 49: 3187–3204.

[22] MahshadGhanipour, DavoudDorranian. Journal of Nanomaterials Volume 2013, Article ID 897043.

[23] EM Abdelrazek, Abdelghany AM, Tarabih AE. Research Journal of Pharmaceutical, Biological and Chemical Sciences, vol. 3 issue 4, pg no. 448-459.

[24] Sami S. Chiad, SaadF. Oboudi, Khalid H. Abass, Nadir F. Habubi. Iraqi J. of Polymers Vol. 16 , No. 2, 10-18 , (2012).

[25] J. Tauc, A. Meneth, States in the gap, J. Non-Cryst. Solid, 8-10, 569-585, (1972).

[26] Davis PW, Shilliday TS. Phys Rev 1960; 118: 1020-1022.

[27] Abdelghany AM, ElBatal HA, MariL. Radiation Effects and Defects in Solids 2012; 167(1): 49-58.

[28] Abdelrazek EM, ElDamrawi G, Al-Shahawy A. Physica B 2010; 405: 808–816.

[29] MahshadGhanipour, DavoudDorranian. Journal of Nanomaterials, Volume 2013, Article ID 897043, 10 pages.

[30] A. NimrodhAnanth and S. Umapathy, Applied Nanoscience, vol. 1, no. 2, p.87–96, (2011).

[31] C.U. Devi A.K. Sharma, and V.V.R.N. Rao, Materials Letters, vol. 56, no. 3, p.167–174, (2002).

[32] J. Rozra, I. Saini, A. Sharma et al., Materi- als Chemistry and Physics, vol. 134, no. 2-3, p.1121–1126, (2012).

[33] M. Abdelaziz, Physica B, vol. 406, no. 6-7, p.1300–1307, (2011).

[34] G. A. Gaddy, J. L. McLain, E. S. Steigerwalt, R. Broughton, B. L. Slaten, G. Mills. Journal of Cluster Science, Vol. 12, No. 3, September 2001. 457-471.

DOI: 10.1023/a:1012827413518

[35] N. Singh and P.K. Khanna, Materials Chemistry and Physics, vol. 104, no. 2-3, p.367–372, (2007).

[36] P. K. Khanna, R. Gokhale, V. V. V. S. Subbarao, A. K. Vishwanath, B. K. Das, and C. V. V. Satyanarayana, Materials Chemistry and Physics, vol. 92, no. 1, p.229–233, (2005).

DOI: 10.1016/j.matchemphys.2005.01.016

[37] J. D. Jackson, Classical Electrodynamics, 3rd edition, John Wiley & Sons, (1999).

[38] C. Kittle, Introduction to Solid State Physics, vol. 405, John Wiley & Sons, New York, NY, USA, (1971).

[39] U. Keirbeg, M. Vollmer, Optical Properties of Metal Clusters, Springer Series in Material Science, vol. 25, Springer-Verlag, Berlin, (1995).

[40] A. Heilman, Polymer Films with Embedded Metal Nanoparticles, Springer-Verlag, Berlin, Heidelberg, (2003).
