Fabrication of 100nm Sized Patterns on a Non-Planar Substrate by Using Nanoimprinting Lithography

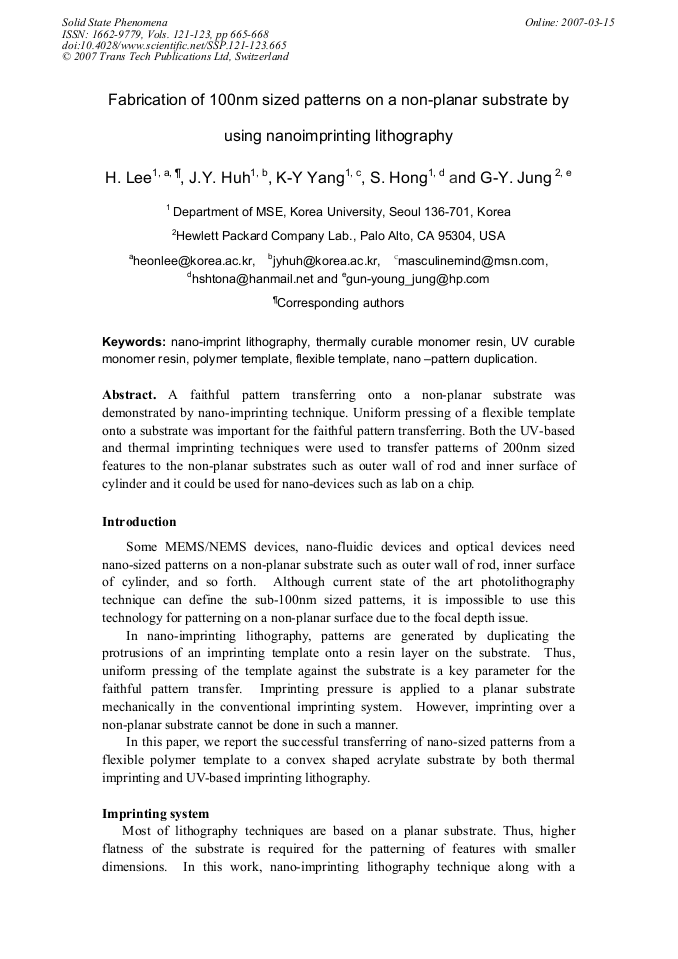

Article Preview

Abstract:

A faithful pattern transferring onto a non-planar substrate was demonstrated by nano-imprinting technique. Uniform pressing of a flexible template onto a substrate was important for the faithful pattern transferring. Both the UV-based and thermal imprinting techniques were used to transfer patterns of 200nm sized features to the non-planar substrates such as outer wall of rod and inner surface of cylinder and it could be used for nano-devices such as lab on a chip.
