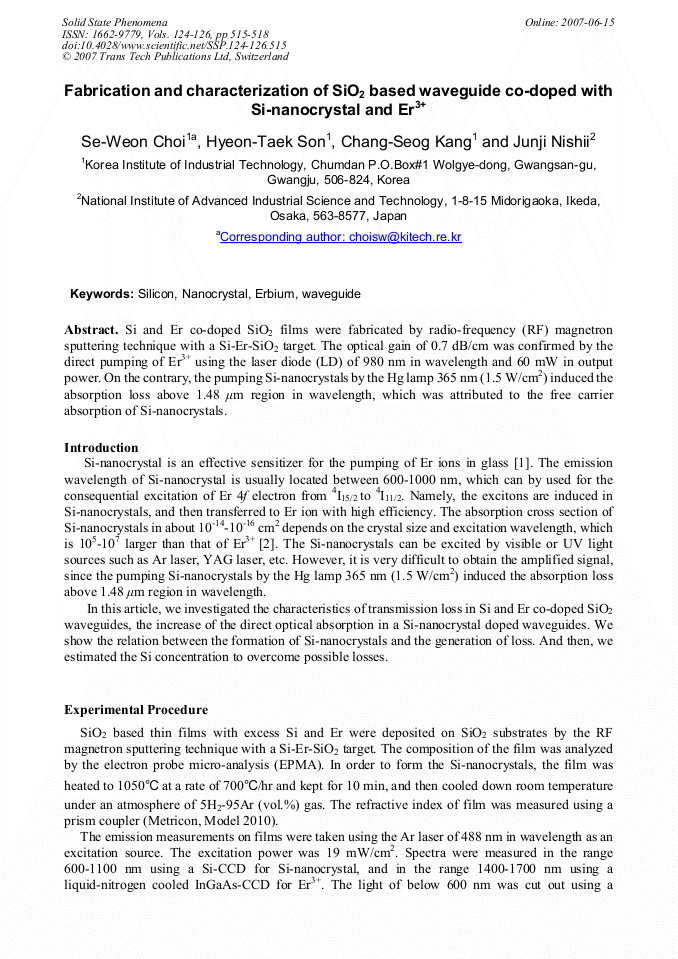

Fabrication and Characterization of SiO₂ Based Waveguide Co-Doped with Si-Nanocrystal and Er³⁺

Abstract:

Si and Er co-doped SiO2 films were fabricated by radio-frequency (RF) magnetron sputtering technique with a Si-Er-SiO2 target. The optical gain of 0.7 dB/cm was confirmed by the direct pumping of Er3+ using the laser diode (LD) of 980 nm in wavelength and 60 mW in output power. On the contrary, the pumping Si-nanocrystals by the Hg lamp 365 nm (1.5 W/cm2) induced the absorption loss above 1.48 μm region in wavelength, which was attributed to the free carrier absorption of Si-nanocrystals.
