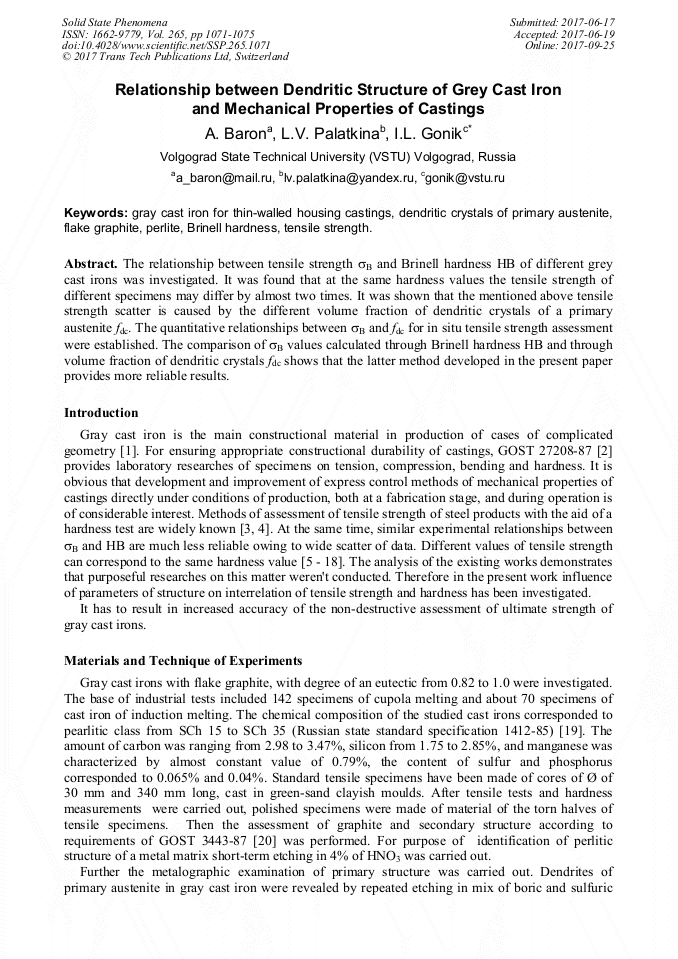

Relationship between Dendritic Structure of Grey Cast Iron and Mechanical Properties of Castings

Abstract:

The relationship between tensile strength σ_В and Brinell hardness HB of different grey cast irons was investigated. It was found that at the same hardness values the tensile strength of different specimens may differ by almost two times. It was shown that the mentioned above tensile strength scatter is caused by the different volume fraction of dendritic crystals of a primary austenite f_dc. The quantitative relationships between σ_B and f_dc for in situ tensile strength assessment were established. The comparison of σ_B values calculated through Brinell hardness HB and through volume fraction of dendritic crystals f_dc shows that the latter method developed in the present paper provides more reliable results.

• Periodical: Solid State Phenomena (Volume 265)
• Pages: 1071-1075
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.265.1071
• Online since: September 2017
• Authors: Aleksandr A. Baron, Lyubov' V. Palatkina, I.L. Gonik*
• Keywords: Brinell Hardness, Dendritic Crystals of Primary Austenite, Flake Graphite, Gray Cast Iron for Thin-Walled Housing Castings, Perlite, Tensile Strength

References

[1] Information on http: /on-v. com. ua/novosti/biznes/mirovoj-rynok-litya-2012-2014-itogi-i-prognozy.

[2] GOST 27208-87, Cast iron castings. Methods of mechanical testing, Moscow, (1988).

[3] M.S. Drozd, Non-destructive determination of mechanical properties of metals, Metallurgia, Moscow, (1965).

[4] M.P. Markovets, Determination of mechanical properties of metals by means of hardness test, Mashinostroenie, Moscow, (1979).

[5] R. Ziegler, E. Lichtenberger, Influence of structure on strength and toughness of cast iron with lamellar graphite, 31st international Congress of casters, Mashinostroenie, Moscow, (1968) 96-100.

[6] I.I. Dobrovolsky, A.A. Zhukov, I.O. Ponudi, The calculation of the structure and mechanical properties of unalloyed and alloyed cast irons, Liteynoe proizvodstvo. 5 (1988) 6-8.

[7] A. Callot, The problem of assessing the quality of gray cast iron and the role of secondary structures, The 27th international Congress of casters, Mashgiz, Moscow, (1961) 83-113.

[8] A.D. Sherman, A.A. Zhukov, Cast iron: a Handbook, Metallurgy, Moscow, (1991).

[9] W. Patterson, The effect of additives injected into the ladle, the properties of cast iron, The 25th international Congress of casters, Mashinostroenie, Moscow. (1961) 93-122.

[10] W. Patterson, Microstructure of cast iron and its properties, The 29-th international Congress of casters, Mashinostroenie, Moscow, (1967) 55-63.

[11] A.A. Zhukov, The fundamentals of the calculation of the composition, structure and strength of grey cast iron, Questions of the theory of foundry processes, Mashgiz, Moscow, (1960) 163-253.

[12] V.A. Il'inskii, L.V. Kostyleva, The dependence of the strength of grey cast iron on its primary structure, Liteynoe proizvodstvo. 5 (1997) 25-26.

[13] R. Elliot, Control of eutectic solidification, Metallurgiya, Moscow, (1987).

[14] G.N. Troitskii. Properties of cast iron, Metallurgizdat, Leningrad-Moscow, (1941).

[15] V.A. Il'inskii, Assessment of quality grey cast iron in silicon equivalent chemical composition, Liteynoe proizvodstvo. 4 (1987) 3-5.

[16] V.A. Il'inskii, A.A. Zhukov, L.V. Kostyleva, E. Abdullayev, Progress in the theory of graphitization. The relationship between the primary and secondary crystallization of graphitizing iron-carbon alloys, Metallovedenie I termicheskaya obrabotka metallov, 10 (1988).

DOI: 10.1007/bf00699556

[17] B.N. Arzamasov, Materials: textbook for universities, MGTU im. Bauman, Moscow, (2008).

[18] Girshovich, Handbook of cast iron casting, Mashinostroenie, Leningrad, (1978).

[19] GOST 1412-85, Cast iron with lamellar graphite for castings, Standartinform, Moscow, (2005).

[20] GOST 3443-87, Cast iron castings with graphite of different form. Methods of structure determination, Standarty, Moscow, (2005).
