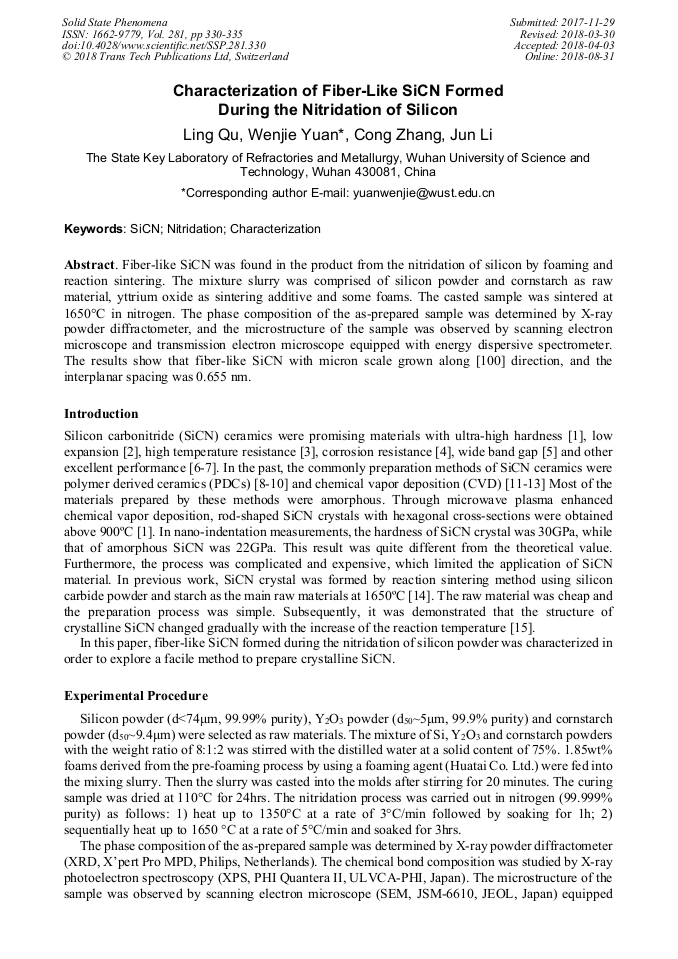

Characterization of Fiber-Like SiCN Formed during the Nitridation of Silicon

Abstract:

Fiber-like SiCN was found in the product from the nitridation of silicon by foaming and reaction sintering. The mixture slurry was comprised of silicon powder and cornstarch as raw material, yttrium oxide as sintering additive and some foams. The casted sample was sintered at 1650oC in nitrogen. The phase composition of the as-prepared sample was determined by X-ray powder diffractometer, and the microstructure of the sample was observed by scanning electron microscope and transmission electron microscope equipped with energy dispersive spectrometer. The results show that fiber-like SiCN with micron scale grown along [100] direction, and the interplanar spacing was 0.655 nm.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 330-335
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.330
• Online since: August 2018
• Authors: Ling Qu, Wen Jie Yuan*, Cong Zhang, Jun Li
• Keywords: Characterization, Nitridation, SiCN

References

[1] L.C. Chen, K.H. Chen, S.L. Wei, Crystalline SiCN: a hard material rivals to cubic BN, Thin Solid Films. 1999, 355-356: 112.

DOI: 10.1016/s0040-6090(99)00490-3

[2] T. Nishimura, R. Haug, J. Bill, Mechanical and thermal properties of Si-C-N material from polyvinylsilazane, J. Mater. Sci. 1998, 33(21): 5237.

[3] R. Riedel, A. Kienzle, W. Dressler, A silicoboron carbonitride ceramic stable to 2,000ºC, Nature. 1996, 382(6594): 796.

DOI: 10.1038/382796a0

[4] T. Nakayamada, K. Matsuo, Y. Hayashi, Evaluation of corrosion resistance of SiCN films deposited by HWCVD using organic liquid materials, Thin Solid Films. 2008, 516(5): 656.

DOI: 10.1016/j.tsf.2007.06.184

[5] Y. Peng, J. Zhou, J. Gong, Microstructure and optical properties of SiCN thin films deposited by reactive magnetron sputtering, Mater. Lett. 2014, 131(12):148.

DOI: 10.1016/j.matlet.2014.05.152

[6] R. Kolb, C. Fasel, V. Liebau-Kunzmann, SiCN/C-ceramic composite as anode material for lithium ion batteries, J. Eur. Ceram Soc. 2006, 26(16): 3903.

DOI: 10.1016/j.jeurceramsoc.2006.01.009

[7] R. Riedel, Silicon-based polymer-derived ceramics: synthesis properties and applications-a review, J. Ceram Soc. Jpn. 2006, 114(1330): 425.

[8] R. Riedel, L. M. Ruswisch, L. An, Amorphous Silicoboron Carbonitride Ceramic with Very High Viscosity at Temperatures above 1500°C, J. Am. Ceram. Soc. 1998, 81(12):3341-3344.

DOI: 10.1111/j.1151-2916.1998.tb02780.x

[9] K. W. Volger, R. Hauser, E. Kroke, Synthesis and characterization of novel non-oxide sol-gel derived mesoporous amorphous Si-C-N membranes (Organic-to-inorganic conversion process for polymer-derived ceramics), J. Ceram Soc. Jpn. 2006, 114(1330): 567.

DOI: 10.2109/jcersj.114.567

[10] H. J. Cheng, Fabrication of SiCN(O) ceramic precursors via novel sol-gel method and their thermal behavios at high temperatures, Tianjin University, Tianjin, 2012. (in Chinese).

[11] Y. D. Qu, Silicon carbon nitride thin film grown by hot-filament chemical vapor deposition, Northwest University, Xi'an, 2009. (in Chinese).

[12] S. Peter, M. Günther, S. Berg, Mid-frequency PECVD of a-SiCN:H films and their structural, mechanical and electrical properties, Vacuum, 2013, 90(1): 155 29.

DOI: 10.1016/j.vacuum.2012.04.001

[13] Z. F. Wu, B. Hong, K. Cheng, Structure and photoluminescence properties of SiCN films grown by dual ion beam reactive sputtering deposition, Vacuum, 2014, 101(3): 205.

DOI: 10.1016/j.vacuum.2013.08.016

[14] J. Li, W. J. Yuan, C. J. Deng, Porous SiC/SiCN composite ceramics fabricated by foaming and reaction sintering, J. Eur. Ceram Soc. 2017, 37(3): 1131.

DOI: 10.1016/j.jeurceramsoc.2016.10.025

[15] W. J. Yuan, L. Qu, J. Li, Characterization of crystalline SiCN formed during the nitridation of silicon and cornstarch powder compacts, J. Alloy Compd. 2017, 725: 326.

DOI: 10.1016/j.jallcom.2017.07.170
