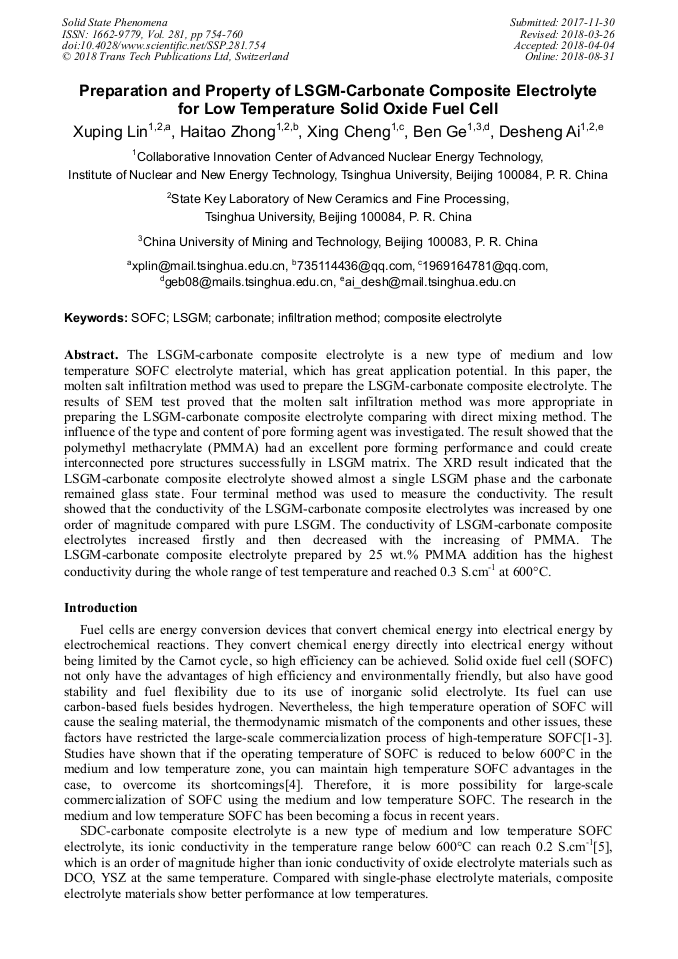

Preparation and Property of LSGM-Carbonate Composite Electrolyte for Low Temperature Solid Oxide Fuel Cell

Abstract:

The LSGM-carbonate composite electrolyte is a new type of medium and low temperature SOFC electrolyte material, which has great application potential. In this paper, the molten salt infiltration method was used to prepare the LSGM-carbonate composite electrolyte. The results of SEM test proved that the molten salt infiltration method was more appropriate in preparing the LSGM-carbonate composite electrolyte comparing with direct mixing method. The influence of the type and content of pore forming agent was investigated. The result showed that the polymethyl methacrylate (PMMA) had an excellent pore forming performance and could create interconnected pore structures successfully in LSGM matrix. The XRD result indicated that the LSGM-carbonate composite electrolyte showed almost a single LSGM phase and the carbonate remained glass state. Four terminal method was used to measure the conductivity. The result showed that the conductivity of the LSGM-carbonate composite electrolytes was increased by one order of magnitude compared with pure LSGM. The conductivity of LSGM-carbonate composite electrolytes increased firstly and then decreased with the increasing of PMMA. The LSGM-carbonate composite electrolyte prepared by 25 wt.% PMMA addition has the highest conductivity during the whole range of test temperature and reached 0.3 S.cm^-1 at 600°C.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 754-760
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.754
• Online since: August 2018
• Authors: Xu Ping Lin*, Hai Tao Zhong, Xing Chen, Ben Ge, De Sheng Ai
• Keywords: Carbonate, Composite Electrolyte, Infiltration Method, LSGM, SOFC

References

[1] R.A. GEORGE, N.F. BESSETTE. Reducing the manufacturing cost of tubular solid oxide fuel cell technology. Journal of Power Sources, 1998, 71(1-2): 131-137.

DOI: 10.1016/s0378-7753(97)02735-3

[2] D.J. BRETT, A. ATKINSON, N.P. BRANDON, et al. Intermediate temperature solid oxide fuel cells. Chemical Society Reviews, 2008, 37(8): 1568-1578.

DOI: 10.1039/b612060c

[3] C.A. TIAN, W.Y. ZENG, Q.Y. YIN, et al. Research progress of electrolyte materials for solid oxide fuel cells. Journal of the Chinese Ceramic Society, 2009, 37(1): 145-150.

[4] H.Y. SUN, W. SEN, Z.Z. YI, et al. Research progress of intermediate temperature solid oxide fuel cell materials. Bulletin of the Chinese Ceramic Society, 2012, 31(5): 1194-1199.

[5] X. WANG, Y. MA, S. LI, et al. Ceria-based nanocomposite with simultaneous proton and oxygen ion conductivity for low-temperature solid oxide fuel cells. Journal of Power Sources, 2011, 196(5): 2754-2758.

DOI: 10.1016/j.jpowsour.2010.11.033

[6] Y. ZHAO, Z. XU, C. XIA, et al. Oxide ion and proton conduction in doped ceria-carbonate composite materials. International Journal of Hydrogen Energy, 2013, 38(3): 1553-1559.

DOI: 10.1016/j.ijhydene.2012.11.004

[7] H. SUN, Y. CHEN, R. YAN, et al. Anode-supported solid oxide fuel cells based on Sm0.2Ce0.8O1.9 electrolyte fabricated by a phase-inversion and drop-coating process. International Journal of Hydrogen Energy, 2016, 41(25): 10907-10913.

DOI: 10.1016/j.ijhydene.2016.03.166

[8] S.A. MALI, R. EROSLI, A. MUCHTAR, et al. Effect of sintering temperature on surface morphology and electrical properties of samarium-doped ceria carbonate for solid oxide fuel cells. Ceramics International, 2015, 41(1): 1323-1332.

DOI: 10.1016/j.ceramint.2014.09.064

[9] N.S. CHAE, K.S. PARK, Y.S. YOON, et al. Sr-and Mg-doped LaGaO3 powder synthesis by carbonate coprecipitation. Colloids and Surfaces a-Physicochemical and Engineering Aspects, 2008, 313: 154-157.

DOI: 10.1016/j.colsurfa.2007.04.084

[10] X.D. ZHU, N.Q. ZHANG, L.J. WU, et al. Preparation and performance of large-area La0.9Sr0.1Ga0.8Mg0.2O3-δ electrolyte for intermediate temperature solid oxide fuel cell. Journal of Power Sources, 2010, 195(22): 7583-7586.

DOI: 10.1016/j.jpowsour.2010.05.060

[11] A. LAPINA, S. LI, B. BERGMAN, et al. Synthesis of La0.9Sr0.1Ga0.8Mg0.2O2.85 powder by gel combustion route with two-step doping strategy. Journal of the European Ceramic Society, 2012, 32(10): 2325-2331.

DOI: 10.1016/j.jeurceramsoc.2012.01.033

[12] J. DI, M. CHEN, C. WANG, et al. Samarium doped ceria-(Li/Na)2CO3 composite electrolyte and its electrochemical properties in low temperature solid oxide fuel cell. Journal of Power Sources, 2010, 195(15): 4695-4699.

DOI: 10.1016/j.jpowsour.2010.02.066

[13] S. YIN, Z. YE, C. LI, et al. Theoretical description on the interface-enhanced conductivity of SDC/LiNa-carbonate composite electrolytes. Materials Letters, 2013, 92: 78-81.

DOI: 10.1016/j.matlet.2012.10.062
