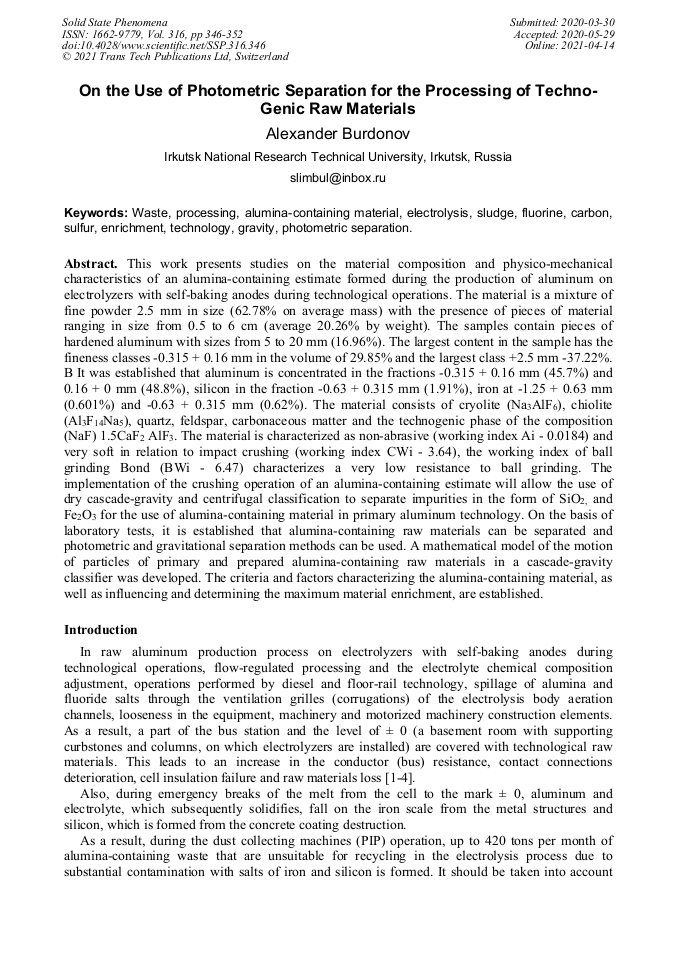

On the Use of Photometric Separation for the Processing of Techno-Genic Raw Materials

Abstract:

This work presents studies on the material composition and physico-mechanical characteristics of an alumina-containing estimate formed during the production of aluminum on electrolyzers with self-baking anodes during technological operations. The material is a mixture of fine powder 2.5 mm in size (62.78% on average mass) with the presence of pieces of material ranging in size from 0.5 to 6 cm (average 20.26% by weight). The samples contain pieces of hardened aluminum with sizes from 5 to 20 mm (16.96%). The largest content in the sample has the fineness classes-0.315 + 0.16 mm in the volume of 29.85% and the largest class +2.5 mm-37.22%. B It was established that aluminum is concentrated in the fractions-0.315 + 0.16 mm (45.7%) and 0.16 + 0 mm (48.8%), silicon in the fraction-0.63 + 0.315 mm (1.91%), iron at-1.25 + 0.63 mm (0.601%) and-0.63 + 0.315 mm (0.62%). The material consists of cryolite (Na₃AlF₆), chiolite (Al₃F₁₄Na₅), quartz, feldspar, carbonaceous matter and the technogenic phase of the composition (NaF) 1.5CaF₂ AlF₃. The material is characterized as non-abrasive (working index Ai - 0.0184) and very soft in relation to impact crushing (working index CWi - 3.64), the working index of ball grinding Bond (BWi - 6.47) characterizes a very low resistance to ball grinding. The implementation of the crushing operation of an alumina-containing estimate will allow the use of dry cascade-gravity and centrifugal classification to separate impurities in the form of SiO_2, and Fe₂O₃ for the use of alumina-containing material in primary aluminum technology. On the basis of laboratory tests, it is established that alumina-containing raw materials can be separated and photometric and gravitational separation methods can be used. A mathematical model of the motion of particles of primary and prepared alumina-containing raw materials in a cascade-gravity classifier was developed. The criteria and factors characterizing the alumina-containing material, as well as influencing and determining the maximum material enrichment, are established.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 346-352
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.346
• Online since: April 2021
• Authors: Alexander E. Burdonov*
• Keywords: Alumina-Containing Material, Carbon, Electrolysis, Enrichment, Fluorine, Gravity, Photometric Separation, Processing, Sludge, Sulfur, Technology, Waste

References

[1] A.Yu. Nikolaev, A.S. Yasinsky, A.V. Suzdaltsev, P.V. Polyakov, Yu.P. Zaikov Electrolysis of aluminum in melts and suspensions KF-ALF3-AL2O3, Melt. 3 (2017) 205-213.

[2] N.V. Golovnykh, Modeling of aluminum electrolysis production processes and ensuring its environmental safety, Ecology of industrial production. 3 (2009) 2-8.

[3] A.M. Vinogradov, I.P. Vasyunina, Yu.G. Mikhalev, P.V. Polyakov, Investigation of the influence of the electrolyte composition on the consumption of calcined anodes during electrolytic aluminum production, Izvestiya Vysshikh Uchebnykh Zavedenii. Non-ferrous metallurgy. 5 (2008) 22-28.

DOI: 10.3103/s1067821208050064

[4] I.A. Sysoev, V.A. Ershov, V.V. Kondrat'ev method of controlling the energy balance of electrolytic cells for aluminum production Metallurgist. 59 (5-6) (2015) 518-525.

DOI: 10.1007/s11015-015-0134-1

[5] Yu. A.Romaseva, Characteristics of violations of normal operation of the cell and ways to eliminate them, Innovative Science. 11-2 (2016) 65-67.

[6] W. Wang, W. Chen, W. Gu, Creep Deformation of Carbon-Based Cathode Materials for Low-Temperature Aluminum Electrolysis, Metallurgist, 61 (7-8) (2017) 717-725.

DOI: 10.1007/s11015-017-0555-0

[7] V.M. Sizyakov, A.A. Vlasov, V.Yu. Bazhin, Strategy tasks of the Russian metallurgical complex. Tsvetnye Metally, (1) (2016) 32-37.

DOI: 10.17580/tsm.2016.01.05

[8] V.M. Sizyakov, A.A. Vlasov, V.Yu. Bazhin, R.Yu. Feshchenko, On the Interaction between alumina batch and cryolite-alumina melt. Russian Journal of Non-Ferrous Metals, 55 (4) (2014) 331-335.

DOI: 10.3103/s1067821214040154

[9] V.Yu. Bazhin, V.N. Brichkin, V.M. Sizyakov, M.V. Cherkasova, Pyrometallurgical treatment of a nepheline charge using additives of natural and technogenic origin. Metallurgist. 61 (1-2) 147-154.

DOI: 10.1007/s11015-017-0468-y

[10] A.E. Burdonov, E.V. Zelinskaya, L.V. Gavrilenko, A.A. Gavrilenko, Investigation of substantial composition of alumina-bearing material of aluminium electrolysers for usage in primary aluminium technology, Tsvetnye Metally. 3 (2018) 32-38.

DOI: 10.17580/tsm.2018.03.05

[11] J. Fruhstorfer, C.G. Aneziris, Influence of particle size distributions on the density and density gradients in uniaxial compacts. Ceramics International. Issue. 43 (16) (2017) 13175-13184.

DOI: 10.1016/j.ceramint.2017.07.011

[12] A.E. Burdonov, V.V. Barakhtenko, E.V. Zelinskaya, E.O. Suturina, A.V. Burdonova, A.V. Golovnina Physicomechanical characteristics of composite materials based on waste products with various formulations. Engineering and Construction Journal. 9 (35) (2012) 14-22.

DOI: 10.5862/mce.35.2

[13] Khazaei Feizabad, MH, Sharafi, S., Khayati, GR, Ranjbar, M.Effect of process control agent on the structural and magnetic properties of nano / amorphous Fe0.7Nb0.1Zr0.1Ti0.1 powders prepared by high energy ball milling, Journal of Magnetism and Magnetic Materials. 449 (2018) 297-303.

DOI: 10.1016/j.jmmm.2017.10.018

[14] A.N. Chertov, E.V. Gorbunova, L.S. Skamnitskaya, T.P. Bubnova, Possibilities of enrichment of quartz-feldspar raw materials of deposits of northern Karelia by the optical method, Enrichment of ores. 4 (358) (2015) 54-59.

[15] A.E. Burdonov, V.V. Barakhtenko, K.V. Prokhorov, A.A. Gavrilenko, Results of studies of disintegration working indices for alumina-containing wastes, Obogashchenie Rud, 4 (2018) 11-16.

DOI: 10.17580/or.2018.04.03

[16] D.P. Tripathy, Guru Raghavendra Reddy, K. Novel methods for gangue from limestone and coal using multispectral and joint color-texture features. Journal of The Institution of Engineers (India): Series D. 98 (1) (2017) 109-117.

DOI: 10.1007/s40033-015-0106-4

[17] V.F. Skorokhodov, M.S. Hohulya, Increasing the efficiency of separation of man-made waste iron ore. Vestnik MSTU. 12 (4) (2009) 619-623.

[18] J.-H. Zhu, Role and significance of geochemical exploration in the discovery of the Dayangshugou molybdenum deposit, Liaoning, Geology in China. 34 (2) (2007) 342-346.

[19] V.A. Khakulov, V.A. Shapovalov, M.V. Ignatov, Z.V. Karpova, Improving RGB Registration Method for Lump Sorting of Scheelite-Bearing Ores. Proceedings of the 2019 IEEE International Conference & Quality Management, Transport and Information Security, Information Technologies & IT and QM and IS. 8928427 (2019) 252-257.

DOI: 10.1109/itqmis.2019.8928427

[20] T. Bubnova, L. Skamnitskaya, E. Gorbunova, A. Chertov, Contrast Characteristics of the Muscovitic Quartzite from Karelia, Russia-Determining the Possibility of Intensification of the Beneficiation Process, IOP Conference Series: Earth and Environmental Science. 95(4) (2017) 042072.

DOI: 10.1088/1755-1315/95/4/042072

[21] A.S. Kobzev, I.V. Alushkin, A.M. Olkhovskiy, G.F. Tolmachev, A.N. Shilkin, The results of pilot5scale testing of the konevinskoye deposit gold5bearing ore preliminary beneficiation by photometric sorting, Obogashchenie Rud. 2 (2014) 10-14.
