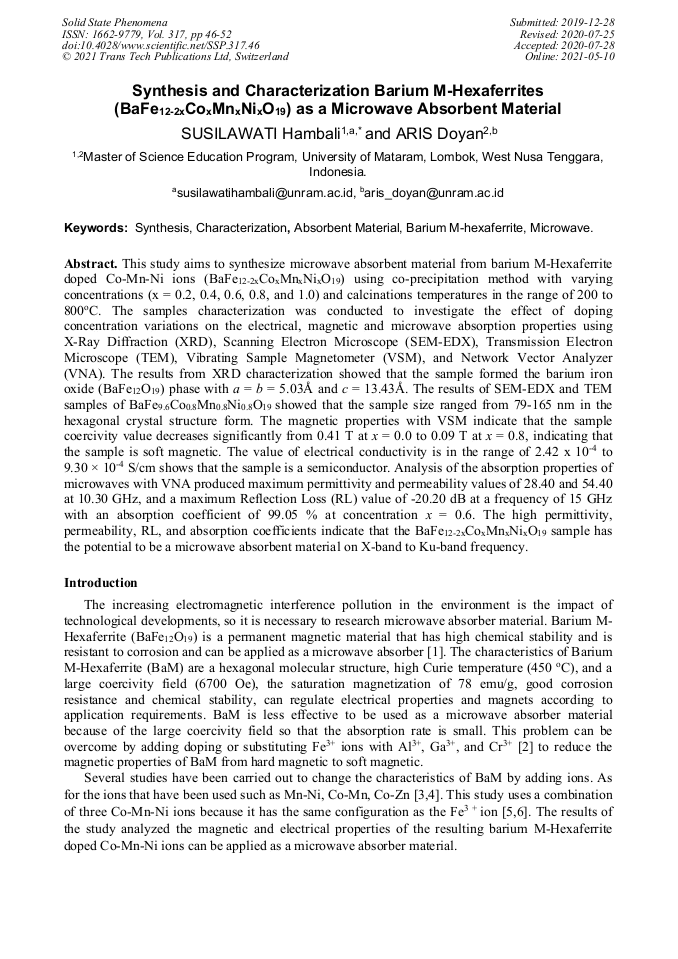

Synthesis and Characterization Barium M-Hexaferrites (BaFe_12-2xCo_xMn_xNi_xO₁₉) as a Microwave Absorbent Material

Abstract:

This study aims to synthesize microwave absorbent material from barium M-Hexaferrite doped Co-Mn-Ni ions (BaFe_12-2xCo_xMn_xNi_xO₁₉) using co-precipitation method with varying concentrations (x = 0.2, 0.4, 0.6, 0.8, and 1.0) and calcinations temperatures in the range of 200 to 800°C. The samples characterization was conducted to investigate the effect of doping concentration variations on the electrical, magnetic and microwave absorption properties using X-Ray Diffraction (XRD), Scanning Electron Microscope (SEM-EDX), Transmission Electron Microscope (TEM), Vibrating Sample Magnetometer (VSM), and Network Vector Analyzer (VNA). The results from XRD characterization showed that the sample formed the barium iron oxide (BaFe₁₂O₁₉) phase with a = b = 5.03Å and c = 13.43Å. The results of SEM-EDX and TEM samples of BaFe_9.6Co_0.8Mn_0.8Ni_0.8O₁₉ showed that the sample size ranged from 79-165 nm in the hexagonal crystal structure form. The magnetic properties with VSM indicate that the sample coercivity value decreases significantly from 0.41 T at x = 0.0 to 0.09 T at x = 0.8, indicating that the sample is soft magnetic. The value of electrical conductivity is in the range of 2.42 x 10^-4 to 9.30 x 10^-4 S/cm shows that the sample is a semiconductor. Analysis of the absorption properties of microwaves with VNA produced maximum permittivity and permeability values ​​of 28.40 and 54.40 at 10.30 GHz, and a maximum Reflection Loss (RL) value of -20.20 dB at a frequency of 15 GHz with an absorption coefficient of 99.05 % at concentration x = 0.6. The high permittivity, permeability, RL, and absorption coefficients indicate that the BaFe_12-2xCo_xMn_xNi_xO₁₉ sample has the potential to be a microwave absorbent material on X-band to Ku-band frequency.

• Periodical: Solid State Phenomena (Volume 317)
• Pages: 46-52
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.317.46
• Online since: May 2021
• Authors: Susilawati Hambali*, Aris Doyan
• Keywords: Absorbent Material, Barium M-Hexaferrite, Characterization, Microwave, Synthesis

References

[1] I. N. Saidah, M. Zainuri, Effect of pH Variation on HCl Solvents in the Synthesis of Barium M-Hexaferrit with Zn Doping (BaFe11, 4Zn0, 6O19) Using the Coprecipity Method, Jurnal Sains dan Seni ITS 1(1) (2012) B41-B46.

[2] D. A. Vinnik, D. A. Zherebtsov, L. S. Mashkovtseva, S. Nemrava, M. Bischoff, N. S. Perov, R. Niewa, Growth, structural and magnetic characterization of Al-substituted barium hexaferrite single crystals, J. of Alloys and Compounds 615 (2014) 1043-1046.

DOI: 10.1016/j.jallcom.2014.07.126

[3] Susilawati, A. Doyan, Sahlam, Synthesis and Characterization Materials M-Barium Hexaferrite Doping Ions Co-Mn NanoParticle, In IOP Conference Series: Materials Science and Engineering 196(1) (2017) 012016. IOP Publishing.

DOI: 10.1088/1757-899x/196/1/012016

[4] Susilawati, A. Doyan, M. Munib, Synthesis by co-precipitation method and characterization of Nickel-doped Barium M-Hexaferrite (BaFe12O19), Proceeding ICMSE (2015). ISBN 9786021570425.

[5] H. Sözeri, H. Deligöz, H. Kavas, A. Baykal, Magnetic, dielectric and microwave properties of M–Ti substituted barium hexaferrites (M= Mn 2+, Co 2+, Cu2+, Ni 2+, Zn 2+), Ceramics International 40(6) (2014) 8645-8657.

DOI: 10.1016/j.ceramint.2014.01.082

[6] R. Agustianto, W. Widyastuti, Mol Fraction and Ph Variation of Magnetic Properties and Micro Structure of Barium Hexaferrit Using the Sol-Gel Auto Combustion Method, Journal of Engineering ITS 3(1) (2014) F108-F112.

[7] J. Li, H. Zhang, V. G. Harris, Y. Liao, Y. Liu, Ni–Ti equiatomic co-substitution of hexagonal M-type Ba(NiTi)xFe12− 2xO19 ferrites, Journal of Alloys and Compounds 649 (2015) 782-787.

DOI: 10.1016/j.jallcom.2015.07.173

[8] F.R. Sholihah, M. Zainuri, Effect of Holding Time Calcination on the Magnetic Properties of Barium M-Hexaferrite (BaFe12-xZnxO19) with Zn Doping Ion, Journal of Science and Art ITS 1(1) (2012) B25-B29.

[9] Susilawati, A. Doyan, M. Taufik, Wahyudi, E. R. Gunawan, A. Fitriani, Nazarudin, Characterization of Barium M-Hexaferrite with Doping Zn and Mn for Microwaves Absorbent, Journal Materials Science Forum 966 (2019) 283-289.

DOI: 10.4028/www.scientific.net/msf.966.282

[10] T.R. Wagner, Preparation and crystal structure analysis of magneto plumbite type BaGa12O19, J. Solid State Chem. 136 (1998) 120–124.

DOI: 10.1006/jssc.1997.7681

[11] Susilawati, A. Doyan, M. Munib, Synthesis by Co-precipitation Method and Characterization of Nickel-doped Barium M-Hexaferrite (BaFe12O19), Proceeding ICMSE (2015). ISBN 9786021570425.

[12] L.N. Usvanda, M. Zainuri, Synthesis, and Characterization of BaM/PANi Radar Absorbing Material (RAM) Layer Based on X-Band Wave Range with Thickness Variation, Journal of Science and Art ITS 5(2) (2016).

[13] D.T. Rahmawati, D.H. Kusumawati, M. Si, L. Rohmawati, Variation of Fe3o4 Addition to Pani / Fe3o4 Alloys for Microwaves, Journal of Physics 4 (1) (2015) 1-5.

[14] L.M. Said, Analysis of the Properties of Electrical Conductivity in Several Types of Materials with the Remote Potential Method, Jurnal Teknosains 7 (2013) 66-67.

[15] S. H. Mahmood, A. N. Aloqaily, Y. Maswadeh, A. Awadallah, I. Bsoul, M. Awawdeh, H. Juwhari, Effects of Heat Treatment on the Phase Evolution, Structural, and Magnetic Properties of Mo-Zn Doped M-type Hexaferrites, Solid State Phenomena 232 (2015) 65-92.

DOI: 10.4028/www.scientific.net/ssp.232.65

[16] H. Sözeri, H. Deligöz, H. Kavas, A. Baykal: Magnetic, dielectric and microwave properties of M–Ti substituted barium hexaferrite (M= Mn2+, Co2+, Cu2+, Ni2+, Zn2+), Ceramics International 40(6) (2014) 8645-8657.

DOI: 10.1016/j.ceramint.2014.01.082

[17] C. J. Li, B. Wang, J.N. Wang, Magnetic and microwave absorbing properties of electrospun Ba (1− x)LaxFe12O19 nanofibers, Journal of Magnetism and Magnetic Materials 324(7) (2012) 1305-1311.

DOI: 10.1016/j.jmmm.2011.11.016

[18] W. Zhang, Y. Bai, X. Han, L. Wang, X. Lu, L. Qiao, Magnetic properties of Co–Ti substituted barium hexaferrite, Journal of Alloys and Compounds 546 (2013) 234-238.

DOI: 10.1016/j.jallcom.2012.08.029

[19] Susilawati, A. Doyan, Khaililurrahman, Synthesis and Characterization of Barium Hexaferrite with Manganese (Mn) Doping Material as Anti-Radar, American Institute of Physics Conf. Proc. 1801 (2016) 040007.

DOI: 10.1063/1.4973096

[20] V.N. Dhage, M.L. Mane, M.K. Babrekar, C.M. Kale, K.M. Jadhav, Influence of chromium substitution on structural and magnetic properties of BaFe12O19 powder prepared by sol-gel auto combustion method, Journal of Alloys and Compounds 509(12) (2011) 4394-4398.

DOI: 10.1016/j.jallcom.2011.01.040

[21] R.S. Alam, M. Moradi, M. Rostami, H. Nikmanesh, R. Moayedi, Y. Bai, Structural, magnetic and microwave absorption properties of doped Barium-hexaferrite nano-particles synthesized by the co-precipitation method, Journal of Magnetism and Magnetic Materials 381(2015) 1-9.

DOI: 10.1016/j.jmmm.2014.12.059
