Thermal Barrier Coating Deposited Using the PS-PVD Method on TiAl-Nb-Mo Intermetallic Alloy with Different Types of Bond Coats

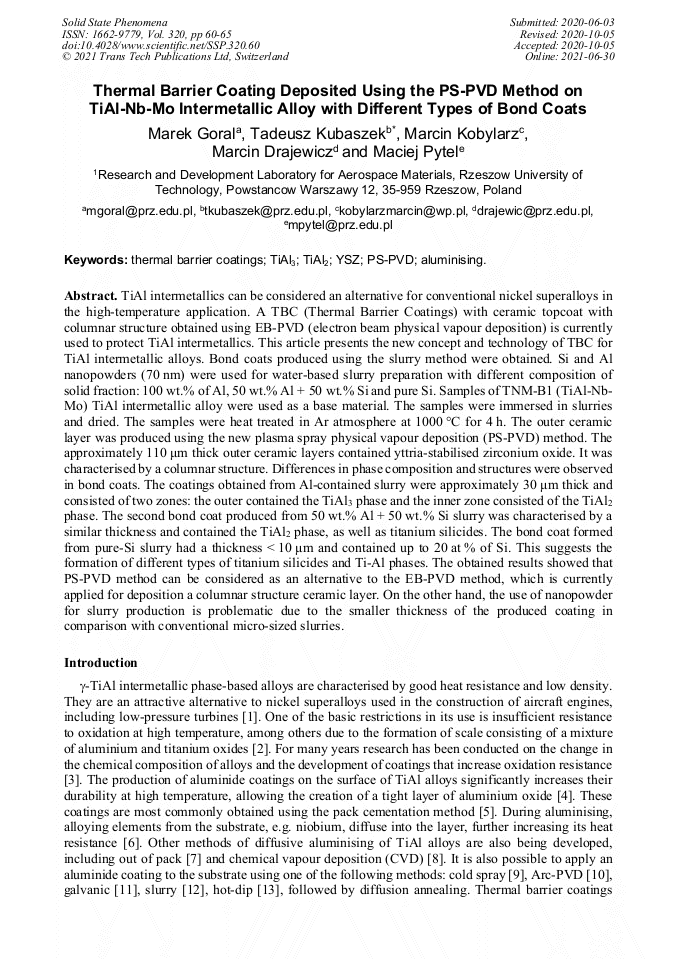

Abstract:

TiAl intermetallics can be considered an alternative for conventional nickel superalloys in the high-temperature application. A TBC (Thermal Barrier Coatings) with ceramic topcoat with columnar structure obtained using EB-PVD (electron beam physical vapour deposition) is currently used to protect TiAl intermetallics. This article presents the new concept and technology of TBC for TiAl intermetallic alloys. Bond coats produced using the slurry method were obtained. Si and Al nanopowders (70 nm) were used for water-based slurry preparation with different composition of solid fraction: 100 wt.% of Al, 50 wt.% Al + 50 wt.% Si and pure Si. Samples of TNM-B1 (TiAl-Nb-Mo) TiAl intermetallic alloy were used as a base material. The samples were immersed in slurries and dried. The samples were heat treated in Ar atmosphere at 1000 °C for 4 h. The outer ceramic layer was produced using the new plasma spray physical vapour deposition (PS-PVD) method. The approximately 110 μm thick outer ceramic layers contained yttria-stabilised zirconium oxide. It was characterised by a columnar structure. Differences in phase composition and structures were observed in bond coats. The coatings obtained from Al-contained slurry were approximately 30 μm thick and consisted of two zones: the outer contained the TiAl₃ phase and the inner zone consisted of the TiAl₂ phase. The second bond coat produced from 50 wt.% Al + 50 wt.% Si slurry was characterised by a similar thickness and contained the TiAl₂ phase, as well as titanium silicides. The bond coat formed from pure-Si slurry had a thickness < 10 μm and contained up to 20 at % of Si. This suggests the formation of different types of titanium silicides and Ti-Al phases. The obtained results showed that PS-PVD method can be considered as an alternative to the EB-PVD method, which is currently applied for deposition a columnar structure ceramic layer. On the other hand, the use of nanopowder for slurry production is problematic due to the smaller thickness of the produced coating in comparison with conventional micro-sized slurries.

• Periodical: Solid State Phenomena (Volume 320)
• Pages: 60-65
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.320.60
• Online since: June 2021
• Authors: Marek Goral, Tadeusz Kubaszek*, Marcin Kobylarz, Marcin Drajewicz, Maciej Pytel
• Keywords: Aluminising, PS-PVD, Thermal Barrier Coatings, TiAl₂, TiAl₃, YSZ

References

[1] H. Clemens, S. Mayer, Design, processing, microstructure, properties, and applications of advanced intermetallic TiAl alloys, Adv. Eng. Mat., 15(4) (2013) 191-215.

DOI: 10.1002/adem.201200231

[2] A. Rahmel, M. Schütze, W.J. Quadakkers, Fundamentals of TiAl oxidation – A critical review, Materials and Corrosion, 46(5) (1995) 271-285.

DOI: 10.1002/maco.19950460503

[3] R. Pflumm, S. Friedle, M. Schütze, Oxidation protection of γ-TiAl-based alloys – A review, Intermetallics, 56 (2015) 1-14.

DOI: 10.1016/j.intermet.2014.08.002

[4] S. Kim, D. Paik, I. Kim, H. Kim, K. Park, Effect of aluminising on high temperature oxidation resistance of TiAl compounds, Mat. Sci. and Techn., 14 (1998) 8, 822-825.

DOI: 10.1179/mst.1998.14.8.822

[5] Z.D. Xiang, S.R. Rose, P.K. Datta, Conditions for formation of coherent aluminide coatings on γ-TiAl by pack cementation process, Surf. Eng. 18(5) (2002) 373-380.

DOI: 10.1179/026708402225006321

[6] H.G. Jung, K.Y. Kim, Effect of ternary elements on the oxidation behavior of aluminized TiAl alloys, Oxid. of Met. 58(1-2) (2002) 216.

[7] S. Nouri, S. Rastegari, S. Mirdamadi, M. Hadavi, Formation of diffusion aluminide coatings on γ-TiAl alloy with in-pack and out-pack processes, Trans. of the Indian Inst. of Met., 68(5) (2015) 867-871.

DOI: 10.1007/s12666-015-0523-y

[8] M. Góral, A. Nowotnik, J. Sieniawski, The CVD aluminizing of TiAl intermetallics, Sol. St. Phen. 203-204 (2013) 327-330.

DOI: 10.4028/www.scientific.net/ssp.203-204.327

[9] J. Wang, L. Kong, T. Li, T. Xiong, Microstructure evolution of cold-sprayed Al-Si alloy coatings on γ-TiAl during heat treatment, Jour. of Ther. Spray Techn. 24(6) (20150) 1071-1080.

DOI: 10.1007/s11666-015-0273-8

[10] L. Swadzba, A. Maciejny, B. Mendala, G. Moskal, G. Jarczyk, Structure and resistance to oxidation of an Al-Si diffusion coating deposited by Arc-PVD on a TiAlCrNb alloy, Surf. and Coat. Techn. 165(3) (2003) 273-280.

DOI: 10.1016/s0257-8972(02)00742-9

[11] M. Miyake, S. Tajikara, T. Hirato, Fabrication of TiAl3 coating on TiAl-based alloy by Al electrodeposition from dimethylsulfone bath and subsequent annealing, Surf. and Coat. Techn. 205(21-22) (2011) 5141-5146.

DOI: 10.1016/j.surfcoat.2011.05.019

[12] S. Nouri, S. Mirdamadi, S. Rastegari, M. Hadavi, Microstructural investigation of Si-modified aluminide coating formed on γ-TiAl alloy by the slurry method, Metallog.y, Microst., and Anal. 4(2) (2015) 2.

DOI: 10.1007/s13632-015-0190-8

[13] Z.G. Zhang, X. Teng, Y.G. Sheng, X.J. Zhang, H.F. Xiang, Preparation of TiAl3Coating on γ-TiAl through hot-dip aluminizing and subsequent interdiffusion treatment, High Temp. Mat. Proc. 28 (1-2) (2009) 115-119.

DOI: 10.1515/htmp.2009.28.1-2.115

[14] J. Wang, L. Kong, T. Li, T. Xiong, Oxidation behavior of thermal barrier coatings with a TiAl3 bond coat on γ-TiAl alloy, Journal of Thermal Spray Technology. 24(3) (2014) 467-475.

DOI: 10.1007/s11666-014-0186-y

[15] A. Ebach-Stahl, M. Fröhlich, Lifetime study of sputtered PtAl coating on γ-TiAl with and without TBC topcoat at high temperatures, Surf. and Coat. Techn. 377 (2019) 124907.

DOI: 10.1016/j.surfcoat.2019.124907

[16] K. Szymański, M. Góral, T. Kubaszek, P.C. Monteiro, Microstructure of TBC coatings deposited by HVAF and PS-PVD methods, Sol. St. Phen. 227 (2015) 373-376.

DOI: 10.4028/www.scientific.net/ssp.227.373

[17] M. Góral, M. Pytel, K. Dychtoń, Microstructural characterization of several coatings deposited on TiAlNb intermetallic alloy, Arch. of Metall. and Mat. 59(4) (2014) 1547-1551.

DOI: 10.2478/amm-2014-0262

[18] M. Góral, M. Pytel, M. Drajewicz, The formation of TBCs using LPPS, CVD and PS-PVD methods on CMSX-4 single-crystal nickel superalloy, Sol. St. Ph. 227 (2015) 317-320.

DOI: 10.4028/www.scientific.net/ssp.227.317

[19] M. Góral, G. Moskal, L. Swadzba, M. Hetmanczyk, The influence of silicon amount on structure of Si modified aluminide coating deposited on Ti46AI7Nb alloy by slurry method, Key Eng. Mat. 465 (2011) 251-254.

DOI: 10.4028/www.scientific.net/kem.465.251

[20] X.F. Zhang, K.S. Zhou, C.M. Liu, Z.Q. Deng, C.G. Deng, J.B. Song, Gas-deposition mechanisms of 7YSZ coating based on plasma spray-physical vapor deposition, Jour. of the Europ. Cer. Soc. 36 (3) (2016) 697-703.

DOI: 10.1016/j.jeurceramsoc.2015.10.041
