Effect Evaluation and Modeling of p-Type Contact and p-Well Sheet Resistance of SiC MOSFET with Respect to Switching Characteristics

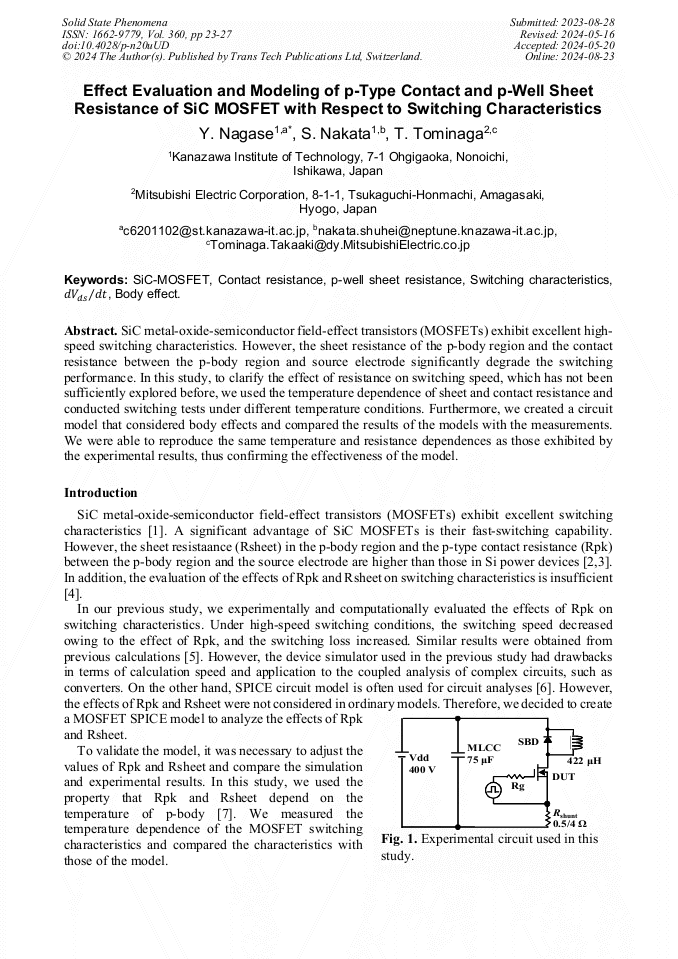

Article Preview

Abstract:

SiC metal-oxide-semiconductor field-effect transistors (MOSFETs) exhibit excellent high-speed switching characteristics. However, the sheet resistance of the p-body region and the contact resistance between the p-body region and source electrode significantly degrade the switching performance. In this study, to clarify the effect of resistance on switching speed, which has not been sufficiently explored before, we used the temperature dependence of sheet and contact resistance and conducted switching tests under different temperature conditions. Furthermore, we created a circuit model that considered body effects and compared the results of the models with the measurements. We were able to reproduce the same temperature and resistance dependences as those exhibited by the experimental results, thus confirming the effectiveness of the model.

By email View Pdf
You might also be interested in these eBooks
20th International Conference on Silicon Carbide and Related Materials (ICSCRM 2023) View Preview
Solid-State Power Devices: Circuitry and Characterizations View Preview

Info:

Periodical:

Solid State Phenomena (Volume 360)

Pages:

23-27

DOI:

https://doi.org/10.4028/p-n20uUD

Citation:

Cite this paper

Online since:

August 2024

Authors:

Yui Nagase*, Shuhei Nakata, Takaaki Tominaga

Keywords:

Body Effect, Contact Resistance, dVds/dt, p-Well Sheet Resistance, SiC-MOSFET, Switching Characteristics

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] T. Kimoto and J. A. Cooper, Fundamentals of Silicon Carbide Technology, Wiley, New York, 2014.

Google Scholar

[2] Y. Nagahisa, S. Hino, H. Hatta, K. Kawahara, S. Tomohisa, and N. Miura, in 2020 32nd Int. Symp. Power Semicond. Devices ICs 2020 114–117.

DOI: 10.1109/ispsd46842.2020.9170088

Google Scholar

[3] L. Huang, M. Xia, and X. Gu, J. Cryst. Growth. 531 (2020) 125353.

Google Scholar

[4] J. A. O. Gonzalez and O. Alatise, IEEE Trans. Power Electron. 34 (2019) 5737.

Google Scholar

[5] T. Tominaga, T. Iwamatsu, Y. Nakao, H. Amishiro, H. Watanabe, S. Tomohisa, N. Miura, and S. Nakata, IEEE Trans. Electron Devices. 69 (2022) 285.

DOI: 10.1109/ted.2021.3130863

Google Scholar

[6] H. A. Mantooth, K. Peng, E. Santi, and J. L. Hudgins, IEEE Trans. Electron Devices. 62 (2015) 423.

Google Scholar

[7] M. Vivona, G. Greco, R. Lo Nigro, C. Bongiorno, and F. Roccaforte, J. Appl. Phys. 118 (2015) 035705.

Google Scholar
