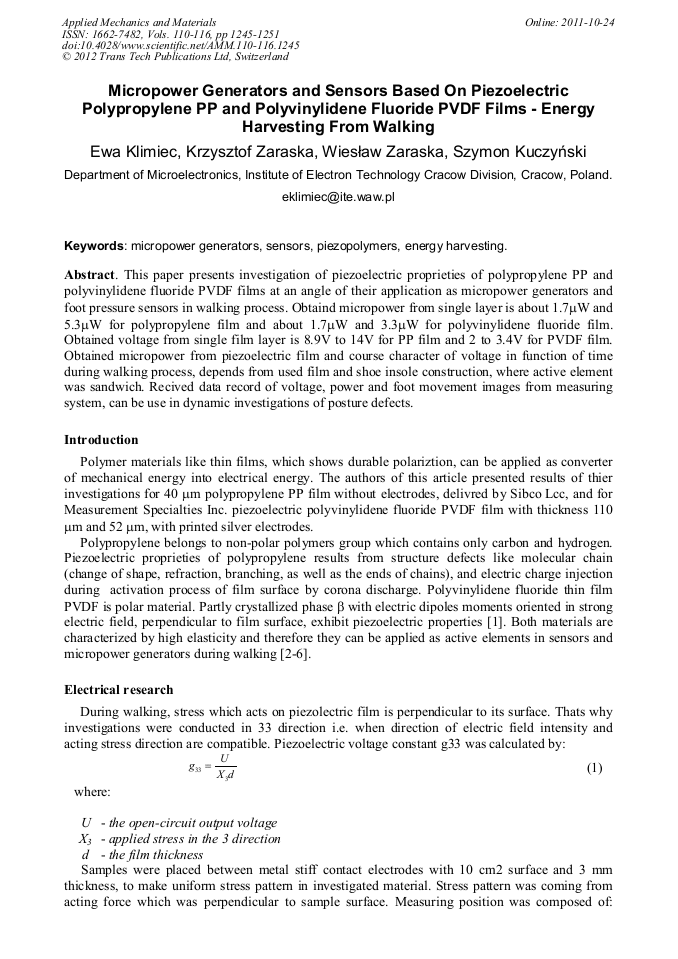

Micropower Generators and Sensors Based on Piezoelectric Polypropylene PP and Polyvinylidene Fluoride PVDF Films - Energy Harvesting from Walking

Abstract:

This paper presents investigation of piezoelectric proprieties of polypropylene PP and polyvinylidene fluoride PVDF films at an angle of their application as micropower generators and foot pressure sensors in walking process. Obtaind micropower from single layer is about 1.7W and 5.3W for polypropylene film and about 1.7W and 3.3W for polyvinylidene fluoride film. Obtained voltage from single film layer is 8.9V to 14V for PP film and 2 to 3.4V for PVDF film. Obtained micropower from piezoelectric film and course character of voltage in function of time during walking process, depends from used film and shoe insole construction, where active element was sandwich. Recived data record of voltage, power and foot movement images from measuring system, can be use in dynamic investigations of posture defects.

You might also be interested in these eBooks

Mechanical and Aerospace Engineering, ICMAE2011

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 110-116)

Pages:

1245-1251

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.110-116.1245

Citation:

Cite this paper

Online since:

October 2011

Authors:

Ewa Klimiec, Krzysztof Zaraska, Wiesław Zaraska, Szymon Kuczyński

Keywords:

Energy Harvesting, Micropower Generators, Piezopolymers, Sensor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Tsuey T. Wang, Production of Piezoelectric PVDF Films, US 4241128, (1980).

Google Scholar

[2] Energy Harvesting device using electrostrictive Polymers, US Patent 6 433 465 B1, (2002).

Google Scholar

[3] Sodano H. A., Inman D. J., Comparison of Piezoelectric Energy Harvesting Devices for Recharging Batteries, LA-UR-04-5720, Journal of Intelligent Material Systems and Structures, 16(10), 799-807, (2005).

DOI: 10.1177/1045389x05056681

Google Scholar

[4] Kymissis J., Kendall C., Paradiso J., Gershenfeld N., Parasitic Power Harvesting in Shoes, Second IEEE International Conference on Werable Computing, (1998).

DOI: 10.1109/iswc.1998.729539

Google Scholar

[5] Oladeji O., Stackhouse C., Gracely E., Orlin M., Comparison of the Two-Step and Midgait Methods of Plantar Pressure Measurement in Children, Journal of the American Podiatric Medical Association, Vol. 98 Nr 4, 2008, 268-277.

Google Scholar

[6] Li Q., Naing V., Hoffer J. A., Weber D. J., Kuo A. D. Donelan J. M., Biomechanical Energy Harvesting: Apparatus and Method, IEEE International Conference on Robotics and Automation, Pasadena, CA, USA, May 19-23, (2008).

DOI: 10.1109/robot.2008.4543774

Google Scholar
