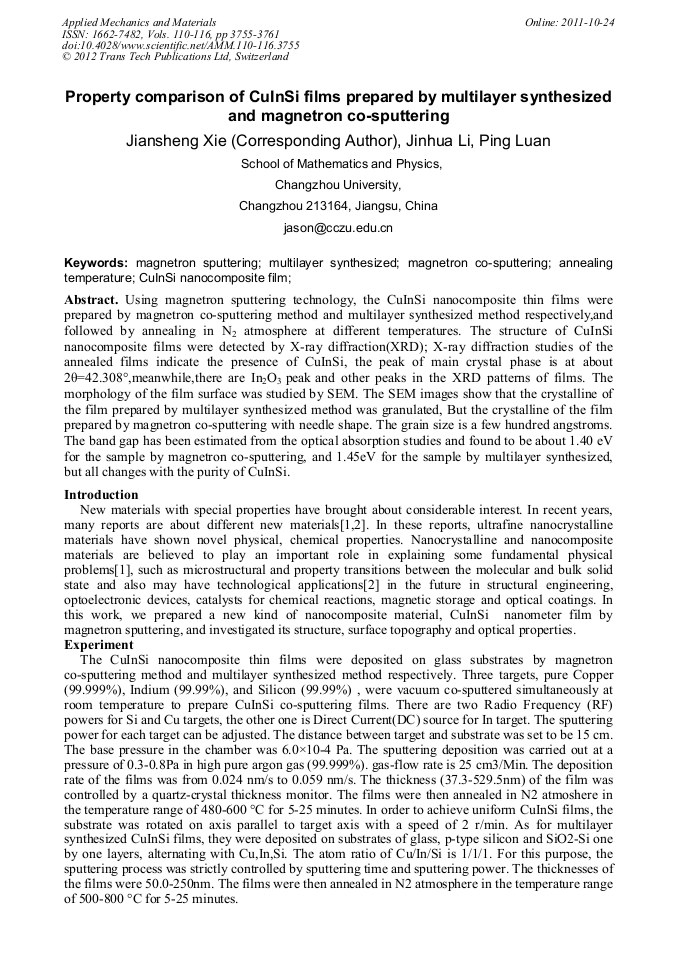

Property Comparison of CuInSi Films Prepared by Multilayer Synthesized and Magnetron Co-Sputtering

Abstract:

Using magnetron sputtering technology, the CuInSi nanocomposite thin films were prepared by magnetron co-sputtering method and multilayer synthesized method respectively,and followed by annealing in N₂ atmosphere at different temperatures. The structure of CuInSi nanocomposite films were detected by X-ray diffraction (XRD); X-ray diffraction studies of the annealed films indicate the presence of CuInSi, the peak of main crystal phase is at about 2θ=42.308°,meanwhile,there are In₂O₃ peak and other peaks in the XRD patterns of films. The morphology of the film surface was studied by SEM. The SEM images show that the crystalline of the film prepared by multilayer synthesized method was granulated, But the crystalline of the film prepared by magnetron co-sputtering with needle shape. The grain size is a few hundred angstroms. The band gap has been estimated from the optical absorption studies and found to be about 1.40 eV for the sample by magnetron co-sputtering, and 1.45eV for the sample by multilayer synthesized, but all changes with the purity of CuInSi.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 3755-3761
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.3755
• Online since: October 2011
• Authors: Jian Sheng Xie, Jin Hua Li, Ping Luan
• Keywords: Annealing Temperature, CuInSi Nanocomposite Film, Magnetron Co-Sputtering, Magnetron Sputtering, Multilayer Synthesized

References

[1] Andrea Campera, Giuseppe Iannaccone. Modelling and simulation of charging and discharging processes in nanocrystal flash memories during program and erase operations. Solid-State Electronics, 49 (2005): 1745-1753.

DOI: 10.1016/j.sse.2005.10.002

[2] Chyuan Haur Kao, Chao Sung Lai, Chen Sheng Huang, K.M. Fan. Ge nanocrystal charge trapping devices fabricated by one-step oxidation on poly-SiGe. Applied Surface Science, 255, ( 2008): 2512-2516.

DOI: 10.1016/j.apsusc.2008.07.195

[3] D. E. Milovzorov, A. M. Ali, T. Inokuma, et al. Optical properties of silicon nanocrystallites in polycrystalline silicon films prepared at low temperature by plasma-enhanced chemical vapor deposition Thin Solid Films, 382(2001): 47-55.

DOI: 10.1016/s0040-6090(00)01208-6

[4] N. Khemiri, F. Chaffar Akkari, M. Kanzari, B. Rezig. Highly absorbing Cu–In–O thin films for photovoltaic applications. Thin Solid Films 516(2008): 7031-5.

DOI: 10.1016/j.tsf.2007.12.070

[5] G. Uppercuts, Z. Phys. 139 (1954) 504.

[6] R.L. Weiher, R.P. Ley, Optical properties of indium oxside. J. Appl. Phys. 37 (1966) 299.
