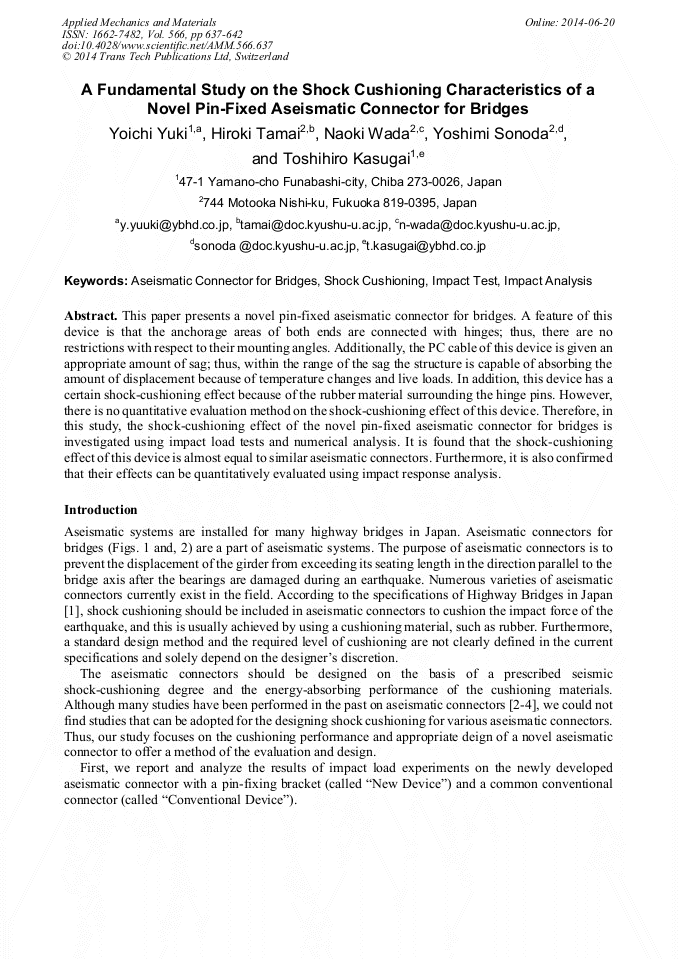

A Fundamental Study on the Shock Cushioning Characteristics of a Novel pin-Fixed Aseismatic Connector for Bridges

Abstract:

This paper presents a novel pin-fixed aseismatic connector for bridges. A feature of this device is that the anchorage areas of both ends are connected with hinges; thus, there are no restrictions with respect to their mounting angles. Additionally, the PC cable of this device is given an appropriate amount of sag; thus, within the range of the sag the structure is capable of absorbing the amount of displacement because of temperature changes and live loads. In addition, this device has a certain shock-cushioning effect because of the rubber material surrounding the hinge pins. However, there is no quantitative evaluation method on the shock-cushioning effect of this device. Therefore, in this study, the shock-cushioning effect of the novel pin-fixed aseismatic connector for bridges is investigated using impact load tests and numerical analysis. It is found that the shock-cushioning effect of this device is almost equal to similar aseismatic connectors. Furthermore, it is also confirmed that their effects can be quantitatively evaluated using impact response analysis.

• Periodical: Applied Mechanics and Materials (Volume 566)
• Pages: 637-642
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.566.637
• Online since: June 2014
• Authors: Yoichi Yuki*, Hiroki Tamai, Naoki Wada, Yoshimi Sonoda, Toshihiro Kasugai
• Keywords: Aseismatic Connector for Bridges, Impact Analysis, Impact Test, Shock Cushioning

References

[1] Japan Road Association: Specifications for Highway Bridges Part V Seismic Design. (2012) (in Japanese).

[2] Y. Sonoda, Y. Etou, N. Ishikawa, N. Ikoma and H. Hikosaka: Experimental Study on the Effect of Fiber Reinforced Rubber-Rolled Pin of the Bridge Restrainer Plate System, Journal of Society of Civil Engineer–, Japan Society of Civil Engineer, No. 598/I-44, (1998).

DOI: 10.2208/jscej.1998.598_333

[3] S. Takeno, H. Ohno, and K. Izuno: Velocity-Based Design of Seismic Unseating Prevention Cable and Shock Absorber for Bridges, Journal of Society of Civil Engineer–, Japan Society of Civil Engineer, No. 731/I-63, (2003), p.341-p.352. (in Japanese).

DOI: 10.2208/jscej.2003.731_341

[4] Y. Yuki, K. Ikezue, T. Kasugai and S. Oshita: IMPACT LOAD EXPERIMENT FOR A FALLING-DOWN PREVENTION DEVICE FOR BRIDGES, 9th International Conference on Shock & Impact Loads on Structures, Fukuoka, Japan, Nov. 16-18. (2011).

[5] N. Kishi: Practical Methods for Impact Test and Analysis, Structual engineering Series 15, Japan, January. (2004) (in Japanese).
