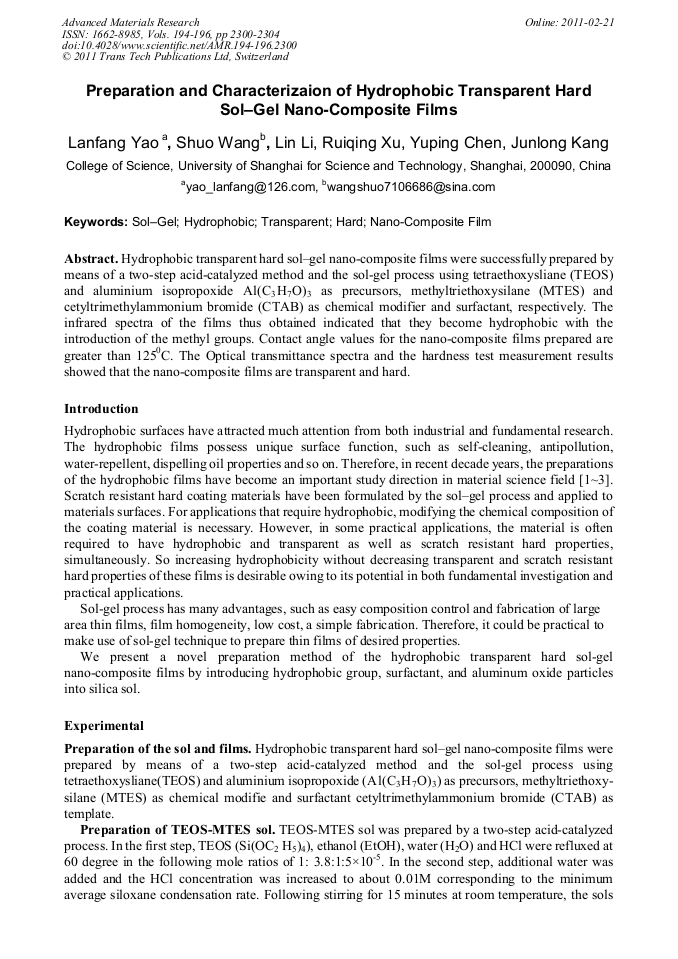

Preparation and Characterizaion of Hydrophobic Transparent Hard Sol–Gel Nano-Composite Films

Lan Fang Yao; Shuo Wang; Lin Li; Rui Qing Xu; Yu Ping Chen; Jun Long Kang

doi:10.4028/www.scientific.net/AMR.194-196.2300

Paper Titles

Analysis of T-Peel Weld-Bonded Joint with Single Overlap Support
p.2276

Effect of Aging Treatment on Microstructure and Wear Behaviour of a Nickel Based Hardfaced Coating
p.2284

Surface Characteristics of Ni-Mn-Fe-Ga Sputtered Thin Films
p.2290

Preparation and Characterization of Ce-Implanted TiO₂ Thin Films
p.2296

Preparation and Characterizaion of Hydrophobic Transparent Hard Sol–Gel Nano-Composite Films
p.2300

Dependence of Film Thickness on Properties of Al Doped ZnO Thin Films
p.2305

Effect of Film Thickness on the Structural and Physical Properties of CdZnTe Thin Films
p.2312

Preparation of C₆₀ Thin Film and Investigation of its Optical Properties
p.2317

Preparation and Dielectric Measurement of Pb(Zr_0.95Ti_0.05)O₃ Ferroelectric Films
p.2322

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 194-196Preparation and Characterizaion of Hydrophobic...

Preparation and Characterizaion of Hydrophobic Transparent Hard Sol–Gel Nano-Composite Films

Abstract:

Hydrophobic transparent hard sol–gel nano-composite films were successfully prepared by means of a two-step acid-catalyzed method and the sol-gel process using tetraethoxysliane (TEOS) and aluminium isopropoxide Al(C₃H₇O)₃ as precursors, methyltriethoxysilane (MTES) and cetyltrimethylammonium bromide (CTAB) as chemical modifier and surfactant, respectively. The infrared spectra of the films thus obtained indicated that they become hydrophobic with the introduction of the methyl groups. Contact angle values for the nano-composite films prepared are greater than 125°C. The Optical transmittance spectra and the hardness test measurement results showed that the nano-composite films are transparent and hard.
