Influence of the Quality of AlN Buffer Layer on the Quality of GaN Epitaxial Layer on Silicon Substrate

Abstract:

The effect of AlN buffer layer on the quality of GaN epilayer grown on Si substrate by metalorganic chemical vapor deposition (MOCVD) has been investigated. It was found that the quality of GaN epilayer strongly related with the crystal quality of AlN buffer layer. As the full width at half maximum (FWHM) of AlN (0 0 2) plane increased from 1.23 degree to 3.41 degree, the FWHM of GaN (0 0 2) plane varied from 432 arcsec to 936 arcsec and the FWHM of GaN (1 0 2) plane varied from 677 arcsec to 1226 arcsec. Besides, more cracks formed and threading dislocation (TD) density increased. The deteriorated AlN buffer layer also led to a rougher morphology of the GaN layer, as can be seen from the root mean square (RMS) roughness of GaN layer which varied from 0.178 nm to 0.476 nm. And the morphology of AlN and the quality of GaN epilayer are not appear to be relevant due to the ruleless values of RMS roughness of AlN.

You might also be interested in these eBooks

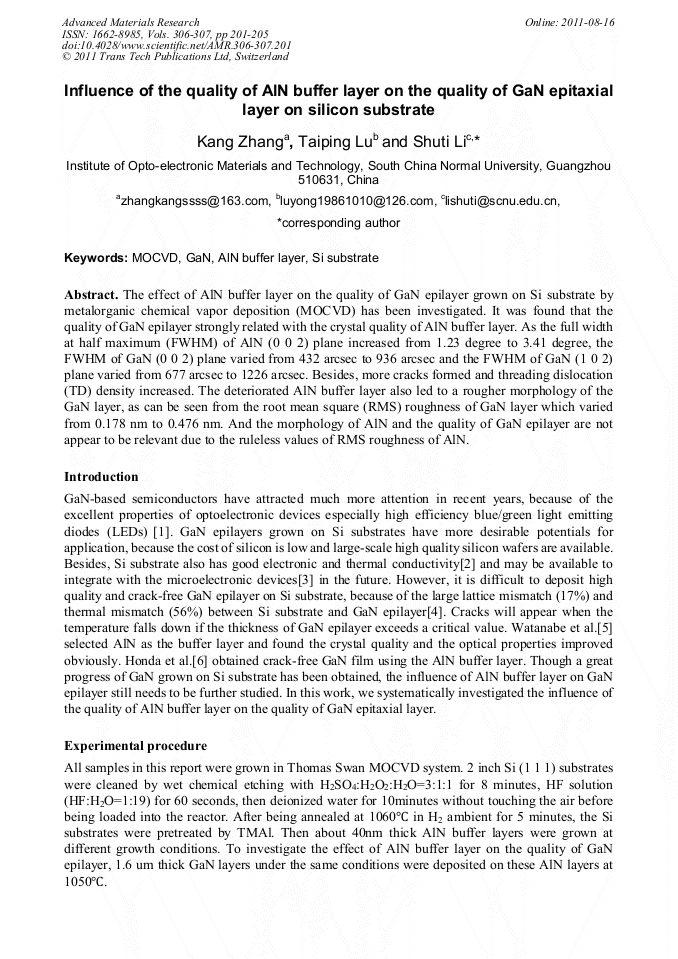

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 306-307)

Pages:

201-205

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.306-307.201

Citation:

Cite this paper

Online since:

August 2011

Authors:

Kang Zhang, Tai Ping Lu, Shu Ti Li

Keywords:

AlN Buffer Layer, Gallium Nitride (GaN), MOCVD, Si Substrate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. H. Kim, C. O. Cho, Y. G. Roh, et al, Enhanced light extraction from GaN-based light-emitting diodes with holographically generated two-dimensional photonic crystal patterns, Appl. Phys. Lett. 87 (2005) 203508.

DOI: 10.1063/1.2132073

Google Scholar

[2] P. R. Hageman, S. Haffouz, V. Kirilyuk, et al, High quality GaN layers on Si(111) substrates: AlN buffer layer optimization and insertion of a SiN intermediate layer, Phys Stat Sol (a) 188 (2001) 523-526.

DOI: 10.1002/1521-396x(200112)188:2<523::aid-pssa523>3.0.co;2-r

Google Scholar

[3] W. S. Wong, T. Sands, N. W. Cheung, et al, InxGaN1-xN light emitting diodes on Si substrates fabricated by Pd-In metal bonding and laser lift-off, Appl. Phys. Lett. 77 (2000) 2822-2824.

DOI: 10.1063/1.1319505

Google Scholar

[4] S. Guha and N. A. Bojarczuk, Ultraviolet and violet GaN light emitting diodes on silicon, Appl. Phys. Lett. 72 (1998) 415-417.

DOI: 10.1063/1.120775

Google Scholar

[5] A. Watanabe, T. Takeuchi, K. Hirosawa, et al, The growth of single crystalline GaN on a Si substrate using AlN as an intermediate layer, J. Cryst. Growth 128 (1993) 391-396.

DOI: 10.1016/0022-0248(93)90354-y

Google Scholar

[6] Y. Honda, Y. Kuroiwa, M. Yamaguchi, et al, Growth of GaN free from cracks on a (111)Si substrate by selective metalorganic vapor-phase epitaxy, Appl. Phys. Lett. 80 (2002) 222-224.

DOI: 10.1063/1.1432764

Google Scholar
