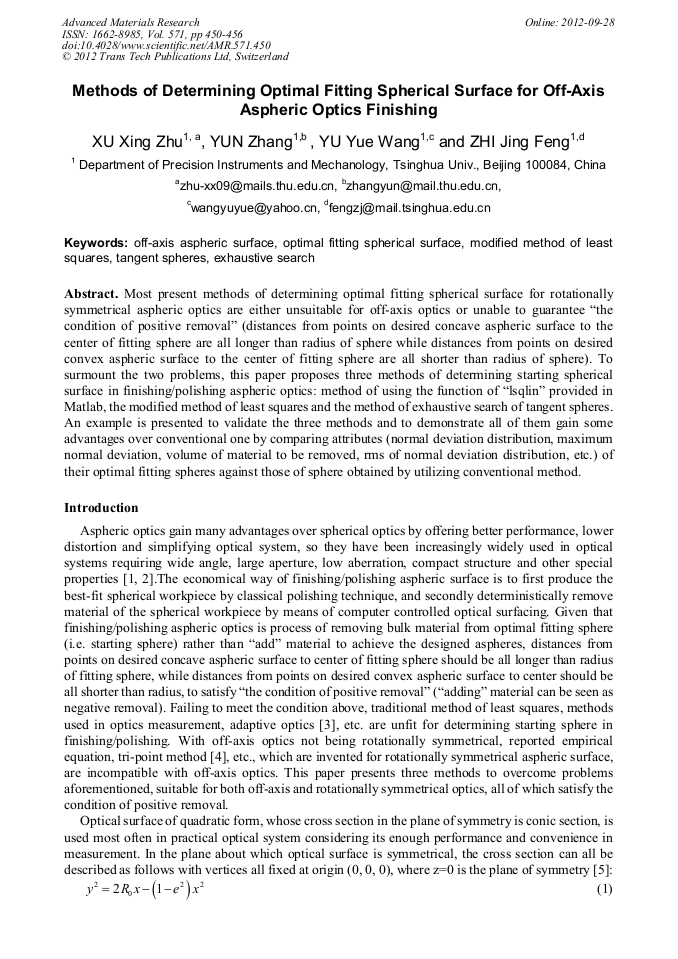

Methods of Determining Optimal Fitting Spherical Surface for Off-Axis Aspheric Optics Finishing

Abstract:

Most present methods of determining optimal fitting spherical surface for rotationally symmetrical aspheric optics are either unsuitable for off-axis optics or unable to guarantee “the condition of positive removal” (distances from points on desired concave aspheric surface to the center of fitting sphere are all longer than radius of sphere while distances from points on desired convex aspheric surface to the center of fitting sphere are all shorter than radius of sphere). To surmount the two problems, this paper proposes three methods of determining starting spherical surface in finishing/polishing aspheric optics: method of using the function of “lsqlin” provided in Matlab, the modified method of least squares and the method of exhaustive search of tangent spheres. An example is presented to validate the three methods and to demonstrate all of them gain some advantages over conventional one by comparing attributes (normal deviation distribution, maximum normal deviation, volume of material to be removed, rms of normal deviation distribution, etc.) of their optimal fitting spheres against those of sphere obtained by utilizing conventional method.

• Periodical: Advanced Materials Research (Volume 571)
• Pages: 450-456
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.571.450
• Online since: September 2012
• Authors: Xing Zhu Xu, Zhang Yun, Yue Wang Yu, Jing Feng Zhi
• Keywords: Exhaustive Search, Modified Method of Least Squares, Off-Axis Aspheric Surface, Optimal Fitting Spherical Surface, Tangent Spheres

References

[1] L. Y. Zha and H. H. Lin: Study of Optics Manufacturing Process Parameters. Beijing: Arms Industry Press (1987).

[2] T. Kohler and C. Beder: High precision aspheres for professional cine lenses –design and manufacturing, Proc. of SPIE. Optical Manufacturing and Testing VII, Vol. 6671, p. 66710L-1-66710L-9, doi: 10. 1117/12. 738543 (Aug. 2007).

DOI: 10.1117/12.738543

[3] C. M. Zeng and J. C. Yu: Aspherical grads method for calculating best fitting sphere of ultra-thin mirror and finite element analysis, Optical Technique, Vol. 34, pp.323-327 (May. 2008).

[4] H. J. Wang, A. L. Tian and Y. J. Du: Determination of aspheric reference sphere by tri- point method, J. Applied Optics, Vol. 25, pp.63-65 (in Chinese) (Jul. 2004).

[5] J. H. Pan: Design, Fabrication and Measurement of Optical Aspheric Surface. Beijing: Science Press, (in Chinese) (1994).

[6] Y. Zhang: Research on CNC Magnetorheological Finishing Technology for Optical Aspheric Surface. Beijing: Department of Precision Instruments & Mechanology Tsinghua University, (in Chinese) (2003).

[7] S. D. Jacobs, Fuqian Yang, E. M. Fess, J. B. Feingold, B. E. Gillman, W. I. Kordonski, H. Edwards, and D. Golini: Magnetorheological Finishing of IR Materials, Proc. of SPIE. Optical Manufacturing and Testing II, Vol. 3134, pp.258-269.

DOI: 10.1117/12.295132
