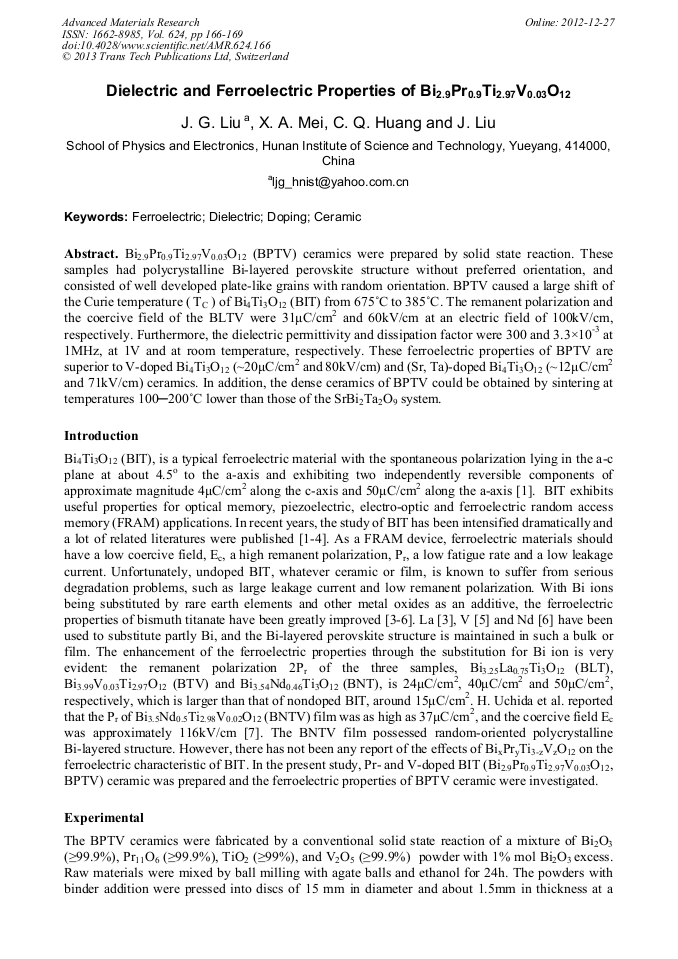

Dielectric and Ferroelectric Properties of Bi_2.9Pr_0.9Ti_2.97V_0.03O₁₂

Abstract:

Bi_2.9Pr_0.9Ti_2.97V_0.03O₁₂ (BPTV) ceramics were prepared by solid state reaction. These samples had polycrystalline Bi-layered perovskite structure without preferred orientation, and consisted of well developed plate-like grains with random orientation. BPTV caused a large shift of the Curie temperature ( TC ) of Bi₄Ti₃O₁₂ (BIT) from 675°C to 385°C. The remanent polarization and the coercive field of the BLTV were 31μC/cm² and 60kV/cm at an electric field of 100kV/cm, respectively. Furthermore, the dielectric permittivity and dissipation factor were 300 and 3.3×10-3 at 1MHz, at 1V and at room temperature, respectively. These ferroelectric properties of BPTV are superior to V-doped Bi₄Ti₃O₁₂ (~20μC/cm² and 80kV/cm) and (Sr, Ta)-doped Bi₄Ti₃O₁₂ (~12μC/cm² and 71kV/cm) ceramics. In addition, the dense ceramics of BPTV could be obtained by sintering at temperatures 100─200°C lower than those of the SrBi₂Ta₂O₉ system.

• Periodical: Advanced Materials Research (Volume 624)
• Pages: 166-169
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.624.166
• Online since: December 2012
• Authors: J.G. Liu, X.A. Mei, C.Q. Huang, J. Liu
• Keywords: Ceramic, Dielectric, Doping, Ferroelectric

References

[1] J. F. Scott, C. A. P. De Araujo, Ferroelectric memories. Science. 246 (1998) 1400-1404.

[2] H. N. Lee, D. Hesse, N. Zakharov, et al: Ferroelectric Bi3.25La0.75Ti3O12 films of uniform a-axis orientation on silicon substrates, Science. 296 (2002) 2006-2010.

[3] B. H. Park, B. S. Kang, S. D. Bu, et al: Lanthanum-substituted bismuth titanate for use in non-volatile memories, Nature. 401 (1999) 682-686.

DOI: 10.1038/44352

[4] T. Kojima, T. Sakai, T, Watanabe, et al: large remanent polarization of (Bi,Nd)4Ti3O12 epitaxial thin films grown by metalorganic chemical vapor deposition, Appl. Phys. Lett. 80 (2002) 2746-2750.

DOI: 10.1063/1.1468914

[5] Y. Noguchi, M. Miyayama, Large remanent of polarization of vanadium-doped Bi4Ti3O12, Appl Phys Lett. 78(2001) 1903-1907.

DOI: 10.1063/1.1357215

[6] Y. C. Chang, D. H. Kuo, The improvement in ferroelectric performance of (Bi3.15Nd0.85) 4Ti3O12 films By the addition of hydrogen peroxide in a spin-coating solution, Thin Solid Films. 515(2006) 1683-1687.

DOI: 10.1016/j.tsf.2006.06.024

[7] H. Uchida, H. Yoshikawa, I. Okada, et al: Approach for enhanced polarization of polycrystalline bismuth titanate films by Nd3+/V5+ cosubstitution, Appl. Phys. Lett. 81 (2002) 2229-2233.

DOI: 10.1063/1.1507839
