Surface Morphology and Structure Study of Titanium Dioxide Thin Films Deposited on PET Substrates

Yu Hui Zhang; Quan Ji; Xi Hua Pei

doi:10.4028/www.scientific.net/AMR.79-82.883

Paper Titles

Preparation and Electrochromic Properties of Mesoporous WO₃ Film
p.867

Preparation and Characterization of Lanthanum Self-Assembled Nano-Films
p.871

Deposition of Fluorocarbon Thin Films on Polypropylene Substrate by RF Magnetron Sputtering
p.875

Study on Technological Process of Cerium-Based Conversion Coating on Aluminum
p.879

Surface Morphology and Structure Study of Titanium Dioxide Thin Films Deposited on PET Substrates
p.883

Synthesis of CdS Nanoparticle/Amphiphilic Block Copolymer Composite Films and its Characteristics of Microstructures and Optoelectronic Properties
p.887

Characterization and Annealing Effects of Titanium Dioxide Films Prepared by a Sol-Gel Process
p.891

Atomic Structure of Hydrous Ruthenium Oxide Coating on Ti and CNT Substrate by Cathodic Deposition Method
p.895

Characterization and Photocatalytic Activity of Composite La-TiO₂/ITO Thin-Film Electrodes
p.899

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 79-82Surface Morphology and Structure Study of Titanium...

Surface Morphology and Structure Study of Titanium Dioxide Thin Films Deposited on PET Substrates

Abstract:

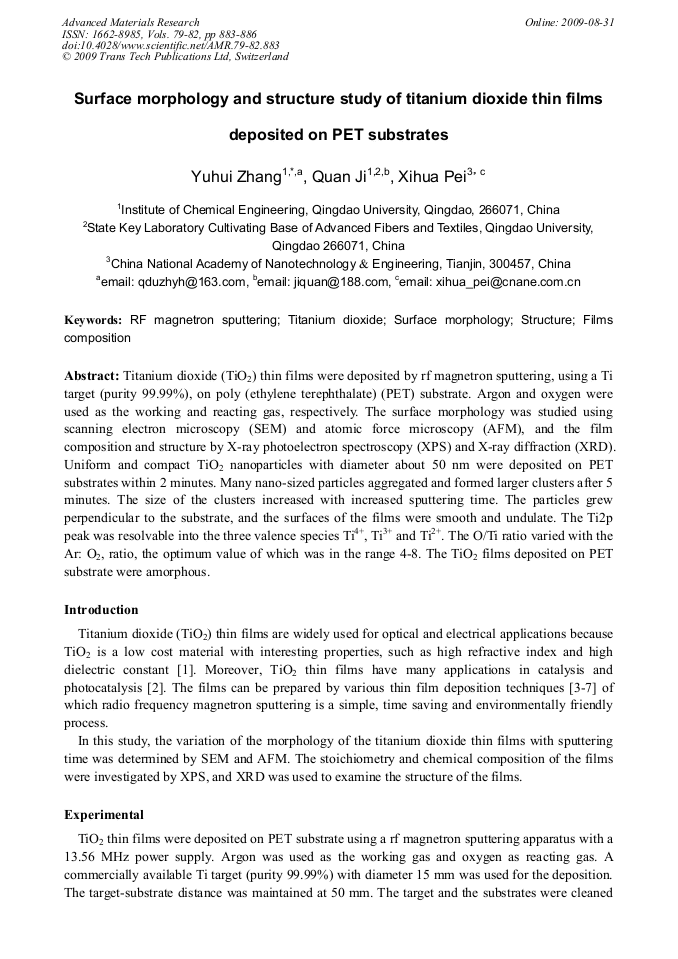

Titanium dioxide (TiO2) thin films were deposited by rf magnetron sputtering, using a Ti target (purity 99.99%), on poly (ethylene terephthalate) (PET) substrate. Argon and oxygen were used as the working and reacting gas, respectively. The surface morphology was studied using scanning electron microscopy (SEM) and atomic force microscopy (AFM), and the film composition and structure by X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD). Uniform and compact TiO2 nanoparticles with diameter about 50 nm were deposited on PET substrates within 2 minutes. Many nano-sized particles aggregated and formed larger clusters after 5 minutes. The size of the clusters increased with increased sputtering time. The particles grew perpendicular to the substrate, and the surfaces of the films were smooth and undulate. The Ti2p peak was resolvable into the three valence species Ti4+, Ti3+ and Ti2+. The O/Ti ratio varied with the Ar: O2, ratio, the optimum value of which was in the range 4-8. The TiO2 films deposited on PET substrate were amorphous.
