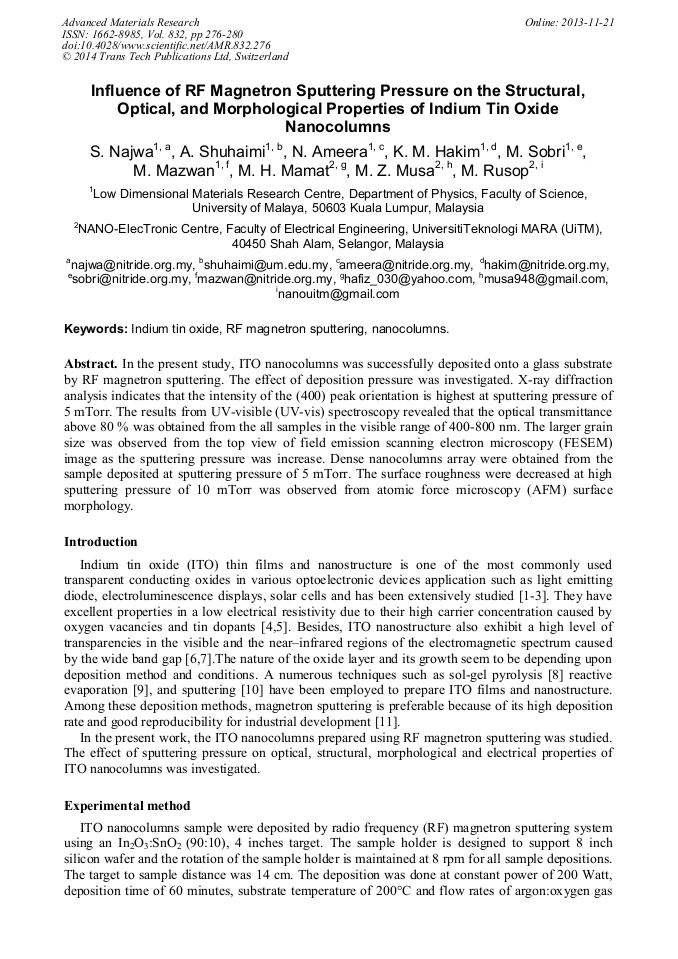

Influence of RF Magnetron Sputtering Pressure on the Structural, Optical, and Morphological Properties of Indium Tin Oxide Nanocolumns

Abstract:

In the present study, ITO nanocolumn was successfully deposited onto a glass substrate by RF magnetron sputtering. The effect of deposition pressure was investigated. X-ray diffraction analysis indicates that the intensity of the (400) peak orientation is highest at sputtering pressure of 5 mTorr. The results from UV-visible (UV-vis) spectroscopy revealed that the optical transmittance above 80 % was obtained from the all samples in the visible range of 400-800 nm. The larger grain size was observed from the top view of field emission scanning electron microscopy (FESEM) image as the sputtering pressure was increase. Dense nanocolumn arrays were obtained from the sample deposited at sputtering pressure of 5 mTorr. The surface roughness were decreased at high sputtering pressure of 10 mTorr was observed from atomic force microscopy (AFM) surface morphology. The electrical properties were obtained using standard two-point probe measurements. The lowest electrical resistivity was determined from the sample that prepared at sputtering pressure of 5 mTorr.

• Periodical: Advanced Materials Research (Volume 832)
• Pages: 276-280
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.832.276
• Online since: November 2013
• Authors: S. Najwa, Ahmad Shuhaimi Abu Bakar, N. Ameera, K.M. Hakim, M. Sobri, M. Mazwan, Mohamad Hafiz Mamat, M.Z. Musa, Mohamad Rusop
• Keywords: Indium Tin Oxide (ITO), Nanocolumn, RF Magnetron Sputtering

References

[1] J. O. Song, J. S. Ha, T. Y. Seong, Ohmic contact technology for GaN-based LEDs: role of p-type Contact, IEEE Trans on Electron Dev. 57, (2010) 42-59.

DOI: 10.1109/ted.2009.2034506

[2] N. R. Armstrong, P. A. Veneman, E. Ratcliff, D. Palencia, M. Brumbach, Oxide contacts in organic photovoltaics: characterization and control of near-surface composition in indium-tin oxide (ITO) electrodes, Acc. Chem. Res. 42 (2009) 1748-1757.

DOI: 10.1021/ar900096f

[3] L. J. Meng, J. M. P. Santos, Properties of indium tin oxide (ITO) films prepared by r.f. reactive magnetron sputtering at different pressures, Thin Solid Films 303 (I997) 151-155.

DOI: 10.1016/s0040-6090(97)00050-3

[4] R. B. H. Tahar, T. Ban, Y. Ohya and Y. Takahashi, Tin doped indium oxide thin films: Electrical properties, J. Appl. Phys. 83 (1998) 2631-2646.

DOI: 10.1063/1.367025

[5] S. Major, A. Banerjee and K. L. Chopra, Annealing Studies of Undoped and Indium Doped Films of Zinc Oxide, Thin Solid Films, 122 (1984) 31-43.

DOI: 10.1016/0040-6090(84)90376-6

[6] L. Kerkache, A. Layadi, E, Dogheche and D. Remiens, Physical properties of RF sputtered ITO thin films and annealing effect, J. Phys. D: Appl. Phys. 39 (2006) 184-189.

DOI: 10.1088/0022-3727/39/1/027

[7] J. H. Kim, B. D. Ahn, C. H. Lee, K. A. Jeon, H. S. Kang, G. H. Kim and S. Y. Lee, Characteristics of transparent ZnO based thin film transistors with amorphous HfO2 gate insulators and Ga doped ZnO electrodes, Thin Solid Films 516 (2008) 1529-1532.

DOI: 10.1016/j.tsf.2007.03.101

[8] M. Yamaguchi, A. Ektessabi, H. Nomura, N. Yasui, Characteristics of indium tin oxide thin films prepared using electron beam evaporation, Thin Solid Fil. 447 (2004) 115-118.

DOI: 10.1016/j.tsf.2003.09.033

[9] D. Kim, S. Kim,AFM observation of ITO thin films deposited on polycarbonate substrates by sputter type negative metal ion source, Surf. Coat. Technol. 176 (2003) 23–29.

DOI: 10.1016/s0257-8972(03)00514-0

[10] N. Danson, I. Safi, G.W. Hall, R.P. Howson, Techniques for the sputtering of optimum indium-tin oxide-films on toroom-temperature substrates, Surf. Coat. Technol. 99 (1998) 147-160.

DOI: 10.1016/s0257-8972(97)00436-2

[11] H.C. Lee, J.-Y. Seo, Y.-W. Choi , D.-W. Lee, Electron scattering mechanisms in indium-tin-oxide thin films: grain boundary and ionized impurity scattering, Vacuum 72 (2004) 275-282.

DOI: 10.1016/j.vacuum.2004.03.008

[12] M. S. Huh., B. S. Yang, J. Song, J. Heo, S. J, Won, J. K. Jeong, C. s. Hwang, H. J. Kim, Improving the morphological and optical properties of sputtered indium tin oxide thin films by adopting ultralow-pressure sputtering, J. Electrochem. Soc. 156 (2009) 6-11.

DOI: 10.1149/1.3005562

[13] K. H. Lee, H. W. Jang, K. B. Kim, Y. H. Tak, J. L. Lee, Mechanism for the increase of indium-tin-oxide work function by O2 inductively coupled plasma treatment, J. Appl. Phys. 95 (2004) 586-591.

DOI: 10.1063/1.1633351

[14] C.G. Granqvist, A. Hultaker, Transparent and conducting ITO films: new developments and applications, Thin Solid Films 411(2002) 1-5.

DOI: 10.1016/s0040-6090(02)00163-3
