On the Mobility Behavior in Highly Doped Junctionless Nanowire SOI MOSFETs

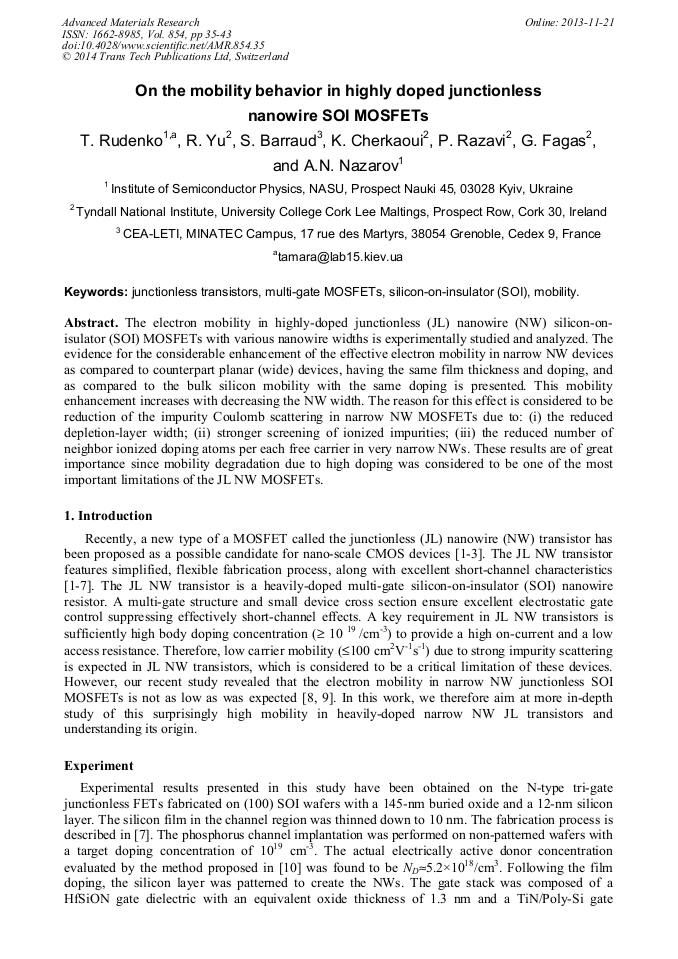

Article Preview

Abstract:

The electron mobility in highly-doped junctionless (JL) nanowire (NW) silicon-on-isulator (SOI) MOSFETs with various nanowire widths is experimentally studied and analyzed. The evidence for the considerable enhancement of the effective electron mobility in narrow NW devices as compared to counterpart planar (wide) devices, having the same film thickness and doping, and as compared to the bulk silicon mobility with the same doping is presented. This mobility enhancement increases with decreasing the NW width. The reason for this effect is considered to be reduction of the impurity Coulomb scattering in narrow NW MOSFETs due to: (i) the reduced depletion-layer width; (ii) stronger screening of ionized impurities; (iii) the reduced number of neighbor ionized doping atoms per each free carrier in very narrow NWs. These results are of great importance since mobility degradation due to high doping was considered to be one of the most important limitations of the JL NW MOSFETs.

You might also be interested in these eBooks

Functional Nanomaterials and Devices VII

Info:

Periodical:

Advanced Materials Research (Volume 854)

Pages:

35-43

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.854.35

Citation:

Cite this paper

Online since:

November 2013

Authors:

Tamara Rudenko, R. Yu, S. Barraud, K. Cherkaoui, P. Razavi, G. Fagas, A.N. Nazarov

Keywords:

Junctionless Transistors, Mobility, Multi-Gate MOSFETs, Silicon-on-Insulator (SOI)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C. -W. Lee, A. Afzalian, N.D. Akhavan, R. Yan, I. Ferain, and J. -P. Colinge, Appl. Phys. Lett. 94 (2009) 053511.

DOI: 10.1063/1.3079411

[2] J. -P. Colinge, C.W. Lee, A. Afzalian, N.D. Akhavan, R. Yan, I. Ferain, P. Razavi, B. O'Neill, A. Blake, M. White, A.M. Kelleher, B. McCarthy, and R. Murphy, Nature Nanotechnology 5 (2010) 225.

DOI: 10.1038/nnano.2010.15

[3] C. -W. Lee, A. Afzalian, R. Yan, N. Dehdashti, and J. -P. Colinge, in: Proceedings of EUROSOI 2009, 20-21 January 2009, Goteborg, Sweden, pp.21-22.

[4] A. Kranti, R. Yan, C. -W. Lee, I. Ferain, R. Yu, N.D. Akhavan, P. Razavi, and J. -P. Colinge, in: Proceedings of ESSDERC 2010, 14-16 September 2010, pp.357-360.

DOI: 10.1049/el.2010.2736

[5] C. -W. Lee, I. Ferain, A. Afzalian, R. Yan, N.D. Akhavan, P. Razavi, and J. -P. Colinge, Solid-State Electronics 54 (2010) 97.

DOI: 10.1016/j.sse.2009.12.003

[6] R. Rios, A. Cappellani, M. Armstrong, A. Budrevich, H. Gomez, R. Pai, N. Rahhal-orabi, K. Kuhn, IEEE Electron Dev. Lett. 32 (2011) 1170.

DOI: 10.1109/led.2011.2158978

[7] S. Barraud, M. Berthomé, R. Coquand, M. Cassé, T. Ernst, M. -P. Samson, P. Perreau, K.K. Bourdelle, O. Faynot, and T. Poiroux: IEEE Electron Dev. Lett. 33 (2012) 1225.

DOI: 10.1109/led.2012.2203091

[8] T. Rudenko, A. Nazarov, I. Ferain, S. Das, R. Yu, S. Barraud, and P. Razavi: Appl. Phys. Lett. 101 (2012) 213502.

DOI: 10.1063/1.4767353

[9] T. Rudenko, A. Nazarov, R. Yu, S. Barraud, K. Cherkaoui, P. Razavi, and G. Fagas, Microelectronic Engineering 109 (2013) 326.

DOI: 10.1016/j.mee.2013.03.050

[10] T. Rudenko, R. Yu, S. Barraud, K. Cherkaoui, and A. Nazarov, IEEE Electron Dev. Lett. 34 (2013) 957.

[11] C.G. Sodini, T.W. Ekstedt, and J. L. Moll, Solid-State Electronics 25 (1982) 833.

[12] M. Finetti and A.M. Mazone, J. Appl. Phys. 48 (1977) 4597.

[13] M. Shoji, and S. Horiguchi, J. Appl. Phys. 85(1999) 2722.

[14] F. Gámiz, J.B. Roldán, J.A. López-Villanueva, P. Cartujo-Cassinello, J.E. Carceller, P. Cartujo, F. Jiménez- Molinos, Solid-State Electronics 45 (2001) 613.

DOI: 10.1016/s0038-1101(01)00076-4

[15] C. -W. Lee, A. Borne, I. Ferain, A. Afzalian, R. Yan, N. Dehdashti, and J.P. Colinge: IEEE Transactions on Electron Devices 57 (2010) 625.

DOI: 10.1109/ted.2009.2039093

[16] T. Ando, A.B. Fowler, and F. Stem, Rev. Mod. Phys 54 (1982) 437.

[17] F. Gamiz, J.A. Lopez-Villanueva, J.A. Jimenez-Tejada, and A. Palma, J. Appl. Phys. 75 (1994) 924.

[18] H.K. Sy, D.K. Desai, C.K. Ong, Physica Status Solidi (b) 130 (1985) 787.

[19] D.B.M. Klaassen: Solid-State Electronics 35 (1992) 953.

[20] Y. Ohno and and Y. Okuto: IEEE Transactions on Electron Devices 29 (1982)190.

[21] J.B. McKeon, G. Chindalore, S.A. Hareland, W. -K. Shih, C. Wang, A.F. Tasch, Jr., C.M. Maziar, IEEE Electron Dev. Lett. 18 (1997) 200.

DOI: 10.1109/55.568762

[22] K. -I. Goto, T. -H. Yu, J. Wu, C.H. Diaz, and J. -P. Colinge, Appl. Phys. Lett. 101 (2012) 073503.

[23] Synopsis, Inc., Mountain View, CA, C-2009. 06 ed., Sentaurus Device Reference Manual (2009).

[24] N. Kadotani, T. Takahashi, T. Ohashi, S. Oda, and K. Uchida, J. Appl. Phys. 110 (2011) 034502.
