Novel Design of Vertical Undivided Electrochemical Cell with Concentric Electrodes for Continuous Production of Sodium Hypochlorite
p.119

Novel Design of Vertical Undivided Electrochemical Cell with Concentric Electrodes for Continuous Production of Sodium Hypochlorite

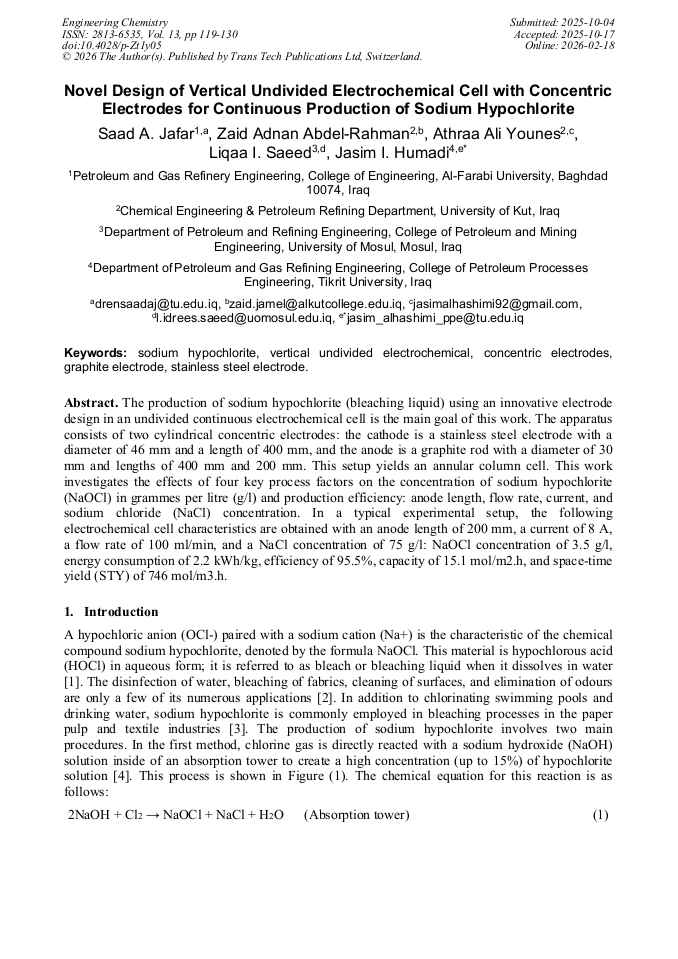

Article Preview
View Pdf Read Epub By email

Abstract:

The production of sodium hypochlorite (bleaching liquid) using an innovative electrode design in an undivided continuous electrochemical cell is the main goal of this work. The apparatus consists of two cylindrical concentric electrodes: the cathode is a stainless steel electrode with a diameter of 46 mm and a length of 400 mm, and the anode is a graphite rod with a diameter of 30 mm and lengths of 400 mm and 200 mm. This setup yields an annular column cell. This work investigates the effects of four key process factors on the concentration of sodium hypochlorite (NaOCl) in grammes per litre (g/l) and production efficiency: anode length, flow rate, current, and sodium chloride (NaCl) concentration. In a typical experimental setup, the following electrochemical cell characteristics are obtained with an anode length of 200 mm, a current of 8 A, a flow rate of 100 ml/min, and a NaCl concentration of 75 g/l: NaOCl concentration of 3.5 g/l, energy consumption of 2.2 kWh/kg, efficiency of 95.5%, capacity of 15.1 mol/m2.h, and space-time yield (STY) of 746 mol/m3.h.

You might also be interested in these eBooks
Engineering Chemistry Vol. 13 View Preview

Info:

Periodical:

Engineering Chemistry (Volume 13)

Pages:

119-130

DOI:

https://doi.org/10.4028/p-Zt1y05

Citation:

Cite this paper

Online since:

February 2026

Authors:

Saad A. Jafar*, Zaid Adnan Abdel-Rahman, Athraa Ali Younes, Liqaa I. Saeed, Jasim Ibrahim Humadi

Keywords:

Concentric Electrodes, Graphite Electrode, Sodium Hypochlorite, Stainless Steel Electrode, Vertical Undivided Electrochemical

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] G. P. Ponzano, "Sodium hypochlorite: history, properties, electrochemical production," in Disinfection by Sodium Hypochlorite: Dialysis Applications, vol. 154, p.7–23, Basel, Switzerland: Karger Publishers, 2007.

DOI: 10.1159/000096810

Google Scholar

[2] N. A. Abu Ghalwa, H. Tamos, M. ElAskalni, and A. R. El Agha, "Generation of sodium hypochlorite (NaOCl) from sodium chloride solution using C/PbO₂ and Pb/PbO₂ electrodes," International Journal of Minerals, Metallurgy, and Materials, vol. 19, no. 6, p.561–566, 2012.

DOI: 10.1007/s12613-012-0596-0

Google Scholar

[3] V. Rengarajan, G. Sozhan, and K. C. Narasimham, "Influence factors in the electrolytic production of sodium hypochlorite," Bulletin of Electrochemistry, vol. 12, no. 5, p.327–328, 1996.

Google Scholar

[4] M. Spasojević, N. Krstajić, P. Spasojević, and L. Ribić-Zelenović, "Modelling current efficiency in an electrochemical hypochlorite reactor," Chemical Engineering Research and Design, vol. 93, p.591–601, 2015.

DOI: 10.1016/j.cherd.2014.07.025

Google Scholar

[5] K. Asokan and K. Subramanian, "Design of a tank electrolyser for in-situ generation of NaClO," in Proc. World Congress on Engineering and Computer Science, San Francisco, USA, Oct. 2009, vol. 1, p.139–142.

Google Scholar

[6] A. Boal, "On-site generation of disinfectants," National Environmental Services Center, vol. 9, no. 1, 2009.

Google Scholar

[7] M. Saleem, "Biofouling management in the cooling circuit of a power industry using electrochemical process," Journal of the Chemical Society of Pakistan, vol. 33, no. 3, p.295, 2011.

Google Scholar

[8] S. Esposto, "On-site electro-chlorination application for water treatment in North Iraq," Water Science and Technology: Water Supply, vol. 9, no. 4, p.387–393, 2009.

DOI: 10.2166/ws.2009.392

Google Scholar

[9] E. Ö. Çelik, Ü. Ö. Akdemir, and H. Çelik, "Liquid, gas chlorine and on-site generation in drinking water facilities: design consideration and comparison of operating costs," Çukurova University Journal of the Faculty of Engineering and Architecture, vol. 32, no. 3, p.81–89, Sep. 2017.

Google Scholar

[10] L. R. Czarnetzki and L. J. J. Janssen, Aspects of Electrochemical Production of Hypochlorite and Chlorate. Eindhoven, The Netherlands: Eindhoven University of Technology, 1989.

Google Scholar

[11] D. L. Key et al., Development of a Small-Scale Electro-Chlorination System for Rural Water Supply. Pretoria, South Africa: Water Research Commission, 2010.

Google Scholar

[12] A. A. Afify et al., "Electrochemical production of sodium hypochlorite from salty water using a flowing porous graphite electrode," Energies, vol. 16, no. 12, p.4754, 2023.

DOI: 10.3390/en16124754

Google Scholar

[13] T. Zayas et al., "Electrogeneration of hypochlorite ions using a dimensionally stable anode," Journal of Electrochemical Science and Technology, 2024.

Google Scholar

[14] J. T. M. Collana et al., "Electrosynthesis of sodium hypochlorite using ion-exchange membranes," Chemical Engineering Transactions, vol. 117, 2025.

Google Scholar
