Polycaprolactone Mechanical Properties Evaluation for Biomedical Application

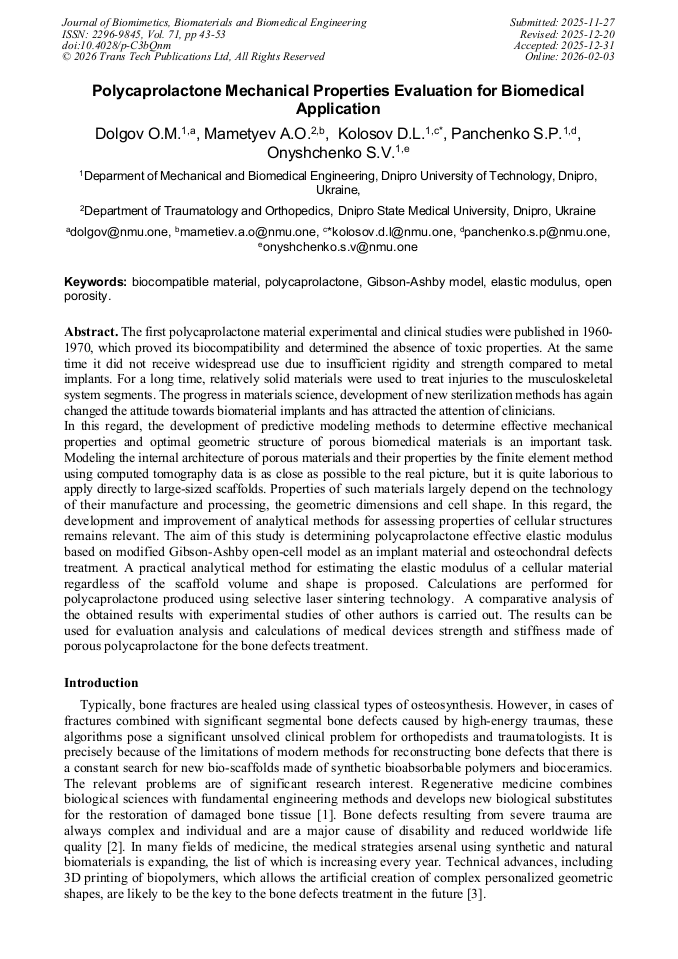

Article Preview

Abstract:

The first polycaprolactone material experimental and clinical studies were published in 1960-1970, which proved its biocompatibility and determined the absence of toxic properties. At the same time it did not receive widespread use due to insufficient rigidity and strength compared to metal implants. For a long time, relatively solid materials were used to treat injuries to the musculoskeletal system segments. The progress in materials science, development of new sterilization methods has again changed the attitude towards biomaterial implants and has attracted the attention of clinicians. In this regard, the development of predictive modeling methods to determine effective mechanical properties and optimal geometric structure of porous biomedical materials is an important task. Modeling the internal architecture of porous materials and their properties by the finite element method using computed tomography data is as close as possible to the real picture, but it is quite laborious to apply directly to large-sized scaffolds. Properties of such materials largely depend on the technology of their manufacture and processing, the geometric dimensions and cell shape. In this regard, the development and improvement of analytical methods for assessing properties of cellular structures remains relevant. The aim of this study is determining polycaprolactone effective elastic modulus based on modified Gibson-Ashby open-cell model as an implant material and osteochondral defects treatment. A practical analytical method for estimating the elastic modulus of a cellular material regardless of the scaffold volume and shape is proposed. Calculations are performed for polycaprolactone produced using selective laser sintering technology. A comparative analysis of the obtained results with experimental studies of other authors is carried out. The results can be used for evaluation analysis and calculations of medical devices strength and stiffness made of porous polycaprolactone for the bone defects treatment.

You might also be interested in these eBooks
Journal of Biomimetics, Biomaterials and Biomedical Engineering Vol. 71 View Preview

Info:

Periodical:

Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 71)

Pages:

43-53

DOI:

https://doi.org/10.4028/p-C3bQnm

Citation:

Cite this paper

Online since:

February 2026

Authors:

Oleksandr Mykhailovych Dolgov, Andriy Oleksandrovich Mametyev, Dmytro Leonidovych Kolosov*, Serhiy Pavlovych Panchenko, Serhii Valeriyovych Onyshchenko

Keywords:

Biocompatible Material, Elastic Modulus, Gibson-Ashby Model, Open Porosity, Polycaprolactone

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Le-Yi Zhang, Qing Bi, Chen Zhao, Jin-Yang Chen, Mao-Hua Cai, Xiao-Yi Chen. Recent Advances in Biomaterials for the Treatment of Bone Defects. (2020). 6(4):113–125

DOI: 10.1080/15476278.2020.1808428

Google Scholar

[2] Einhorn TA. Clinical Applications of Recombinant Human BMPs: Early Experience and Future Development. J Bone Joint Surg Am. (2003). 85:82–88. [PubMed: 12925614]

DOI: 10.2106/00004623-200300003-00014

Google Scholar

[3] Biomaterials for bone tissue engineering: achievements to date and future directions. Garimella A, Ghosh SB, Bandyopadhyay-Ghosh S. Biomed Mater. (2024). Dec 5; 20(1).

DOI: 10.1088/1748-605X/ad967c

Google Scholar

[4] Gibson, L.J., Ashby, M.F., Harley, B.A. Cellular Materials in Nature and Medicine, 1st ed.; Cambridge University Press: Cambridge, UK 2010.

Google Scholar

[5] Walaa Abd-Elaziem, Moustafa M. Mohammed, Hossam M. Yehia, Tamer A Sebaey, Tabrej Khan. Porous Titanium for Medical Implants. Multidisciplinary Materials Chronicles. (2024). Vol. 1, Iss. 1, 1-18

DOI: 10.62184/mmc.jmmc100020241

Google Scholar

[6] F. Matassi, A. Botti, L. Sirleo, C. Carulli, M. Innocenti. Porous metal for orthopedics implants. Clinical Cases in Mineral and Bone Metabolism. (2013). 10(2): 111–115. PMCID: PMC3796997

Google Scholar

[7] Nakamura, S. Fujibayashi, M. Takaemoto. Bioactive Titanium for Implants and Bone Substitutes. Key Engineering Materials. (2013). (587). 387-390

DOI: 10.4028/www.scientific.net/KEM.587.387

Google Scholar

[8] Sandleen Feroz, Peter Cathro, Saˇso Ivanovskі, Nawshad Muhammad. Biomimetic bone grafts and substitutes: A review of recent advancements and applications. (2023). Biomedical Engineering Advances, (6)

DOI: 10.1016/j.bea.2023.100107

Google Scholar

[9] L.J. Gibson, M.F. Ashby, The mechanics of 3-dimensional cellular materials, Proceeding of the Royal Soiety of London, A. (1982). 382, 43–59.

Google Scholar

[10] Ashby M.F. The properties of foams and lattices // Phil. Trans. R. Soc. A. (2006). Vol. 364, iss. 1838. – P. 15–30. DOI: 5.1098/rsta.2005.1678

Google Scholar

[11] Gibson L.J. Biomechanics of cellular solids // J. Biomech. – 2005. – Vol. 38. – P. 377–399. DOI: 10.1016/j.jbiomech. (2004).09.027

Google Scholar

[12] Nikitsin A.V., Mikhasev G.I. Estimation of the Effective Young's Modulus for Open Cell Porous Titanium Based on 3D Gibson-Ashby Cell. Journal of the Bielorussian State University. Mathematics and Informatics. (2022). 1: 75–82.

DOI: 10.33581/2520-6508-2022-1-75-82

Google Scholar

[13] Shaun Eshraghi, Suman Das. Mechanical and Microstructural Properties of Polycaprolactone Scaffolds with 1-D, 2-D, and 3-D Orthogonally Oriented Porous Architectures Produced by Selective Laser Sintering. Acta Biomater. (2011). Author manuscript; available in PMC 2011 July 1.

DOI: 10.1016/j.actbio.2010.02.002

Google Scholar

[14] Williams JM, et al. Bone tissue engineering using polycaprolactone scaffolds fabricated via selective laser sintering. Biomaterials (2005). 26(23):4817–4827. [PubMed: 15763261]

DOI: 10.1016/j.biomaterials.2004.11.057

Google Scholar

[15] Zein I, et al. Fused deposition modeling of novel scaffold architectures for tissue engineering applications. Biomaterials (2002).;23(4):1169–1185. [PubMed: 11791921]

DOI: 10.1016/s0142-9612(01)00232-0

Google Scholar

[16] Shor L, et al. Precision extruding deposition (PED) fabrication of polycaprolactone (PCL) scaffolds for bone tissue engineering. Biofabrication (2009).1(1):5003.

DOI: 10.1088/1758-5082/1/1/015003

Google Scholar

[17] Kim J, et al. Celladhesion and proliferation evaluation of SFF-based biodegradable scaffolds fabricated using multi-head deposition system. Biofabrication (2009);1(1):5002.

DOI: 10.1088/1758-5082/1/1/015002

Google Scholar

[18] Cahill S, Lohfeld S, McHugh P. Finite element predictions compared to experimental results for the effective modulus of bone tissue engineering scaffolds fabricated by selective laser sintering. Journal of Materials Science: Materials in Medicine (2009); 20(6):1255–1262. [PubMed: 19199109]

DOI: 10.1007/s10856-009-3693-5

Google Scholar

[19] Ł. Cyganik, M. Binkowski, G. Kokot, T. Rusin, P. Popik, F. Bolechała, R. Nowak, Z. Wróbel, A. John. Prediction of Young's modulus of trabeculae in microscale using macro-scale's relationships between bone density and mechanical properties. Journal of the Mechanical Behavior of Biomedical Materials. (2014). 36, 120–134.

DOI: 10.1016/j.jmbbm.2014.04.011

Google Scholar

[20] B. Helgason, E. Perilli, E. Schileo, F. Taddei, S. Brynjolfsson, M. Viceconti. Mathematical relationships between bone density and mechanical properties, A literature review, Clinical Biomechanics. (2008). 23, 135–146.

DOI: 10.1016/j.clinbiomech.2007.08.024

Google Scholar

[21] E. Hamed, I. Jasiuk, A. Yoo, Y.H. Lee, T. Liszka. Multi-scale modelling of elastic moduli of trabecular bone, Journal of the Royal Society Interface. (2012). 9, 1654–1673.

DOI: 10.1098/rsif.2011.0814

Google Scholar

[22] K. Janc, J. Tarasiuk, P. Lipinski, A.-S. Bonnet, S. Wronski. Assessment of mechanical properties of bone trabeculae as an inverse problem of heterogeneous material modeling. Arch. Mech. (2020). 72 (5), 385–414.

Google Scholar
