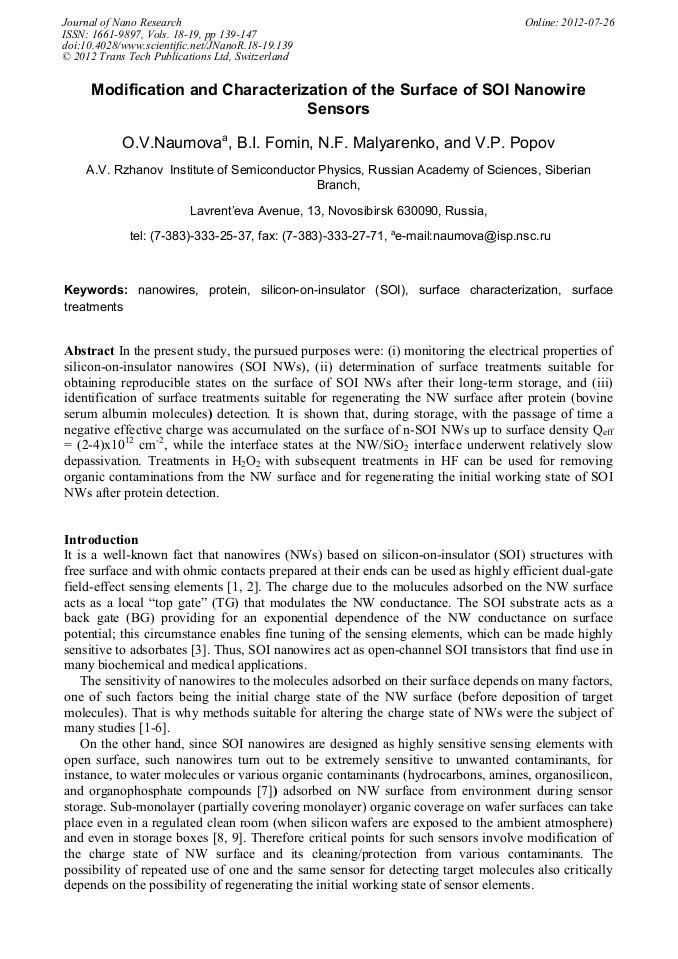

Modification and Characterization of the Surface of SOI Nanowire Sensors

Abstract:

In the present study, the pursued purposes were: (i) monitoring the electrical properties of silicon-on-insulator nanowires (SOI NWs), (ii) determination of surface treatments suitable for obtaining reproducible states on the surface of SOI NWs after their long-term storage, and (iii) identification of surface treatments suitable for regenerating the NW surface after protein (bovine serum albumin molecules) detection. It is shown that, during storage, with the passage of time a negative effective charge was accumulated on the surface of n-SOI NWs up to surface density Q_eff = (2-4)х10¹² cm^-2, while the interface states at the NW/SiO₂ interface underwent relatively slow depassivation. Treatments in H₂O₂ with subsequent treatments in HF can be used for removing organic contaminations from the NW surface and for regenerating the initial working state of SOI NWs after protein detection.

• Periodical: Journal of Nano Research (Volumes 18-19)
• Pages: 139-147
• DOI: https://doi.org/10.4028/www.scientific.net/JNanoR.18-19.139
• Online since: July 2012
• Authors: O.V. Naumova, B.I. Fomin, N.F. Malyarenko, V.P. Popov
• Keywords: Nanowire, Protein, Silicon-on-Insulator (SOI), Surface Characterization, Surface Treatments

References

[1] Z. Li, B. Rajendran, T. I. Kamins, X. Li, Y. Chen, R. Stanley Williams, Silicon nanowires for sequence-specific DNA sensing: device fabrication and simulation, Appl. Phys. A: Materials Science & Processing, 80 (2005) 1258-1263.

DOI: 10.1007/s00339-004-3157-1

[2] I. Park, Z. Li, A. P. Pisano, and R. S. Williams, Top-down fabricated silicon nanowire sensor for real-time chemical detection, Nanotechnology, 21 (2010) 015501.

DOI: 10.1088/0957-4484/21/1/015501

[3] O. V. Naumova, B. I. Fomin, D. A. Nasimov, N. V. Dudchenko, S. F. Devyatova, E. D. Zhanaev, V. P. Popov, A. V. Latyshev, A. L. Aseev, Yu. D. Ivanov and A. I. Archakov, SOI nanowires as sensors for charge detection, Semicond. Sci. Technol. 25, (2010).

DOI: 10.1088/0268-1242/25/5/055004

[4] E. Stern, J. F. Klemic, D. A. Routenberg, P. N. Wyrembak and D. B. Turner-Evans, Label-free immunedetection with CMOS-compatible semiconducting nanowires, Nature, 445 (2007) 519-522.

DOI: 10.1038/nature05498

[5] O. V. Naumova, V. P. Popov, L. N. Safronov, B. I. Fomin, D. A. Nasimov, A. V. Latyshev, A. L. Aseev, Yu. D. Ivanov and A. I. Archakov, Ultra-Thin SOI Layer Nanostructuring and Nanowire Transistor Formation for FemtoMole Electronic Biosensors, ESC Transactions, 25 (2009).

DOI: 10.1149/1.3241580

[6] E. Stern, A. Vacic, N. K. Rajan, J. M. Criscione, J. Park, B. R. Ilic, D. J. Mooney, M. A. Reed and T. M. Fahmy, Label-free biomarker detection from whole blood, Nature Nanotechnology, 5 (2009) 138-142.

DOI: 10.1038/nnano.2009.353

[7] W. Den, H. Bai, and Y. Kang, Organic Airborne Molecular Contamination in Semiconductor Fabrication Clean Rooms, J. Electrochem. Soc., 153 (2006) G149-G159.

DOI: 10.1149/1.2147286

[8] K. Saga and T. Hattori, Identification and Removal of Trace Organic Contamination on Silicon Wafers Stored in Plastic Boxes, J. Electrochem. Soc., 143 (1996) 3279 -3284.

DOI: 10.1149/1.1837198

[9] F. Sugimoto and S. Okamura, Adsorption Behavior of Organic Contaminants on a Silicon Wafer Surface, J. Electrochem. Soc., 146 (1999) 2725-2729.

DOI: 10.1149/1.1392000

[10] E. H. Nicoliannian, J. R. Brews, Metal Oxide Semiconducror Physics and Technology, New York, (1982).

[11] C. R. Helms and E. H. Poindexter, The silicon-silicon dioxide system: Its microstructure and imperfections, Rep. Prog. Phys. 57 (1994) 791-852.

DOI: 10.1088/0034-4885/57/8/002

[12] Y. H. Ha , S. Kim , S. Y. Lee, J. H. Kim, D. H. Beak, H. K. Kim, and D. W. Moon, Appl. Phys. Lett., 74 (1999) 3510.

[13] D. J. Di Maria and J. H. Stathis, Defect production, degradation, and breakdown of silicon dioxide films, J. Appl. Phys., 70 (1991) 1500.

[15] A. J. Moulson, J. P. Roberts, The diffusion of water in optical fibers, Trans. Brit. Ceram. Soc. 59 (1960) 388.
