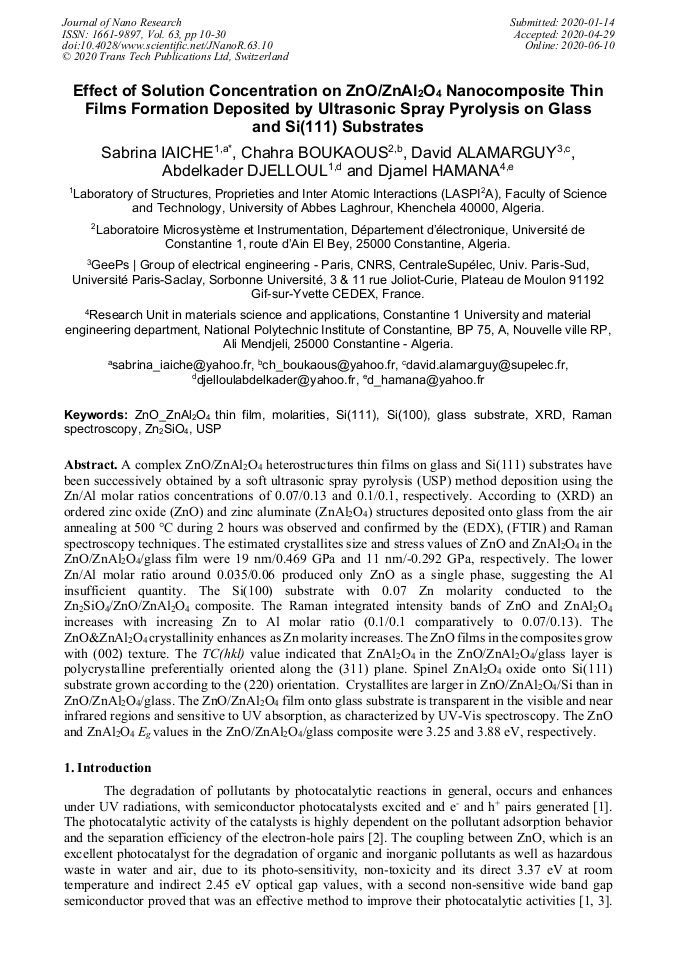

Effect of Solution Concentration on ZnO/ZnAl₂O₄ Nanocomposite Thin Films Formation Deposited by Ultrasonic Spray Pyrolysis on Glass and Si(111) Substrates

Abstract:

A complex ZnO/ZnAl₂O₄ heterostructures thin films on glass and Si (111) substrates have been successively obtained by a soft ultrasonic spray pyrolysis (USP) method deposition using the Zn/Al molar ratios concentrations of 0.07/0.13 and 0.1/0.1, respectively. According to (XRD) an ordered zinc oxide (ZnO) and zinc aluminate (ZnAl₂O₄) structures deposited onto glass from the air annealing at 500 °C during 2 hours was observed and confirmed by the (EDX), (FTIR) and Raman spectroscopy techniques. The estimated crystallites size and stress values of ZnO and ZnAl₂O₄ in the ZnO/ZnAl₂O₄/glass film were 19 nm/0.469 GPa and 11 nm/-0.292 GPa, respectively. The lower Zn/Al molar ratio around 0.035/0.06 produced only ZnO as a single phase, suggesting the Al insufficient quantity. The Si (100) substrate with 0.07 Zn molarity conducted to the Zn₂SiO₄/ZnO/ZnAl₂O₄ composite. The Raman integrated intensity bands of ZnO and ZnAl₂O₄ increases with increasing Zn to Al molar ratio (0.1/0.1 comparatively to 0.07/0.13). The ZnO&ZnAl₂O₄ crystallinity enhances as Zn molarity increases. The ZnO films in the composites grow with (002) texture. The TC(hkl) value indicated that ZnAl₂O₄ in the ZnO/ZnAl₂O₄/glass layer is polycrystalline preferentially oriented along the (311) plane. Spinel ZnAl₂O₄ oxide onto Si (111) substrate grown according to the (220) orientation. Crystallites are larger in ZnO/ZnAl₂O₄/Si than in ZnO/ZnAl₂O₄/glass. The ZnO/ZnAl₂O₄ film onto glass substrate is transparent in the visible and near infrared regions and sensitive to UV absorption, as characterized by UV-Vis spectroscopy. The ZnO and ZnAl₂O₄ E_g values in the ZnO/ZnAl₂O₄/glass composite were 3.25 and 3.88 eV, respectively.

• Periodical: Journal of Nano Research (Volume 63)
• Pages: 10-30
• DOI: https://doi.org/10.4028/www.scientific.net/JNanoR.63.10
• Online since: June 2020
• Authors: Sabrina Iaiche*, Chahra Boukaous, David Alamarguy, Abdelkader Djelloul, Djamel Hamana
• Keywords: Glass Substrate, Molarities, Raman Spectroscopy, Si(100), Si(111), USP, XRD, Zn₂SiO₄, ZnO_ZnAl₂O₄ Thin Film

References

[1] M. Shahmirzaee, M. Shafiee Afarani, A. Masoud Arabi, A. Iran Nejhad, In situ crystallization of ZnAl2O4/ZnO nanocomposite on alumina granule for photocatalytic purification of wastewater, Res. Chem. Intermed. 43 (2017) 321–340.

DOI: 10.1007/s11164-016-2624-6

[2] Y. Jianhui, Z. Li, L. Xiaoyan, Z. Xiuxiu, D. Chaohua, Preparation and Photocatalytic Properties of ZnO/CuO/ZnAl2O4 Composite Hollow Microspheres by One-Pot Method, Chem. Sci. Rev. and Lett. 3: 12 (2014) 1080-1090.

[3] L. Zhang, J.Y. Minjie Zhou, Y. Yang, Y-N. Liu, Fabrication and photocatalytic properties of spheres-in-spheres ZnO/ZnAl2O4 composite hollow microspheres, App. Sur. Sci. 268 (2013) 237-245.

DOI: 10.1016/j.apsusc.2012.12.069

[4] X. Yuan, X. Cheng, Q. Jing, J. Niu, D. Peng, Z. Feng and X. Wu, ZnO/ZnAl2O4 Nanocomposite with 3D Sphere-Like Hierarchical Structure for Photocatalytic Reduction of Aqueous Cr(VI), Mater. 11, (2018) 1624-1647.

DOI: 10.3390/ma11091624

[5] K. Kumar, K. Ramamoorthy, P-M. Koinkar, R. Chandramohan, K. Sankaranarayanana, J. Cry. Gro. 289 (2006) 405-407.

[6] R. Huo, y. Kuang, Z. Zaho, F. Zhang, S. Xu, Enhanced photocatalytic performances of hierarchical ZnO/ZnAl2O4 microsphere derived from layered double hydroxide precursor spray dried microsphere, J. Col. Inter. Sci. 407 (2013) 17-21.

DOI: 10.1016/j.jcis.2013.06.067

[7] V. Kumari and A. Bhaumik, Mesoporous ZnAl2O4: an efficient adsorbent for the removal of arsenic from contaminated water, Dalt. Trans. 26: 44 (2015) 11843-11851.

DOI: 10.1039/c5dt01333j

[8] L. Zhang, J-h. Yan, M-j. Zhou, Y-p. Yu, Y. Liu, Y-n. Liu, Photocatalytic degradation and inactivation of Escherichia coli by ZnO/ZnAl2O4 with heteronanostructures, Transactions of Nonferrous Metals Society of China, 24: 3 (2014) 743-749.

DOI: 10.1016/s1003-6326(14)63120-4

[9] X.F. Zhao, L. Wang, X. Xu, X.D. Lei, S.L. Xu, F.Z. Zhang, Fabrication and photocatalytic properties of novel ZnO/ZnAl2O4 nanocomposite with ZnAl2O4 dispersed inside ZnO network, AIChE J. 58 (2012) 573–582.

DOI: 10.1002/aic.12597

[10] B. Behera, S. Pal, L. Kanungo, S. Bhand, S. Chandra, Synthesis and characterization of ZnO-ZnAl2O4 whiskers and their application in biosensors, J. Nan. Let. 5: 2 (2015).

[11] M-Y. Guan, D-M. Xu, Y-F. Song, Y. Guo, ZnO/ZnAl2O4 prepared by calcination of ZnAl layered double hydroxides for ethanol sensing, Sensors and Actuators B, 188 (2013) 1148-1154.

DOI: 10.1016/j.snb.2013.08.016

[12] M. Hoppe, O. Lupan, V. Postica, N. Wolff, V. Duppel, L. Kienle, I. Tiginyanu, R. Adelung, ZnAl2O4 - functionalized zinc oxide microstructures for highly selective hydrogen gas sensing applications, Physica Status Solidi (a), 215(7) (2018).

DOI: 10.1002/pssa.201700772

[13] R. Huo, y. Kuang, Z. Zaho, F. Zhang, S. Xu, Enhanced photocatalytic performances of hierarchical ZnO/ZnAl2O4 microsphere derived from layered double hydroxide precursor spraydried microsphere, J. Coll. Inter. Sci. 407 (2013) 17-21.

DOI: 10.1016/j.jcis.2013.06.067

[14] Y.D. Ivakin, M.N. Danchevskaya, O.G. Ovchinnikova, G.P. Muravieva, Thermovaporous synthesis of fine crystalline gahnite (ZnAl2O4), J. Mater. Sci. 41 (2006) 1377–1383.

DOI: 10.1007/s10853-006-7410-1

[15] J.L. Suárez-Franco, M. García-Hipólito, M.Á. Surárez-Rosales, J.A. Fernández-Pedrero, O. Álvarez-Fregoso, J.A. Juárez-Islas, and M.A. Álvarez-Pérez, Effects of Surface Morphology of ZnAl2O4 Ceramic Materials on Osteoblastic Cells Responses, Journal of Nanomaterials, (2013).

DOI: 10.1155/2013/361249

[16] M. García-Hipólito, C.D. Hernández-Pérez, O. Alvarez-Fregoso, E. Martıınez, J. Guzmaan-Mendoza, C. Falcony, Characterization of europium doped zinc aluminate luminescent coatings synthesized by ultrasonic spray pyrolysis process, Opt. Mater. 22 (2003) 345–351.

DOI: 10.1016/s0925-3467(02)00346-4

[17] H. Zhao, Y. Dong, P. Jiang, G. Wang, J. Zhang, C. Zhang, ZnAl2O4 as a novel high-surface-area ozonation catalyst : One-step green synthesis, catalytic performance and mechanism, Chemical Engineering Journal, 260 (2015) 623-630.

DOI: 10.1016/j.cej.2014.09.034

[18] P. Mierczynski, W. Maniukiewicz, T.P. Maniecki, Comparative studies of Pd, Ru, Ni, Cu/ZnAl2O4 catalysts for the water gas shift reaction, Cent. Eur. J. Chem. 11: 6 (2013) 912-919.

DOI: 10.2478/s11532-013-0223-6

[19] E.L. Foletto, S. Battiston, J.M. Simoes, M.M. Bassaco, L.S. Fagundes Pereira, E.M. M. Flores, E.I. Muller, Synthesis of ZnAl2O4 nanoparticules by different routes and the effect of its pore size on the photocatalytic process, Micr. Meso.Mater. 163 (2012) 29-33.

DOI: 10.1016/j.micromeso.2012.06.039

[20] S-F. Wang, G-Z. Sun, L-M. Fang, L. Lei, X. Xiang & X-T. Zu, A comparative study of ZnAl2O4 nanoparticles synthesized from different aluminum salts for use as fluorescence materials, Scie. Rep. 5:12849 ((2015).

DOI: 10.1038/srep12849

[21] M.H. Mohd Zaid, K. Amin Matori, S.H. Abdul Aziz, H. Mohamed Kamari, Z. Abdul Wahab, Y. Wing Fen, I. Mustapha Alibe, Synthesis and characterization of low cost willemite based glass–ceramic for opto-electronic applications, J. Mater. Sci: Mater Electron, (2016).

DOI: 10.1007/s10854-016-5234-6

[22] D. Kumar Bharti, M. Kumar Gupta, A. Kumar Srivastava, Giant dielectric constant and band gap reduction in hydrothermal grown highly crystalline zinc silicate nanorods, Mater. Lett. 232 (2018) 66–69.

DOI: 10.1016/j.matlet.2018.08.085

[23] B. Chandra Babu, B. Vengla Rao, M. Ravi, S. Babu, Structural, microstructural, optical, and dielectric properties of Mn2+:Willemite Zn2SiO4 nanocomposites obtained by a sol-gel method, J. Mol. Str. 1127 (2017) 6-14.

DOI: 10.1016/j.molstruc.2016.07.074

[24] S.Zh. Karazhanov, P. Ravindran, P. Vajeeston, A.G. Ulyashin, H. Fjellvag and B.G. Svensson, Phase stability and pressure-induced structural transitions at zero temperature in ZnSiO3 and Zn2SiO4, J. Phys.: Condens. Matter 21 (2009) 485801 (9pp).

DOI: 10.1088/0953-8984/21/48/485801

[25] R. Chandramohan, V. Dhanasekaran, R. Arumugam, K. Sundaram, J. Thirumalai, T. Mahalingam, Properties Evaluation of Annealed ZnAl2O4 Alloy Thin Films, Dig. J. Nan. Bios. 7 : 3 (2012) 1315 -1325.

[26] S.Y. Hu, Y.C. Lee, J.W. Lee, J.C. Huang, J.L. Shen, W. Water, The structural and optical properties of ZnO/Si thin films by RTA treatments, App. Sur. Sci. 254 (2008) 1578–1582.

DOI: 10.1016/j.apsusc.2007.07.134

[27] Z.B. Fang, Z.J. Yan, Y.S. Tan, X.Q. Liu, Y.Y. Wang, Influence of post- annealing treatment on the structure properties of ZnO films, App. Sur. Sci. 241 (2005) 303–308.

DOI: 10.1016/j.apsusc.2004.07.056

[28] Ş. Talu, M. Bramowicz, S. Kulesza, S. Solaymani, A. Ghaderi, L. Dejam, S.M. Elahi, A. Boochani, Microstructure and micromorphology of ZnO thin films: Case study on Al doping and annealing effects, Super. Micros. 93 (2016) 109-121.

DOI: 10.1016/j.spmi.2016.03.003

[29] M. eh, H-C. Chen, M-J Chen, J-R. Yang and M. Shiojiri, Structure and Electro-Optical Properties of Thin Films Grown by Alternate Atomic Layer Deposition of ZnO and Al2O3 on the Sapphire Substrate, Mater. Trans.: Special Issue on Development and Fabrication of Advanced Materials Assisted by Nanotechnology and Microanalysis, 51: 2 (2010) 219-226.

DOI: 10.2320/matertrans.mc200902

[30] M.F. Malek, M.H. Mamat, M.Z. Musa, Z. Khusaimi, M.Z. Sahdan, A.B. Suriani, A. Ishak, I. Saurdi, S.A. Rahman, M. Rusop, Thermal annealing-induced formation of ZnO nanoparticles:Minimum strain and stress ameliorate preferred c-axis orientation and crystal-growth properties, J. All. Comp. 610 (2014) 575–588.

DOI: 10.1016/j.jallcom.2014.05.036

[31] S. Iaiche and A. Djelloul, ZnO/ZnAl2O4 Nanocomposite Films Studied by X-Ray Diffraction, FTIR, and X-Ray Photoelectron Spectroscopy, J. Spectr. (2015).

DOI: 10.1155/2015/836859

[32] D.I. Rusu, G.G. Rusu and D. Luca, Structural Characteristics and Optical Properties of Thermally Oxidized Zinc Films, Act. Phys. Polo. A, 119: 6 (2011).

DOI: 10.12693/aphyspola.119.850

[33] P. Kumar, A. Singh, D. Pathak, L. Hromadko, T. Wagner, Structural and optical properties of sol-gel processed ZnCdMgO nanostructured films as transparent conductor, Adv. Mater. Lett. 5(10) (2014).

DOI: 10.5185/amlett.2014.6586

[34] P.C. Dorsey, B.J. Rappoli, K.S. Grabowski, P. Lubitz, D.B. Chrisey, and J.S. Horwitz, J. Appl. Phys. 81 (1997) 6884.

[35] A. Bouhemadou, R. Khenata, Phys. Lett. A, 360 (2006) 339–343.

[36] A.B. Usseinov, E.A. Kotomin, A.T. Zhukovskii and J. Puans, T. Sol. Fil. 553 (2014) 38–42.

[37] G. Kaur, A. Mitra and K.L. Yadav, Pulsed laser deposited Al-doped ZnO thin films for optical applications, Prog. in Nat. Sci.: Mater. Inter. 25 (2015) 12–21.

DOI: 10.1016/j.pnsc.2015.01.012

[38] K. Nadeemn, S.Rahman and M. Mumtaz, Effect of annealing on properties of Mg doped Zn-ferrite nanoparticles, Prog. in Nat. Sci.: Mater. Inter. 25 (2015) 111–116.

DOI: 10.1016/j.pnsc.2015.02.001

[39] M. Bizarro and S.E. Rodi, New Visible-Light Active Semiconductors, Photocatalytic Semiconductors: Synthesis, Characterization, and Environmental Applications, Springer, 2015, pp.103-155. Chapter 4 Physicochemical Characterization of Photocatalytic Materials, in: A. Hernández-Ramírez, I. Medina-Ramírez (Eds.).

DOI: 10.1007/978-3-319-10999-2

[40] V. Savunthari Kirankumar, S. Sumathi, Catalytic activity of bismuth doped zinc aluminate nanoparticles towards environmental remediation, Mater. Res. Bull. 93 (2017) 74–82.

DOI: 10.1016/j.materresbull.2017.04.022

[41] M. Ebrahimizadeh Abrishami, S.M. Hosseini, E. Attarankakhki and M. Ghasemifards, Synthesis and structure of pure and Mn-doped zinc oxide nanopowders, Inter. J. Nan. 9: 1 & 2 (2010) 19–28.

[42] A. Djelloul, M-S. Aida, J. Bougdira, Photoluminescence, FTIR and X-ray diffraction studies on undoped and Al-doped ZnO thin films grown on polycrystalline a-alumina substrates by ultrasonic spray pyrolysis, J. Lum. 130 (2010) 2113–2117.

DOI: 10.1016/j.jlumin.2010.06.002

[43] K. Bouzid, A. Djelloul, N. Bouzid, J. Bougdira, Electrical resistivity and photoluminescence of zinc oxide films prepared by ultrasonic spray pyrolysis, Phys.Stat. Sol. A, 206: 1 (2009) 106–115.

DOI: 10.1002/pssa.200824403

[44] D. Djouadi, A. Chelouche, A. Aksas, Amplification of the UV Emission of ZnO: Al Thin Films Prepared by Sol-Gel Method, J. Mater. Environ. Sci. 3: 3 (2012) 585-590.

[45] C.M. Fang, C-K. Loong, G.A. de Wijs, and G. de With, Phonon spectrum of ZnAl2O4 spinel from inelastic neutron scattering and first-principles calculations, Phys. Rev. B 66, 144301 (2002).

[46] K. Hoggas, C. Nouveau, A. Djelloul, M. Bououdina, Structural, microstructural, and optical properties of Zn1-xMgxO thin films grown onto glass substrate by ultrasonic spray pyrolysis, Appl. Phys. A, 120 (2015) 745–755.

DOI: 10.1007/s00339-015-9252-7

[47] H. Yu, J. Yu, B. Cheng, M. Zhou, Effects of hydrothermal post-treatment on microstructures and morphology of titanate nanoribbons, Journal of Solid State Chemistry, 179 (2006) 349–354.

DOI: 10.1016/j.jssc.2005.10.024

[48] A. Abdalla, S. Bereznev, N. Spalatu, O. Volobujeva, N. Sleptsuk & M. Danilson, Pulsed laser deposition of Zn(O,Se) layers in nitrogen background Pressure, 9:17443 (2019).

DOI: 10.1038/s41598-019-54008-1

[49] H.W. Lee, S.P. Lau, Y.G. Wang, B.K. Tay, H. H. Hang, T. Sol. Fil. 458 (2004).

[50] W.Y. Liang, A.D. Yoffe, Phys. Rev. Lett. 20 (1968) 59.

[51] M. Kumar, V. Natarajan and S.V Godbole, Synthesis, characterization, photoluminescence and thermally stimulated luminescence investigations of orange red-emitting Sm3+ doped ZnAl2O4 phosphor, Bull. Mater. Sci. 37: 6 (2014) 1205–1214.

DOI: 10.1007/s12034-014-0063-9

[52] A.A. Letailleur, S. Yu Grachev, E. Barthel, E. Sondergard, K. Nomenvo, High Efficiency White Luminescence of Alumina doped ZnO, J. Lum. 131: 12 (2011) 2646-2651.

DOI: 10.1016/j.jlumin.2011.06.044

[53] J.P. Roucan et M-C. N-Dutrioux, Proppriétés physico-chimiques (K1) Article : Propriétés physiques des composés minéraux, 82 (2010).

DOI: 10.51257/a-v1-k120

[54] Handbook of Chemistry and Physics, 56th Edition, Ed. R.C. Weast, CRS Press, (1975).

[55] B. Chandra Babu, S. Buddhudu, Emission spectra of Tb3+: Zn2SiO4 and Eu3+: Zn2SiO4 sol-gel powder phosphors, J. Spectr. Dyn. 4: 5 (2014).

DOI: 10.1007/s12648-014-0455-0

[56] C. Xu, J. Chun, K. Rho and D. Eon Kim, Fabrication and photoluminescence of zinc silicate/silica modulated ZnO nanowires, Nanot. 16 (2005) 2808–2812.

DOI: 10.1088/0957-4484/16/12/012

[57] A-M. Ali, A.A. Ismail, R. Najmy, A. Al-Hajry, Preparation and characterization of ZnO–SiO2 thin films as highly efficient photocatalyst, J. Photochem. Photob. A: Chem. 275 (2014) 37–46.

DOI: 10.1016/j.jphotochem.2013.11.002

[58] V. D'Ippolito, G. B. Andreozzi, F. Bosi, U. Hålenius, L. Mantovani, D. Bersani and R.A. Fregola, Crystallographic and spectroscopic characterization of a natural Zn-rich spinel approaching the endmember gahnite (ZnAl2O4) composition, Mineral. Mag. 77(7) (2013) 2941–2953.

DOI: 10.1180/minmag.2013.077.7.05

[59] V. D'Ippolito, G.B. Andreozzi, D. Bersani and P.P. Lottici, Raman fingerprint of chromate, aluminate and ferrite spinels, J. Ram. Spectr. (2015).

DOI: 10.1002/jrs.4764

[60] D. Errandonea, Chapter 2 AB2O4 Compounds at High Pressures, Pressure-Induced Phase Transitions in AB2X4 Chalcogenide Compounds, F. J. Manjon, I. Tiginyanu, V. Ursaki (Eds), XIII.

DOI: 10.1007/978-3-642-40367-5

[61] T.B. Ivetić, M.R. Dimitrievska, I.O. Gúth, Lj.R. -Dačanin, S.R. Lukić-Petrović, Structural and optical properties of europium-doped zinc oxide nanopowders prepared by mechanochemical and combustion reaction methods, J. Res. in Phys. 36: 1 (2012) 43-51.

DOI: 10.2478/v10242-012-0012-0

[62] O. Lupan, L. Chow, L.K. Ono, B.R. Cuenya, G. Chai, H. Khallaf, S. Park, A. Schulte, Synthesis and Characterization of Ag- or Sb-Doped ZnO Nanorods by a Facile Hydrothermal Route, J. Phys. Chem. C, 114 (2010) 12401–12408.

DOI: 10.1021/jp910263n

[63] D.N. Montenegro, V. Hortelano, O. Martínez, M.C. Martínez-Tomas, V. Sallet, V. Muñoz-Sanjosé, J. Jiménez, Non-radiative recombination centres in catalyst-free ZnO nanorods grown by atmospheric-metal organic chemical vapour deposition, J. Phys. D: Appl. Phys. 46 (2013) 235302.

DOI: 10.1088/0022-3727/46/23/235302

[64] K.J. Chen, T.H. Fang, F.Y. Hung, L.W. Ji, S.J. Chang, S.J. Young, Y.J. Hsiao, The crystallization and physical properties of Al-doped ZnO nanoparticles, App. Sur. Sci. 254 (2008) 5791–5795.

DOI: 10.1016/j.apsusc.2008.03.080

[65] S. Kunj, K. Sreenivas, Residual stress and defect content in magnetron sputtered ZnO films grown on unheated glass substrates, Cur. App. Phys. 16: 7 (2016).

DOI: 10.1016/j.cap.2016.04.008

[66] I. Musa, N. Qamhieh, S. Thaker Mahmoud, Synthesis and length dependent photoluminescence property of zinc oxide nanorods, Res. in Phys. 7 (2017) 3552–3556.

DOI: 10.1016/j.rinp.2017.09.035

[67] F-C. Liu, J-Y. Li, T-H. Chen, C-H. Chang, C-T. Lee, W-H. Hsiao and D-S. Liu, Effect of Silver Dopants on the ZnO Thin Films Prepared by a Radio Frequency Magnetron Co-Sputtering System, Mater. 10: 797 (2017).

DOI: 10.3390/ma10070797

[68] A. Khan, Raman Spectroscopic Study of the ZnO Nanostructures, J. Pak. Mater. Soc., 4: 1 (2010).

[69] A. Mossad Ali, A.A. Ismail, R. Najmye, A. Al-Hajry, Preparation and characterization of ZnO–SiO2 thin films as highly efficient photocatalyst, Journal of Photochemistry and Photobiology A: Chem. 275 (2014) 37–46.

DOI: 10.1016/j.jphotochem.2013.11.002

[70] V. Postica, A. Vahl, D. Santos-Carballal, T. Dankwort, L. Kienle, M. Hoppe, A. Cadi-Essadek, N.H. de Leeuw, M-I. Terasa, R. Adelung, F. Faupel, O. Lupan, Tuning ZnO Sensors Reactivity toward Volatile Organic Compounds via Ag Doping and Nanoparticle Functionalization, ACS Appl. Mater. Inter. 12(12):12 (2019).

DOI: 10.1021/acsami.9b07275

[71] B. Chandra Babu, S. Buddhudu, Analysis of structural and electrical properties of Ni2+:Zn2SiO4 ceramic powders by sol–gel method, J. Sol-Gel Sci. Technol. (2014).

DOI: 10.1007/s10971-014-3296-6

[72] M. Zhang, Raman Spectroscopy and Applications, Chapter 5: Raman Study of the Crystalline-to Amorphous State in Alpha-Decay-Damaged Materials, INTECH, (2017).

DOI: 10.5772/65910

[73] S. Lopez-Moreno, P. Rodriguez-Hernandez, A. Muñoz, A.H. Romero, F.J. Manjon, D. Errandonea, E. Rusu, V.V. Ursaki, Lattice dynamics of ZnAl2O4 and ZnGa2O4 under high pressure, Ann. Phys. 523: 1-2 (2011) 157–167.

DOI: 10.1002/andp.201000096

[74] A. Chopelas, A.M. Hofmeister, Vibrational spectroscopy of aluminate spinels at 1 atm and of MgAl2O4 to over 200 kbar. Phys. Chem. Min. 18 (1991) 279-293.

DOI: 10.1007/bf00200186

[75] A. Giussani, P. Zaumseil, O. Seifarth, P. Storck, T. Schroeder, A novel engineered oxide buffer approach for fully lattice-matched SOI heterostructures, New J. Phys.12 (2010) 093005.

DOI: 10.1088/1367-2630/12/9/093005

[76] K. Chitrarasu, J. Udaya Bhanu, R. Dhanabal, A. Chandrabose, P. Thangadurai, Structural evolution and electrical properties of the biphasic compound a-Al2O3:MgAl2O4, Mater. Res. Bull. 90 (2017) 244–252.

DOI: 10.1016/j.materresbull.2017.01.053

[77] K.R. Nagabhushana, B.N. Lakshminarasappa, F. Singh, Photoluminescence and Raman studies in swift heavy ion irradiated polycrystalline aluminum oxide, Bull. Mater. Sci. 32: 5 (2009) 515–519.

DOI: 10.1007/s12034-009-0076-y
