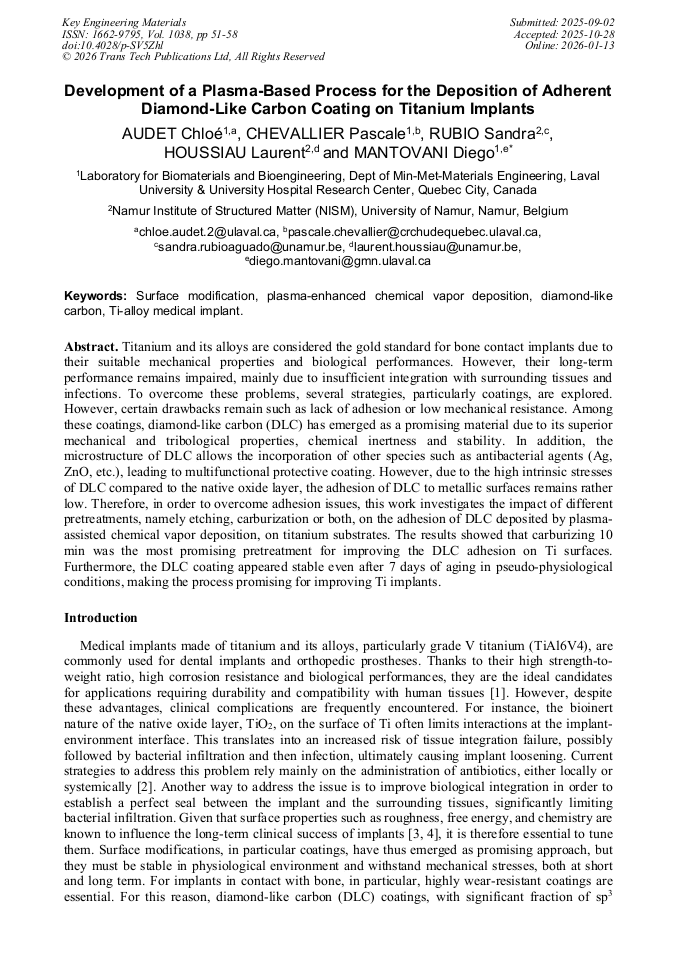

Development of a Plasma-Based Process for the Deposition of Adherent Diamond-Like Carbon Coating on Titanium Implants

Abstract:

Titanium and its alloys are considered the gold standard for bone contact implants due to their suitable mechanical properties and biological performances. However, their long-term performance remains impaired, mainly due to insufficient integration with surrounding tissues and infections. To overcome these problems, several strategies, particularly coatings, are explored. However, certain drawbacks remain such as lack of adhesion or low mechanical resistance. Among these coatings, diamond-like carbon (DLC) has emerged as a promising material due to its superior mechanical and tribological properties, chemical inertness and stability. In addition, the microstructure of DLC allows the incorporation of other species such as antibacterial agents (Ag, ZnO, etc.), leading to multifunctional protective coating. However, due to the high intrinsic stresses of DLC compared to the native oxide layer, the adhesion of DLC to metallic surfaces remains rather low. Therefore, in order to overcome adhesion issues, this work investigates the impact of different pretreatments, namely etching, carburization or both, on the adhesion of DLC deposited by plasma-assisted chemical vapor deposition, on titanium substrates. The results showed that carburizing 10 min was the most promising pretreatment for improving the DLC adhesion on Ti surfaces. Furthermore, the DLC coating appeared stable even after 7 days of aging in pseudo-physiological conditions, making the process promising for improving Ti implants.

• Periodical: Key Engineering Materials (Volume 1038)
• Pages: 51-58
• DOI: https://doi.org/10.4028/p-SV5Zhl
• Online since: January 2026
• Authors: Chloé Audet, Pascale Chevallier, Sandra Rubio, Laurent Houssiau, Diego Mantovani*
• Keywords: Diamond-Like Carbon, Plasma Enhanced Chemical Vapor Deposition (PECVD), Surface Modification, Ti-Alloy Medical Implant

References

[1] Q. Chen and G.A. Thouas, Metallic implant biomaterials, Mater. Sci. Eng. R Rep., 87 (2015) 1-57.

[2] G. Muteeb, M. T. Rehman, M. Shahwan, and M. Aatif, Origin of Antibiotics and Antibiotic Resistance, and Their Impacts on Drug Development: A Narrative Review, Pharmaceuticals, 16, (2023) p.1615.

DOI: 10.3390/ph16111615

[3] F. Rupp, L. Liang, J. Geis-Gerstorfer, L. Scheideler, and F. Hüttig, Surface characteristics of dental implants: A review, Dent Mater, 34 (2018) 40-57.

DOI: 10.1016/j.dental.2017.09.007

[4] A. Han, J.K.H. Tsoi, F.P. Rodrigues, J.G. Leprince, and W.M. Palin, Bacterial adhesion mechanisms on dental implant surfaces and the influencing factors, International Journal of Adhesion and Adhesives, 69 (2016) 58-71.

DOI: 10.1016/j.ijadhadh.2016.03.022

[5] R. Hauert, K. Thorwarth, and G. Thorwarth, An overview on diamond-like carbon coatings in medical applications, Surface and Coatings Technology, 233 (2013) 119-130.

DOI: 10.1016/j.surfcoat.2013.04.015

[6] G. Morand et al., On the adhesion of diamond-like carbon coatings deposited by low-pressure plasma on 316L stainless steel, Surf. Interface Anal., 53 (2021) 658-671.

DOI: 10.1002/sia.6953

[7] C. Wei and J.-Y. Yen, Effect of film thickness and interlayer on the adhesion strength of diamond like carbon films on different substrates, Diam. Relat. Mater., 16 (2007) 1325-1330.

DOI: 10.1016/j.diamond.2007.02.003

[8] Y. Pauleau, Residual Stresses in DLC Films and Adhesion to Various Substrates, in: C. Donnet and A. Erdemir (Eds.), Tribology of Diamond-Like Carbon Films: Fundamentals and Applications, Boston, MA, 2008, pp.102-136.

DOI: 10.1007/978-0-387-49891-1_4

[9] L.Y.S.D. Oliveira, C.J.M. Siqueira, B.L. Fernandes, N. Kuromoto, and D. Retraint, Wear behavior of Diamond-like Carbon Deposited on TiAl6V4 Prepared with Surface Mechanical Attrition Treatment, Mater. Res., 22 (2019) p. e2018056.

DOI: 10.1590/1980-5373-mr-2018-0568

[10] K. Zhang, C. Zhang, H. Li, B. Dong, X. Guo, and Y. Liu, Study on the substrate surface micro-texturing/carburizing regulating the film-substrate adhesion and wear behavior of DLC coatings, Diam. Relat. Mater., 130 (2022) p.109535.

DOI: 10.1016/j.diamond.2022.109535

[11] C.-C. Chou, Y.-Y. Wu, J.-W. Lee, J.-C. Huang, and C.-H. Yeh, Mechanical properties of fluorinated DLC and Si interlayer on a Ti biomedical alloy, Thin Solid Films, 528 (2013) 136-142.

DOI: 10.1016/j.tsf.2012.06.089

[12] G. Capote, V.J. Trava-Airoldi, and L.F. Bonetti, Plasma Treatments for Metallic Surface Modification to Obtain Highly Adherent Diamond-Like Carbon Coatings, IEEE Trans. Plasma Sci., 42 (2014) 1742-1746.

DOI: 10.1109/tps.2014.2320854

[13] L. Bonilla-Gameros, P. Chevallier, F. Copes, A. Sarkissian, and D. Mantovani, The oxidation state of Ag nanoparticles highly affects the release of Ag ions without compromising the mechanical performance and the safety of amorphous hydrogenated carbon coatings, Diam. Relat. Mater.,130 (2022) p.109430.

DOI: 10.1016/j.diamond.2022.109430

[14] P. Navaneethakrishnan, S. Ganesh Sundara Raman, S. D. Pathak, R. Gnanamoorthy, and N. Ravi, Fretting wear studies on diamond-like carbon coated Ti–6Al–4V, Surface and Coatings Technology, 203 (2009) 1205-1212.

DOI: 10.1016/j.surfcoat.2008.10.017

[15] A. Hatem, J. Lin, R. Wei, R. D. Torres, C. Laurindo, and P. Soares, Tribocorrosion behavior of DLC-coated Ti-6Al-4V alloy deposited by PIID and PEMS + PIID techniques for biomedical applications, Surface and Coatings Technology, 332 (2017), 223-232.

DOI: 10.1016/j.surfcoat.2017.07.004

[16] H. Wu, T. Zhou, N. Zhang, and X. Zhu, Assessments of the relation between the degree of order of the ultrafast laser deposited carbon film and the features of the Raman spectrum's D band, Surface and Coatings Technology, 311 (2017), 55-62.

DOI: 10.1016/j.surfcoat.2016.12.108
