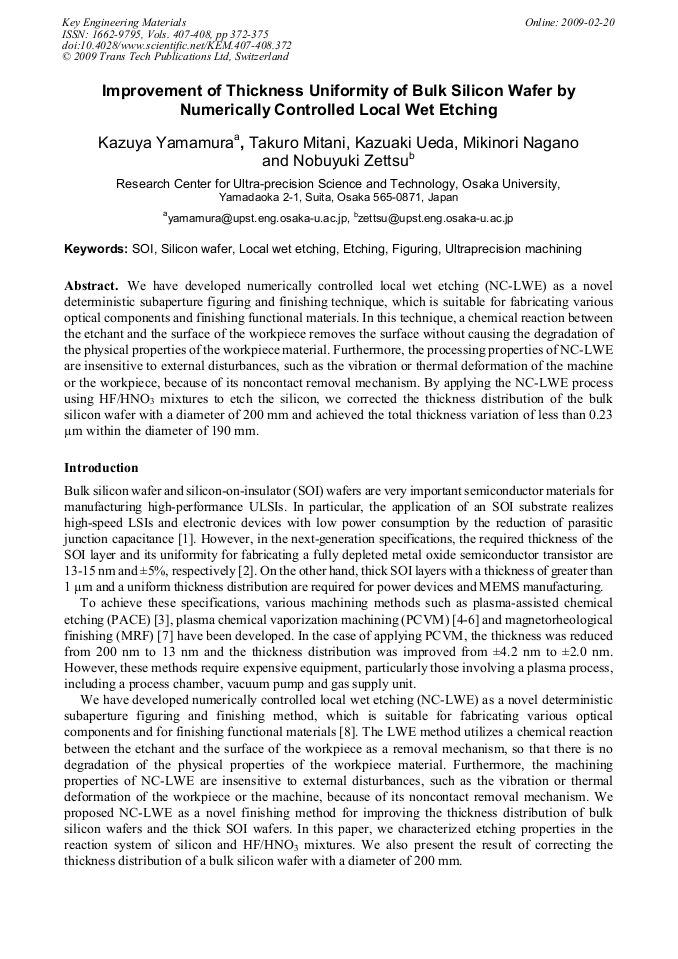

Improvement of Thickness Uniformity of Bulk Silicon Wafer by Numerically Controlled Local Wet Etching

Abstract:

We have developed numerically controlled local wet etching (NC-LWE) as a novel deterministic subaperture figuring and finishing technique, which is suitable for fabricating various optical components and finishing functional materials. In this technique, a chemical reaction between the etchant and the surface of the workpiece removes the surface without causing the degradation of the physical properties of the workpiece material. Furthermore, the processing properties of NC-LWE are insensitive to external disturbances, such as the vibration or thermal deformation of the machine or the workpiece, because of its noncontact removal mechanism. By applying the NC-LWE process using HF/HNO3 mixtures to etch the silicon, we corrected the thickness distribution of the bulk silicon wafer with a diameter of 200 mm and achieved the total thickness variation of less than 0.23 µm within the diameter of 190 mm.

• Periodical: Key Engineering Materials (Volumes 407-408)
• Pages: 372-375
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.407-408.372
• Online since: February 2009
• Authors: Kazuya Yamamura, Takuro Mitani, Kazuaki Ueda, Mikinori Nagano, Nobuyuki Zettsu
• Keywords: Etching, Figuring, Local Wet Etching, Silicon Wafer, SOI, Ultra-Precision Machining

References

[1] Y. Yamaguchi, A. Ishibashi, M. Shimizu, T. Nishimura, K. Horie and Y. Akasaka: IEEE. Trans. Electron Devices Vol. 40 (1993), p.179.

DOI: 10.1109/16.249442

[2] The International Technology Roadmap for Semiconductors 2006 update, Front End Process.

[3] P. B. Mumola, G. J. Gardopee, T. Ferg, A. M. Ledger, P. J. Clapis and P. E. Miller: Proceedings of the Second International Symposium on Semiconductor Wafer Bonding Science, Technology, and Applications. (1993), p.410.

[4] Y. Mori, K. Yamauchi, K. Yamamura and Y. Sano: Rev. Sci. Instrum. Vol. 71 (2000), p.4627.

[5] Y. Mori, K. Yamamura and Y. Sano: Rev. Sci. Instrum. Vol. 71 (2000), p.4620.

[6] Y. Mori, K. Yamamura and Y. Sano: Rev. Sci. Instrum. Vol. 75 (2004), p.942.

[7] M. Tricard, P. R. Dumas, D. Golini and J. T. Mooney: Proceedings of the IEEE SOI Conference (2003), p.127.

[8] K. Yamamura: Annals of the CIRP Vol. 56 (2007), p.541.

[9] K. Yamamura and T. Mitani: Surf. Interface Anal. Vol. 40 (2008), p.1011.

[10] M. Steinert, J. Acker, S. Oswald and K. Wetzig: J. Phys. Chem. C Vol. 111 (2007), p.2133.
