A Flush-Mounted Resonant Ice Detection Sensor with High Sensitivity

Abstract:

An ice detection system consisting of a resonant piezoelectric sensing-element and closed-loop circuit has been developed to automatically and distinctly sense ice films up to 1.3 mm thick. Accretion of ice and/or water on the sensor surface modifies the effective mass and/or stiffness of the vibrating transducer; these variations are sensed by measuring the changes in transducer resonant frequency. In case of ice films, resonant frequency of the transducer increases steadily from 60.9 kHz with no ice to 131.5 kHz when the ice film is 1.3mm thick. The time and temperature stability experiments revealed frequency variety no more than 1 kHz. The resolution of this sensor is better than 0.06mm.

You might also be interested in these eBooks

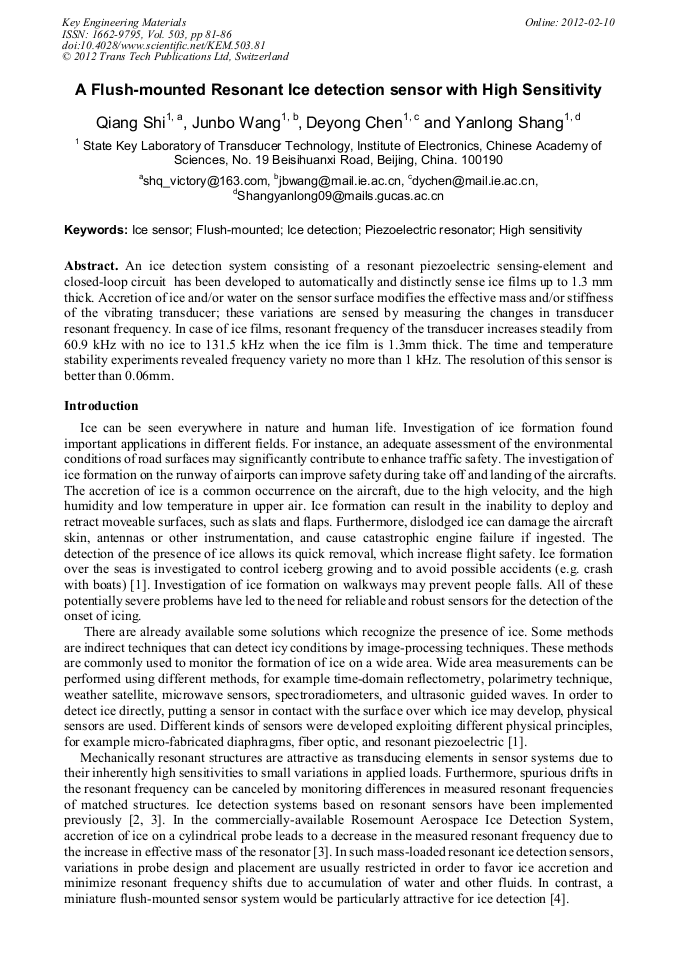

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 503)

Pages:

81-86

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.503.81

Citation:

Cite this paper

Online since:

February 2012

Authors:

Qiang Shi, Jun Bo Wang, De Yong Chen, Yan Long Shang

Keywords:

Flush-Mounted, High Sensitivity, Ice Detection, Ice Sensor, Piezoelectric Resonator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Troiano, E. Pasero and L. Mesin, An innovative water and ice detection system for monitoring road and runway surfaces, Research in Microelectronics and Electronics (PRIME), 2010 Conference.

DOI: 10.1109/sensordevices.2010.36

Google Scholar

[2] A. Heinrich, et al, Aircraft Icing Handbook, FAA Technical Center Publication, Atlantic City, NJ , (1991).

Google Scholar

[3] R. Freely, Enhancing aircraft flight safety with primary ice detection sensor, Sensors. Vol. 11, No. 6 (1994) 28-30.

Google Scholar

[4] Shuvo Roy, Alain Izad, Russell G. DeAnna, Mehran Mehregany, Smart ice detection systems based on resonant piezoelectric transducers, Sensors and Actuators A. Vol. 69 (1998)243-250.

DOI: 10.1016/s0924-4247(98)00101-0

Google Scholar

[5] H. F. Olson, Elements of Acoustical Engineering, D. Van Nostrand Co, New York, NY, (1940).

Google Scholar

[6] J. M. Gere and S. P. Timoshenko, Mechanics of Materials. Brooks, Cole Pacific Grove, CA , (2001).

Google Scholar
