A Miniaturized Piezoelectric Wind Flutter Generator

Abstract:

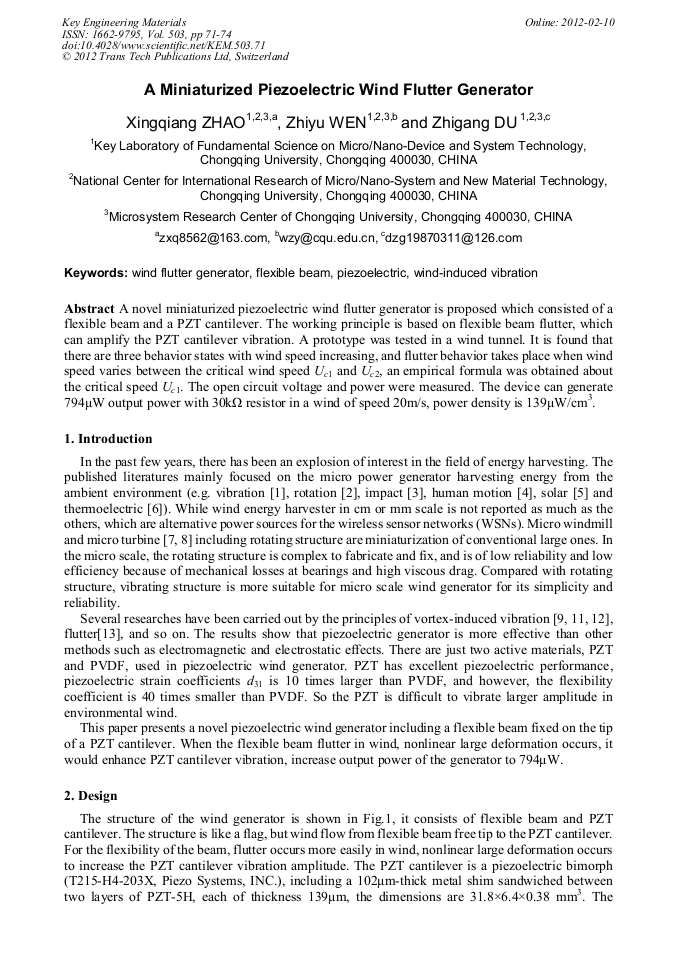

A novel miniaturized piezoelectric wind flutter generator is proposed which consisted of a flexible beam and a PZT cantilever. The working principle is based on flexible beam flutter, which can amplify the PZT cantilever vibration. A prototype was tested in a wind tunnel. It is found that there are three behavior states with wind speed increasing, and flutter behavior takes place when wind speed varies between the critical wind speed U_c₁ and U_c₂, an empirical formula was obtained about the critical speed U_c₁. The open circuit voltage and power were measured. The device can generate 794μW output power with 30kΩ resistor in a wind of speed 20m/s, power density is 139μW/cm³.
