Effects of CuO Addition on the Microstructure and Microwave Dielectric Properties of MgTa₂O₆ Ceramics

Abstract:

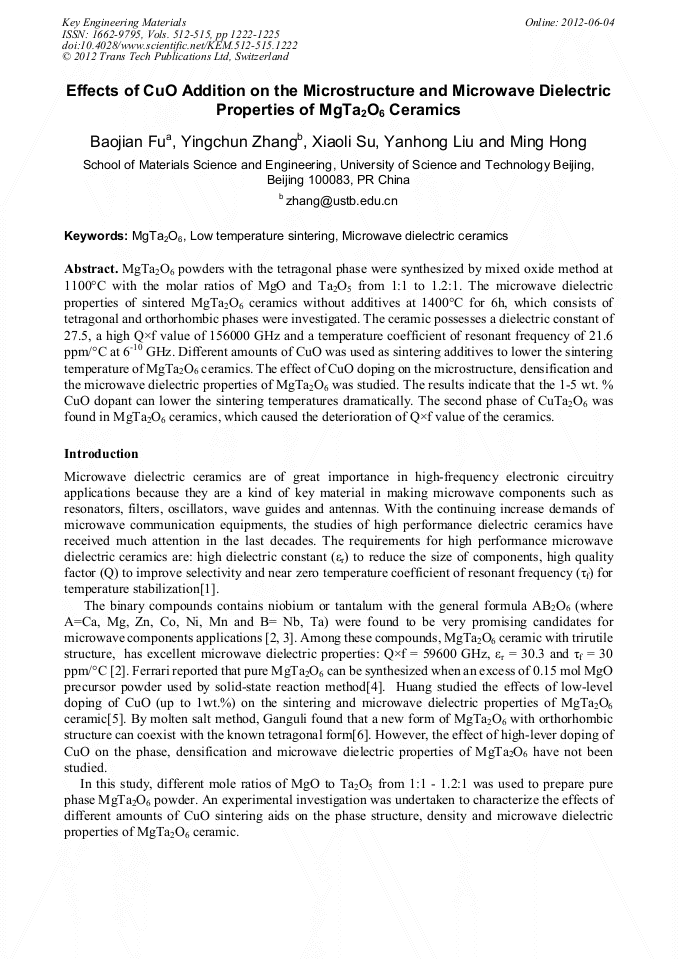

MgTa₂O₆ powders with the tetragonal phase have been synthesized by mixed oxide method at 1100 °C when the molar ratios of MgO and Ta₂O₅ increase from 1:1 to 1.2:1. The microwave dielectric properties of sintered MgTa₂O₆ ceramics without additives at 1400°C for 6h, which consists of tetragonal and orthorhombic phases have been investigated. The results show that the ceramic possesses a dielectric constant of 27.5, a high Q×f value of 156000 GHz and a temperature coefficient of resonant frequency of 21.6 ppm/°C at 6-10 GHz. Different amounts of CuO has been used as sintering additives to lower the sintering temperature of MgTa₂O₆ ceramics. The effect of the CuO doping agent on the microstructure, densification and the microwave dielectric properties of MgTa₂O₆ ceramics has been studied using X-ray diffraction, scanning electron microscope and HP8720ES network analyzer. The results indicate that the 1-5 wt. % CuO dopant can lower the sintering temperatures of this materials dramatically. The second phase of CuTa₂O₆ was found in MgTa₂O₆ ceramics, which caused the deterioration of Q×f value of the ceramics.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1222-1225
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1222
• Online since: June 2012
• Authors: Bao Jian Fu, Ying Chun Zhang, Xiao Li Su, Yan Hong Liu, Ming Hong
• Keywords: Low Temperature Sintering, MgTa₂O₆, Microwave Dielectric Ceramics

References

[1] W. Wolfram, Microwave ceramics for resonators and filters, Curr. Opin. Solid State Mater. Sci. 1 (1996) 715-731

[2] H. J. Lee, I. T. Kim and K. S. Hong, Dielectric properties of AB2O6 compounds at microwave frequencies (A= Ca,Mg,Mn,Ca,Ni,Zn, and B= Nb, Ta), Jpn. J. Appl. Phys. 36 (1997) 1318-1320.

DOI: 10.1143/jjap.36.l1318

[3] R. C. Pullar, J. D. Breeze and N.M. Alford, Characterization and microwave dielectric properties of M2+Nb2O6 ceramics, J. Am. Ceram. Soc. 88 (2005) 2466-2471.

DOI: 10.1111/j.1551-2916.2005.00458.x

[4] C. R. Ferrari and A.C. Hernandes, MgTa2O6 and ZnTa2O6 ceramics from oxide precursors, J. Eur. Ceram. Soc. 22 (2002) 2101-2105.

DOI: 10.1016/s0955-2219(02)00020-1

[5] C. L. Huang, K. H. Chiang and C. Y. Huang, Microwave dielectric properties and micro- structures of MgTa2O6 ceramics with CuO addition, Mater. Chem. Phys. 90 (2005) 373-377.

DOI: 10.1016/j.matchemphys.2004.10.037

[6] A. K Ganguli, S. Nangia, M. Thirumal and P. L. Gai, A new form of MgTa2O6 obtained by the molten salt method, J. Chem. Sci. 118 (2006) 37-42.

DOI: 10.1007/bf02708763

[7] B. W. Hakki and P. D. Coleman, A dielectric resonator method of measuring inductive capacities in them millimeter range, IEEE. Trans. Microw. Theory.Tech. 8 (1960) 402-410.

DOI: 10.1109/tmtt.1960.1124749

[8] W.E Courtney, Analysis and evaluation of a method of measuring the complex permitivity of microwave insulators, IEEE. Trans. Microw. Theoty Tech. 18 (1970) 476-485.

DOI: 10.1109/tmtt.1970.1127271

[9] Y. Kobayashiy and M. Katoh, Microwave measurement of dielectric properties of low-loss materials by the dielectric rod resonator method, IEEE. Trans. Microw. Theory Tech. 33 (1985) 586-592.

DOI: 10.1109/tmtt.1985.1133033
