Synthesis of MnZn-Ferrite Using Coprecipitation Method

Kazushi Hoshi; Hiroki Kato; Takayuki Fukunaga; Shinichi Furusawa; Hiroshi Sakurai

doi:10.4028/www.scientific.net/KEM.534.22

Paper Titles

X-Ray Magnetic Diffraction Experiment of Fe₃Pt Alloy in Order Phase
p.3

Effects of Interface Roughness and Lattice Strain on Perpendicular Magnetic Anisotropy in Co/Pd Multilayer
p.7

Calculation of Autocorrelation Functions Using the Dv-Xα Method for 14 Electron Diatomic Molecules
p.12

One-Dimensional Long Range Order of Autocorrelation Functions for Polyethylene Type Clusters Using the DV-Xα Method
p.17

Synthesis of MnZn-Ferrite Using Coprecipitation Method
p.22

Synthesis of MnZn-Ferrite Using Sintering Aids
p.26

Electrical Conductivity of Li_2xZn_2-3xTi_1+xO₄ Crystal
p.31

Electrical Properties of DC-Sputtered Amorphous InGaZnO₄ Films
p.36

Structural Properties of SrTiO₃ Transparent Thin Films Formed by RF Magnetron Sputtering with Changing Substrate Temperatures
p.40

HomeKey Engineering MaterialsKey Engineering Materials Vol. 534Synthesis of MnZn-Ferrite Using Coprecipitation...

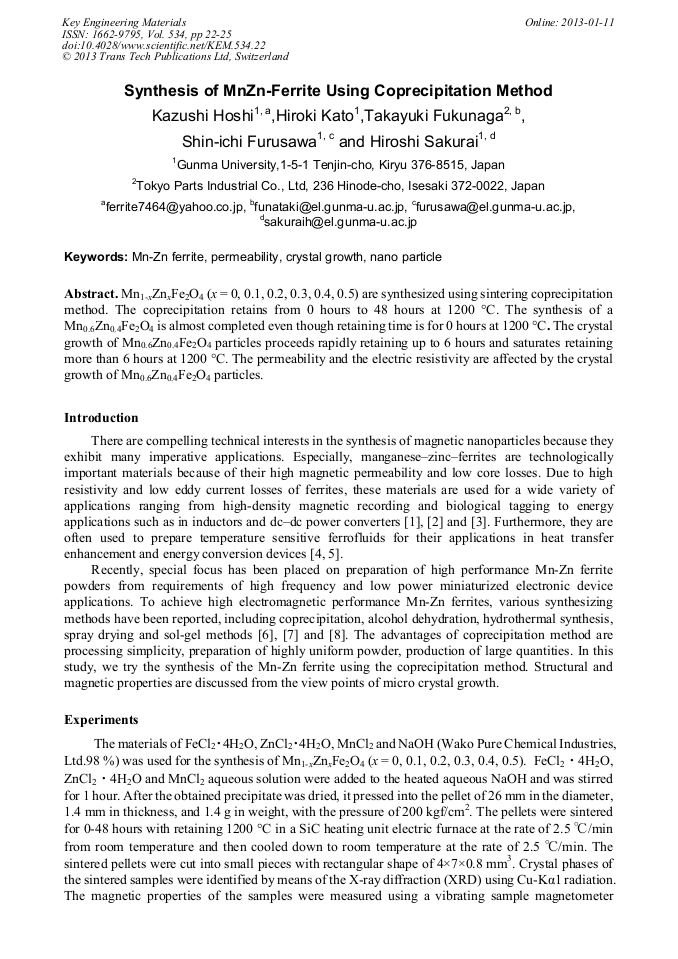

Synthesis of MnZn-Ferrite Using Coprecipitation Method

Abstract:

Mn_1-xZn_xFe₂O₄ (x = 0, 0.1, 0.2, 0.3, 0.4, 0.5) are synthesized using sintering coprecipitation method. The coprecipitation retains from 0 hours to 48 hours at 1200 °C. The synthesis of a Mn_0.6Zn_0.4Fe₂O₄ is almost completed even though retaining time is for 0 hours at 1200 °C. The crystal growth of Mn_0.6Zn_0.4Fe₂O₄ particles proceeds rapidly retaining up to 6 hours and saturates retaining more than 6 hours at 1200 °C. The permeability and the electric resistivity are affected by the crystal growth of Mn_0.6Zn_0.4Fe₂O₄ particles.
