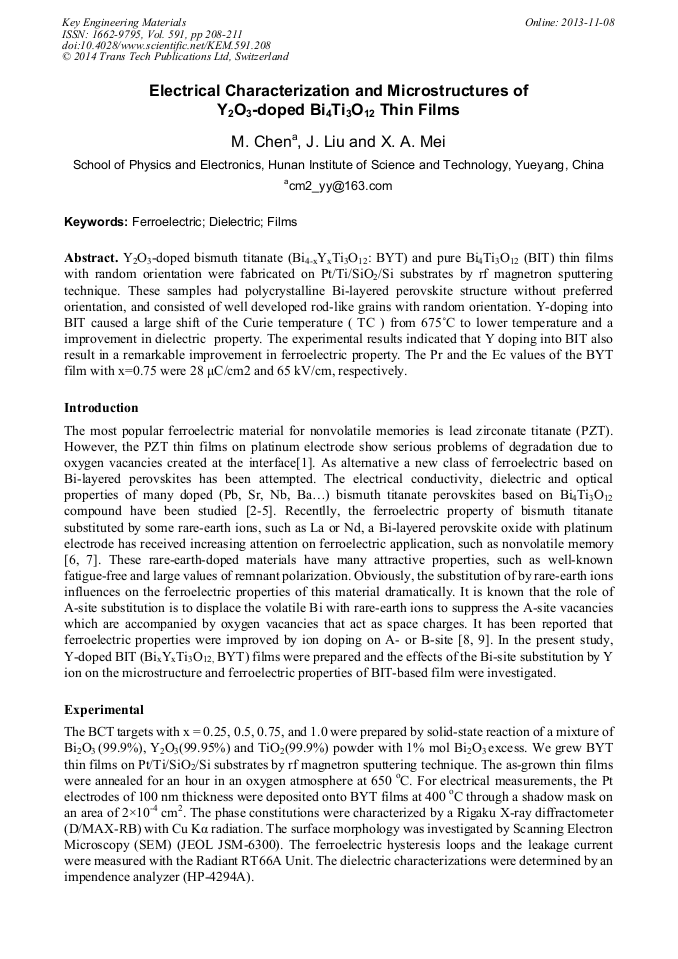

Electrical Characterization and Microstructures of Y₂O₃-Doped Bi₄Ti₃O₁₂ Thin Films

Abstract:

Y₂O₃-doped bismuth titanate (Bi_4-xY_xTi₃O₁₂: BYT) and pure Bi₄Ti₃O₁₂ (BIT) thin films with random orientation were fabricated on Pt/Ti/SiO₂/Si substrates by rf magnetron sputtering technique. These samples had polycrystalline Bi-layered perovskite structure without preferred orientation, and consisted of well developed rod-like grains with random orientation. Y-doping into BIT caused a large shift of the Curie temperature ( TC ) from 675 °C to lower temperature and a improvement in dielectric property. The experimental results indicated that Y doping into BIT also result in a remarkable improvement in ferroelectric property. The Pr and the Ec values of the BYT film with x=0.75 were 28 μC/cm2 and 65 kV/cm, respectively.

• Periodical: Key Engineering Materials (Volume 591)
• Pages: 208-211
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.591.208
• Online since: November 2013
• Authors: Min Chen, J. Liu, X.A. Mei
• Keywords: Dielectric, Ferroelectric, Film

References

[1] U. Chon, K. Kim, H. M. Jang, et al.: Fatigue-free samarium-modified bismuth titanate (Bi4-xSmxTi3O12) film capacitors having large spontaneous polarizations, Appl. Phys. Lett. 79 (2001) 3137-3139.

DOI: 10.1063/1.1415353

[2] D. Wu, A. D. Li, T. Yu, et al.: Polarization and electrical properties of Bi3. 25Pr0. 75Ti3O12 ferroelectric thin films, Appl. Phys. Lett. 78 (2004) 95-99.

[3] J. F. Scott, C. A. P. De Araujo, Ferroelectric memories, Science, 246 (1998) 1400-1402.

[4] C. A. P. De Araujo, J. D. Cuchiare, L. D. Mc Millan, et al.: Fatigue-free ferroelectric capacitors, Nature, 374 (1995) 627-629.

[5] T. Kojima, T. Sakai, T. Watanabe, et al.: Large remanent polarization of (Bi, Nd)4Ti3O12 epitaxial thin films grown by metalorganic chemical vapor deposition, Appl. Phys. Lett. 80 (2002) 2746-2748.

DOI: 10.1063/1.1468914

[6] H. Matsuda, S. Ito, T. Iijima, Orientation behavior and ferro-piezoelectric properties of Bi4-xPrxTi3O12 polycrystalline films, Jpn. J. Appl. Phys. 42 (2003) 5977-5980.

DOI: 10.1143/jjap.42.5977

[7] W. Wang, J. Zhu, X. Y. Mao, et al.: Properties of Tunsten-doped Bi4Ti3O12-Sr Bi4Ti4O15 intergrouth ferroelectrics, Mater. Res. Bull. 42 (2007) 274-280.

[8] Gu H S, Kuang A X, Wang S M , Bao D H, Synthesis and ferroelectric properties of c-axies oriented Bi4Ti3O12 thin films by sol-gel process on platinum coated silicon, Appl. Phys. Lett. 1996, 68(9): 1209-1210.

DOI: 10.1063/1.115971

[9] B.H. Park, B.S. Kang, S. D. Bu, et al.: Fatigue-free ferroelectric capacitors, Nature, 401(1999) 682-685.

[10] D. Wu, D. Li A, and N. B. Ming, Dielectric characterization of Bi3. 25La0. 75Ti3O12 thin films, Appl. Phys. Lett. 84 (2004) 4505-4507.

DOI: 10.1063/1.1757631

[11] M. Chen, Y. Wang, Z. L. Liu, et al.: Electrical Characteristics and Microstructures of Sm2O3-doped Bi4Ti3O12 Ceramics, Chin. Phys. Lett. 21 (2004) 1811-1814.
