The Design and Simulation of Vibratory Ring Gyroscope

Abstract:

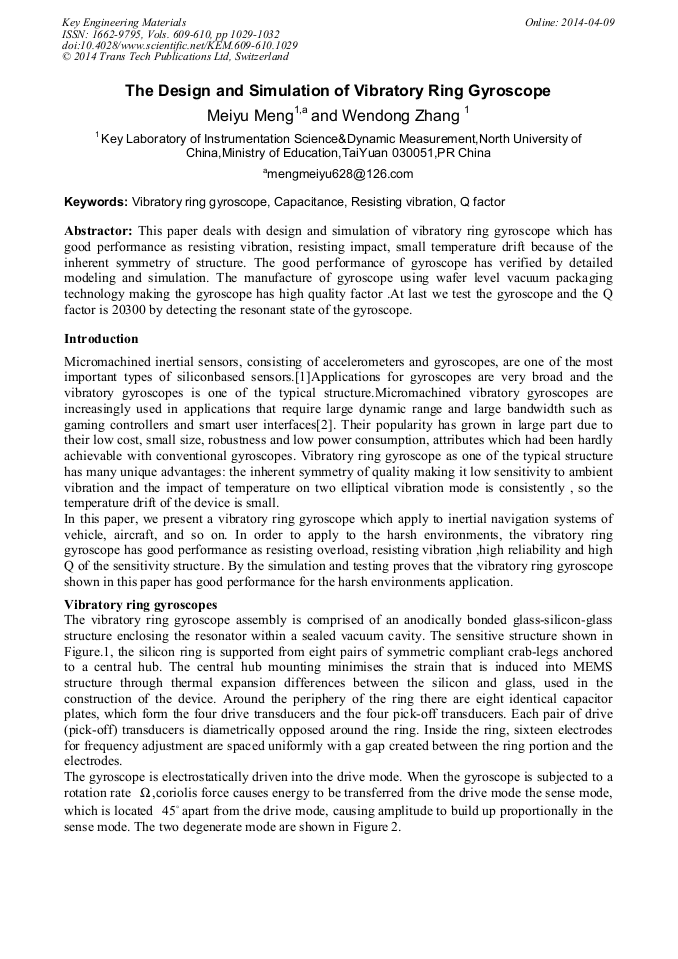

This paper deals with design and simulation of vibratory ring gyroscope which has good performance as resisting vibration, resisting impact, small temperature drift because of the inherent symmetry of structure. The good performance of gyroscope has verified by detailed modeling and simulation. The manufacture of gyroscope using wafer level vacuum packaging technology making the gyroscope has high quality factor .At last we test the gyroscope and the Q factor is 20300 by detecting the resonant state of the gyroscope.
