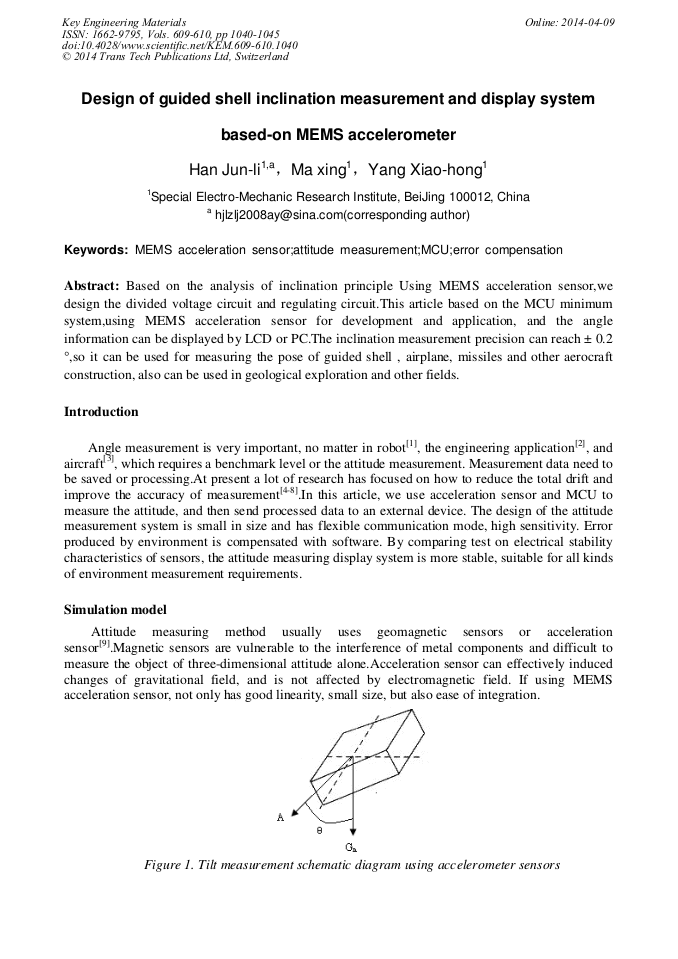

Design of Guided Shell Inclination Measurement and Display System Based-on MEMS Accelerometer

Abstract:

Based on the analysis of inclination principle Using MEMS acceleration sensor,we design the divided voltage circuit and regulating circuit.This article based on the MCU minimum system,using MEMS acceleration sensor for development and application, and the angle information can be displayed by LCD or PC.The inclination measurement precision can reach ± 0.2 °,so it can be used for measuring the pose of guided shell , airplane, missiles and other aerocraft construction, also can be used in geological exploration and other fields.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1040-1045
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1040
• Online since: April 2014
• Authors: Jun Li Han*, Xing Ma, Xiao Hong Yang
• Keywords: Attitude Measurement, Error Compensation, MCU, MEMS Acceleration Sensor
