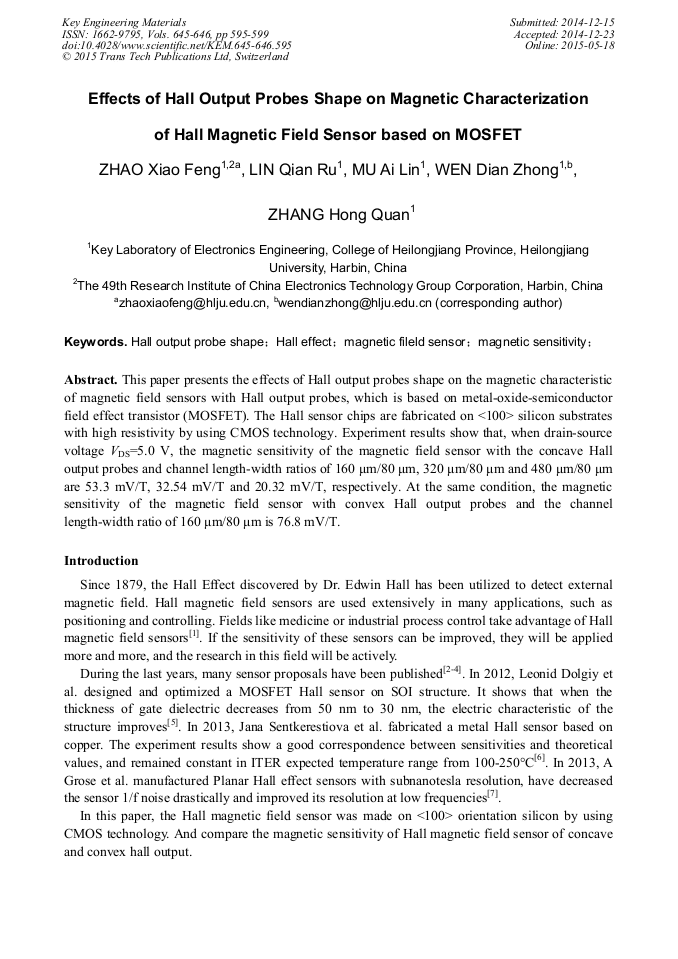

Effects of Hall Output Probes Shape on Magnetic Characterization of Hall Magnetic Field Sensor Based on MOSFET

Abstract:

This paper presents the effects of Hall output probes shape on the magnetic characteristic of magnetic field sensors with Hall output probes, which is based on metal-oxide-semiconductor field effect transistor (MOSFET). The Hall sensor chips are fabricated on <100> silicon substrates with high resistivity by using CMOS technology. Experiment results show that, when drain-source voltage V_DS=5.0 V, the magnetic sensitivity of the magnetic field sensor with the concave Hall output probes and channel length-width ratios of 160 μm/80 μm, 320 μm/80 μm and 480 μm/80 μm are 53.3 mV/T, 32.54 mV/T and 20.32 mV/T, respectively. At the same condition, the magnetic sensitivity of the magnetic field sensor with convex Hall output probes and the channel length-width ratio of 160 μm/80 μm is 76.8 mV/T.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 595-599
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.595
• Online since: May 2015
• Authors: Xiao Feng Zhao, Qian Ru Lin, Ai Lin Mu, Dian Zhong Wen*, Hong Quan Zhang
• Keywords: Hall Effect, Hall Output Probe Shape, Magnetic Fileld Sensor, Magnetic Sensitivity

References

[1] Leonid Dolgiy, Ivan Lovshenko, Vladislav Nelayev, et al. Technology and device design and optimization for the MOSFET Hall sensor on SOI structure[C]. International Conference on Mixed Design of Integrated Circuits and Systems, 19 (2012).

[2] Jana Sentkerestiova, Ivan Duran, Karel Kovarik, et al. Performance of metal Hall sensors based on copper[J]. Fusion Engineering and Design, 88 (2013), pp.1310-1314.

[3] A. Grosz, V. Mor, E. Paperno, S. Amrusi, et al. Planar Hall effect sensors with subnanotesla resolution[J]. IEEE Magnetic Letters, 4 (2013)6500104(1-4).

DOI: 10.1109/lmag.2013.2276551

[4] Zhao Xiaofeng, Wen Dianzhong, Zhuang Cuicui, et al. High sensitivity magnetic field sensors based on nano-polysilicon thin-film transistors[J]. Chinese Physics Letters, 29 (2012)118501(1-4).

DOI: 10.1088/0256-307x/29/11/118501

[5] Zhao Xiaofeng, Wen Dianzhong, Zhuang Cuicui, et al. Fabrication and characteristics of the magnetic field sensors based on nano-polysilicon thin-film transistors[J]. Journal of Semiconductors, 34(2013)036001(1-6).

DOI: 10.1088/1674-4926/34/3/036001

[6] Leonid Dolgiy, Ivan Lovshenko, Vladislav Nelayev, et al. Technology and Device Design and Optimization for the MOSFET Hall Sensor on SOI Structure[C]. International Conference on Mixed Design of Integrated Circuits and Systems, 19 (2012).

[7] Jana Sentkerestiova, Ivan Duran, Karel Kovarik, et al. Performance of metal Hall sensors based on copper[J]. Fusion Engineering and Design, 88 (2013), pp.1310-1314.

[8] Zhao Xiaofeng, Wen Dianzhong, Lü Meiwei, et al. Fabrication and characterization of the MAGFET based on the nano-polysilicon thin-film transistors[J]. Journal of Semiconductors, 35(2014)094004(1-6).

DOI: 10.1088/1674-4926/35/9/094004
