A 16 Bits 500 kHz Sigma-Delta DAC for Silicon Micro Gyroscope

Abstract:

In this paper, a 16 Bits 500 kHz Sigma-Delta DAC for Silicon Micro Gyroscope is proposedin order to enhance the precision of the digital to analog converter level.The interpolation filterhas achieved 64 times interpolation function,using three cascaded manner, it employs three level cascaded of FIR filterstructure. It achieves a 64 times oversampling feature. The signalbandwidth of the designs interpolation filter is 100 kHz, SNR reach 106dB. Fifth-order single-loop structure CIFB achieve noise shaping modulator function to verify the stability of the system, after the completion of CSD coefficient coding, signal to noise ratio reached 119.7dB, effective bits reached 19.59. The switched capacitor technology actualize analog reconstruction filter module, and using a typically switched capacitor DAC achieved high jump "0, 1" digital signal is converted into an analog signal, the digital-analog conversion achieved.

You might also be interested in these eBooks

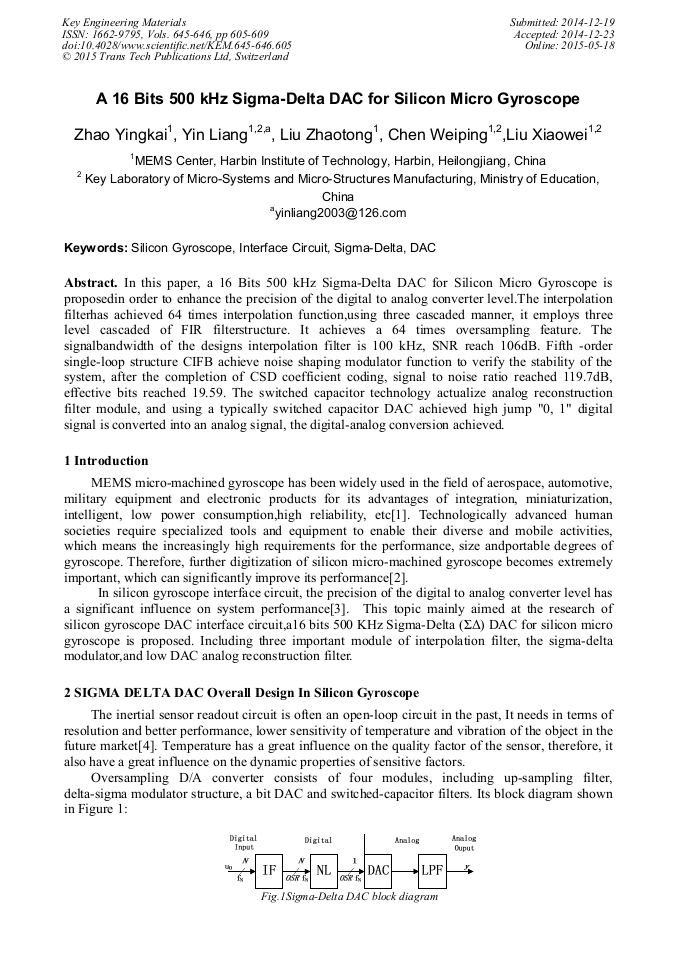

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 645-646)

Pages:

605-609

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.645-646.605

Citation:

Cite this paper

Online since:

May 2015

Authors:

Ying Kai Zhao, Liang Yin*, Zhao Tong Liu, Wei Ping Chen, Xiao Wei Liu

Keywords:

DAC, Interface Circuit, Sigma-Delta, Silicon Gyroscope

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] E. Mounier and J. Baron. Changes in the way MEMS are Manufactured are Primarily being Driven by Volume Consumer MEMS Markets. Solid State Technology Mag., Vol. 55, Issue 6, July (2012).

Google Scholar

[2] J. Shah, H. Johari, A. Sharma, et al. CMOS ASIC for MHz Silicon BAW Gyroscope. Circuits and Systems, vol. 8, 2008: 2458-2461.

DOI: 10.1109/iscas.2008.4541953

Google Scholar

[3] I. Fujimori, T. Sugimoto. A1. 5 V, 4. 1mW Dual-channel Audio Delta-sigma D/A Converter. IEEE Journal of Solid-State Circuits, 1998. 33(12): 1863-1870.

DOI: 10.1109/4.735525

Google Scholar

[4] S. Bandyopadhyay and A. P. Chandrakasan. Platform Architecture for Solar, Thermal, and Vibration Energy Combining with MEMS and Single Inductor. Solid-State Circuits, IEEE Journal, Vol. 47, Issue 9. Sept. 2012: 2199-2215.

DOI: 10.1109/jssc.2012.2197239

Google Scholar

[5] J. W. Weigold, K. Najifi, S. W. Pang. Design and Fabrication of Sub micrometer, Single Crystal Si Accelerometer. IEEE Journal of Micro electro mechanical Systems, 2001, 10(4): 518-524.

DOI: 10.1109/84.967374

Google Scholar

[6] Robert H. Walden. Analog-to-Digital Converter Survey and Analysis. Journal on Selected Areas in Communications, vol. 17, 1999: 164-176.

Google Scholar

[7] A. Kulygin, C. Kirsch, P. Schwarz, et al. Decoupled surface micro-machined gyroscope with single-point suspension. Journal of micro-electro-mechnical system. 21(1), 2012. 02: 206-216.

DOI: 10.1109/jmems.2011.2170816

Google Scholar
