Effect of Rapid Thermal Annealing on the Structural Evolution and Electrical Property of Gold Films Deposited on Silicon

Abstract:

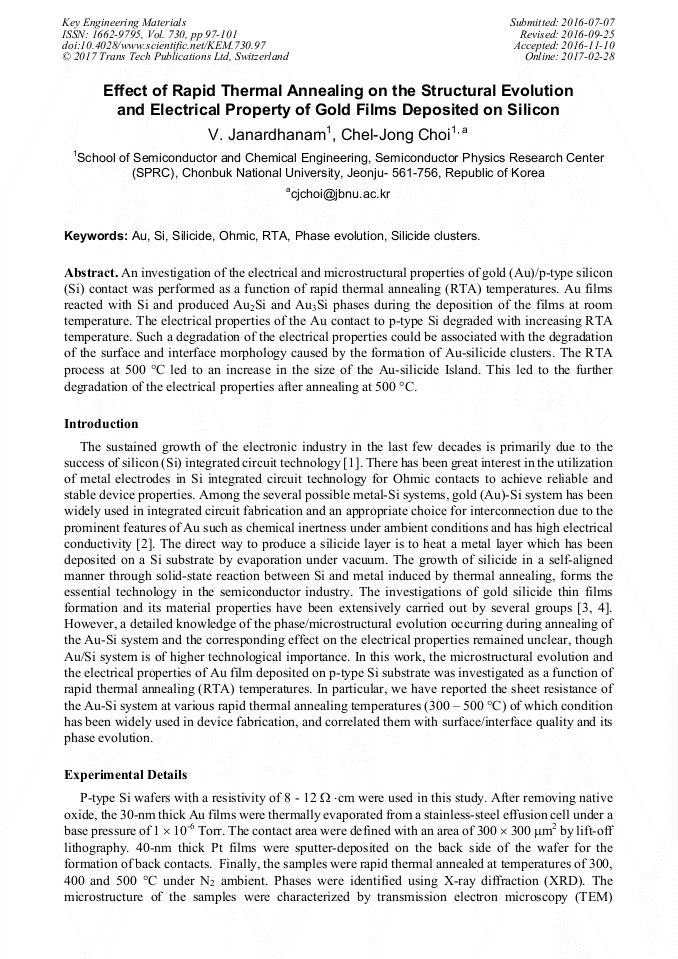

An investigation of the electrical and microstructural properties of gold (Au)/p-type silicon (Si) contact was performed as a function of rapid thermal annealing (RTA) temperatures. Au films reacted with Si and produced Au₂Si and Au₃Si phases during the deposition of the films at room temperature. The electrical properties of the Au contact to p-type Si degraded with increasing RTA temperature. Such a degradation of the electrical properties could be associated with the degradation of the surface and interface morphology caused by the formation of Au-silicide clusters. The RTA process at 500 °C led to an increase in the size of the Au-silicide Island. This led to the further degradation of the electrical properties after annealing at 500 °C.
