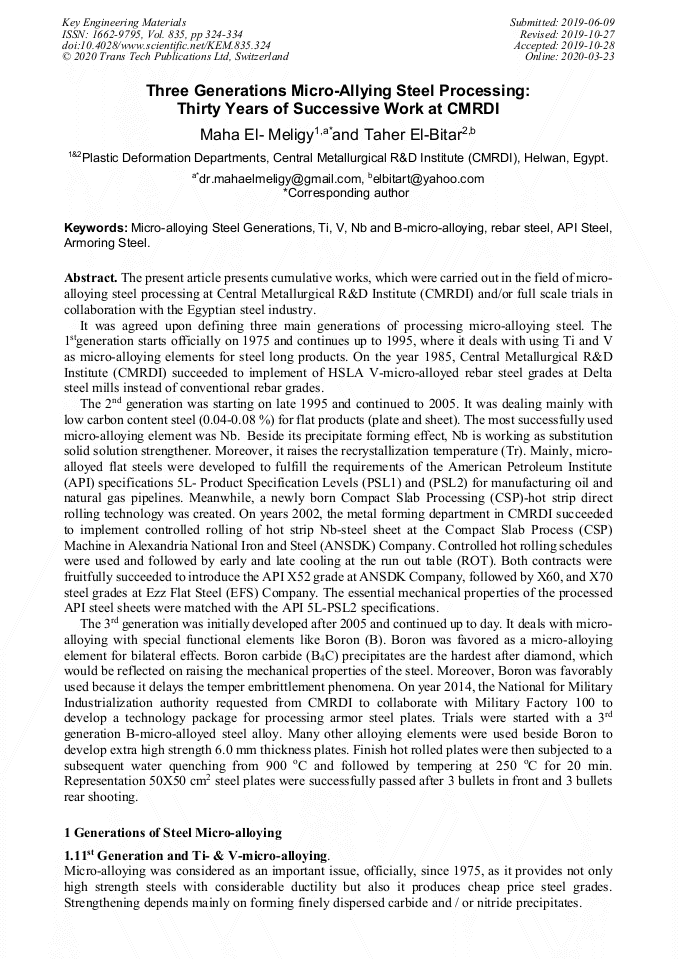

Three Generations Micro-Allying Steel Processing: Thirty Years of Successive Work at CMRDI

Abstract:

The present article presents cumulative works, which were carried out in the field of micro-alloying steel processing at Central Metallurgical R&D Institute (CMRDI) and/or full scale trials in collaboration with the Egyptian steel industry.It was agreed upon defining three main generations of processing micro-alloying steel. The 1^stgeneration starts officially on 1975 and continues up to 1995, where it deals with using Ti and V as micro-alloying elements for steel long products. On the year 1985, Central Metallurgical R&D Institute (CMRDI) succeeded to implement of HSLA V-micro-alloyed rebar steel grades at Delta steel mills instead of conventional rebar grades.The 2^nd generation was starting on late 1995 and continued to 2005. It was dealing mainly with low carbon content steel (0.04-0.08 %) for flat products (plate and sheet). The most successfully used micro-alloying element was Nb. Beside its precipitate forming effect, Nb is working as substitution solid solution strengthener. Moreover, it raises the recrystallization temperature (Tr). Mainly, micro-alloyed flat steels were developed to fulfill the requirements of the American Petroleum Institute (API) specifications 5L- Product Specification Levels (PSL1) and (PSL2) for manufacturing oil and natural gas pipelines. Meanwhile, a newly born Compact Slab Processing (CSP)-hot strip direct rolling technology was created. On years 2002, the metal forming department in CMRDI succeeded to implement controlled rolling of hot strip Nb-steel sheet at the Compact Slab Process (CSP) Machine in Alexandria National Iron and Steel (ANSDK) Company. Controlled hot rolling schedules were used and followed by early and late cooling at the run out table (ROT). Both contracts were fruitfully succeeded to introduce the API X52 grade at ANSDK Company, followed by X60, and X70 steel grades at Ezz Flat Steel (EFS) Company. The essential mechanical properties of the processed API steel sheets were matched with the API 5L-PSL2 specifications.The 3^rd generation was initially developed after 2005 and continued up to day. It deals with micro-alloying with special functional elements like Boron (B). Boron was favored as a micro-alloying element for bilateral effects. Boron carbide (B₄C) precipitates are the hardest after diamond, which would be reflected on raising the mechanical properties of the steel. Moreover, Boron was favorably used because it delays the temper embrittlement phenomena. On year 2014, the National for Military Industrialization authority requested from CMRDI to collaborate with Military Factory 100 to develop a technology package for processing armor steel plates. Trials were started with a 3^rd generation B-micro-alloyed steel alloy. Many other alloying elements were used beside Boron to develop extra high strength 6.0 mm thickness plates. Finish hot rolled plates were then subjected to a subsequent water quenching from 900 °C and followed by tempering at 250 °C for 20 min. Representation 50X50 cm² steel plates were successfully passed after 3 bullets in front and 3 bullets rear shooting.

• Periodical: Key Engineering Materials (Volume 835)
• Pages: 324-334
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.835.324
• Online since: March 2020
• Authors: Maha El-Meligy*, Taher El-Bitar
• Keywords: API Steel, Armoring Steel, B-Micro-Alloying, Micro-Alloying Steel Generations, Nb-Micro-Alloying, Rebar Steel, Ti-Micro-Alloying, V-Micro-Alloying

References

[1] G. F. Comstock, Titanium in Iron and Steel, New York: John Wiley & Sons Inc, (1955).

[2] T. N. Baker, Processes, microstructure and properties of vanadium microalloyed steels,, Materials Science and Technology, vol. 25, no. 9, pp.1083-1107, (2009).

DOI: 10.1179/174328409x453253

[3] S. Zajac, T. Siwecki, W. B. Hutchinson and R. Lagneb, Strengthening mechanisms in vanadium microalloyed steels intended for long products,, ISIJ international, vol. 38, no. 10, pp.1130-1139, (1998).

DOI: 10.2355/isijinternational.38.1130

[4] H. l. Wei, G. q. Liu, H. t. Zhao and M. h. Zhang, Effect of carbon content on hot deformation behaviors of vanadium microalloyed steels,, Materials Science & Engineering A, vol. 596, p.112–120, (2014).

DOI: 10.1016/j.msea.2013.12.063

[5] Z. Baochun, . Z. Tan, . L. Guiyan and L. Qiang,, Effect of Nitrogen on Transformation Behaviors and Microstructure of V-N Microalloyed Steel,, in HSLA Steels 2015, Microalloying 2015 & Offshore Engineering Steels 2015The Chinese Society for Metals (CSM) and Chinese Academy of Engineering (CAE) ,TMS, 2016, China, (2015).

DOI: 10.1007/978-3-319-48767-0

[6] R. W. Vanderbeck, controlled low temperature hot rolling as practiced in Europe,, weld journal, vol. 37, no. 3, pp.114-116, (1958).

[7] J. G. Lenard, State-of- The-Art of Controlled Rolling,, in Modeling Hot Deformation of Steels, Berlin Heidelberg, Springer- Verlag , 1989, pp.1-18.

[8] H. Mirzadeh, J. M. Cabrera, J. M. Prado and A. Najafizadeh, Hot deformation behavior of a medium carbon microalloyed steel,, Materials Science and Engineering A, vol. 528, pp.3876-3882, (2011).

DOI: 10.1016/j.msea.2011.01.098

[9] D. Kundalkar and A. Tewari, Effect of Strain, Strain Rate and Temperature of Hot Deformation on Microstructural Evolution of Ti and V Microalloyed Steel,, international Journal of Metallurgical Engineering, vol. 2, no. 2, pp.117-124, (2013).

[10] J. Xia, X. Huo, L. Li, Z. Peng and S. Chen, Development of Ti microalloyed high strength steel plate by controlling thermo-mechanical control process schedule,, Materials Research Express, vol. 4, no. 12, pp.1-11, (2017).

DOI: 10.1088/2053-1591/aa9bba

[11] Y. Prasad and S. Sasidhara, Hot Working Guide - A Compendium of Processing Maps, USA: ASM International, (1997).

[12] R. d. S. Septimio, S. T. Button and C. J. V. Tyne, Processing maps for the analysis of hot workability of microalloyed steels 38MnSiVS5 and 0.39C1.47Mn,, Mater Sci, vol. 51, pp.2512-2528, (2016).

DOI: 10.1007/s10853-015-9563-2

[13] A. Karmakar, P. Sahu, S. Neogy, D. Chakrabarti, R. Mitra, S. Mukherjee and S. Kundu, Effect of Cooling Rate and Chemical Composition on Microstructure and Properties of Naturally Cooled Vanadium-Microalloyed Steels,, Metallurgical and Materials Transactions A, vol. 48, no. 4, pp.1581-1595, (2017).

DOI: 10.1007/s11661-017-3964-6

[14] W. Pengfei, Z. Li, G. Lin, S. Z. Caifuyan and . Q. Yong, Influence of Vanadium on the Microstructure and Mechanical Properties of Medium-Carbon Steels for Wheels,, Metals, vol. 8, no. 12, p. article no.978, (2018).

DOI: 10.3390/met8120978

[15] N. Zhou, F. Zhao, . M. Wu, B. Jiang , C. Zhang and Y. Liu, Hot workability of V-Ti microalloyed steel for forging,, Metall. Res. Technol., vol. 116, pp.216-221, (2019).

DOI: 10.1051/metal/2018066

[16] G. M. Megahed, S. K. Paul, T. A. El-Bitar and F. Ibrhim, Development of X60/X70 Line Pipe Steels through EAF-Thin Slab Casting Technology at Ezz Flat Steel, Ain Sukhna, Egypt,, Materials Science Forum, Vols. 500-501, pp.261-268, (2005).

DOI: 10.4028/www.scientific.net/msf.500-501.261

[17] S. Vervynckt, K. Verbeken, B. Lopez and J. J. Jonas, Modern HSLA steels and role of non-recrystallisation temperature,, International Materials Reviews, vol. 57, no. 4, pp.187-207, (2012).

DOI: 10.1179/1743280411y.0000000013

[18] A. A. Karmakar, S. Biswas, S. Mukherjee, D. Chakrabarti and V. Kumar, Effect of composition and thermo-mechanical processing schedule on the microstructure, precipitation and strengthening of Nb-microalloyed steel,, Materials Science & Engineering A, vol. 690, pp.158-169, (2017).

DOI: 10.1016/j.msea.2017.02.101

[19] Z. X. Guo, thermomechanical processing of ferrous alloys,, in The Deformation and Processing of Structural Materials, Boca Raton,USA, CRC press, 2005, pp.76-125.

DOI: 10.1533/9781845690786.76

[20] H. Niakana and A. Najafizadehb, Effect of niobium and rolling parameters on the mechanical properties and microstructure of dual phase steels,, Materials Science & Engineering A, vol. 527, pp.5410-5414, (2010).

DOI: 10.1016/j.msea.2010.05.078

[21] L. B. Gomez, A. M. Flores and H. Carreon, Production and characterization of niobium and titanium microalloyed steels,, REVISTA MEXICANA DE FÍSICA S, vol. 55, no. 1, pp.110-113, (2009).

[22] B. K. Panigrahi, Processing of low carbon steel plate and hot strip—an overview,, Bull. Mater. Sci., vol. 24, no. 4, pp.361-371, (2001).

DOI: 10.1007/bf02708632

[23] T. El-Bitar, M. El-Meligy and E. El-Shenawy, Prediction of roll separating force in a roll pass,, High Performance and Optimum Design of Structures and Materials, vol. 137, pp.67-77, (2014).

DOI: 10.2495/hpsm140071

[24] S. Q. Yuan and G. L. Liang, Microstructures and Mechanical Properties of an Ultra-Fine Acicular Ferrite/Bainite Steel Plate,, Adv. Mater. Sci., vol. 33, pp.73-76, (2013).

[25] A. A. Lakshmi, C. S. Rao, J. Gangadhar, C. Srinivasu and S. Singh, Review of Processing Maps and Development of Qualitative Processing Maps,, Materials Today, vol. 4, pp.946-956, (2017).

DOI: 10.1016/j.matpr.2017.01.106

[26] S. F. Medina and C. A. Hernandez, General expression of the Zener-Hollomon parameter as a function of the chemical composition of low alloy and microalloyed steels,, Acta Mater, vol. 44, no. 1, pp.137-148, (1996).

DOI: 10.1016/1359-6454(95)00151-0

[27] M. R. El-Meliegy, T. El- Bitar and B. Tabakova, Numerical Model Detecting The Effect Of Inter- Pass Time On Grain Size For Nb- Microalloyed Steel,, in 2nd International Conference On Advances in Engineering Sciences & Technologies, Sofia, Bolgarya, (2005).

[28] P. Uranga, B. López and J. R. Ibabe, Thermo-mechanical Treatments of long products: from Conventional to Innovative Solutions,, in Metals Processing and Manufacturing Conference (MPM 07), Cairo, Egypt, (2007).

[29] T. El-Bitar, M. El-meligy and E. El-Shenawy, Detection of dynamic softening during hot deformation of medium Si-steels by a Thermo- mechanical Simulator ( Gleeble 3500),, International Journal of Mechanical and Production Engineering Research and Development (IJMPERD), vol. 5, no. 6, pp.65-74, (2015).

[30] T. El-Bitar, M. El-Meligy, E. El-Shenawy, A. Almosilhy and N. Dawood, Thermo-Mechanical Processing of Armor Steel Plates,, International Journal of Chemical, Molecular, Nuclear, Materials and Metallurgical Engineering, vol. 11, no. 3, pp.179-185, (2017).

DOI: 10.4028/www.scientific.net/msf.879.489

[31] T. El-Bitar, E. El-Shenawy and M. El-meligy, Physical simulation of thermo-mechanical processing of ferritic-bainitic dual phase (FBDP) steel,, Materials Science Forum, vol. 879, pp.495-501, (2016).

DOI: 10.4028/www.scientific.net/msf.879.495

[32] A. E.-S. Ali and M. El-Meligy, Studying the effect of changing deformation and cooling rate on natural gas lines steels toughness, Egypt: , graduation project report, Faculty of Engineering, Helwan University, (2016).

[33] A. A. Gorni, Steel Forming and Heat Treatment Handbook, Sao Vicente SP, Brazil, (2013).

[34] M. Yousef, M. Samuel, M. El-Melig and T. El-Bitar, Hot Deformability of Si-Steel strips Containing Al," Hot Deformability of Si-Steel strips Containing Al, International Journal of Chemical, Molecular, Nuclear, Materials and Metallurgical Engineering, vol. 11, no. 10, pp.643-647, (2017).

[35] S. Gourdet and F. Montheillet, A model of continuous dynamic recrystallization,, Acta Mater., vol. 51, pp.2685-2699, (2003).

DOI: 10.1016/s1359-6454(03)00078-8

[36] J. Kang and S. Torizuka, Dynamic recrystallization by large strain deformation with a high strain rate in an ultralow carbon steel,, Scripta Materialia, vol. 57, no. 11, pp.1048-51, (2007).

DOI: 10.1016/j.scriptamat.2007.07.039

[37] T. El-Bitar, C. Klinkenberg, G. Megahed and A. El-Kady, Processing of Nb-microalloyed X52 line pipe steel at ANSDK' CSP Plant,, in 2nd International conference on the Thermomechanical Processing of Steels (TMP 2004), Liege/Belgium, (2004).

[38] T. El-Bitar, E. El-Shenawy, M. El-Meligy, A. Almosilhy and N. Dawood, Development of Armor High Strength Steel (HSS) Martensitic Plates for Troops Carriers,, Materials Science Forum, vol. 879, pp.489-494, (2016).

DOI: 10.4028/www.scientific.net/msf.879.489

[39] T. El-Bitar, E. El-Shenawy, M. El-Meligy, A. Almosilhy and N. Dawood, Final report on Technology Packages for Processing ARMOX 500B Steel in Abou Zabaal Engineering Industries Company (Military Factory 100),, (2015).

DOI: 10.4028/www.scientific.net/msf.879.489
