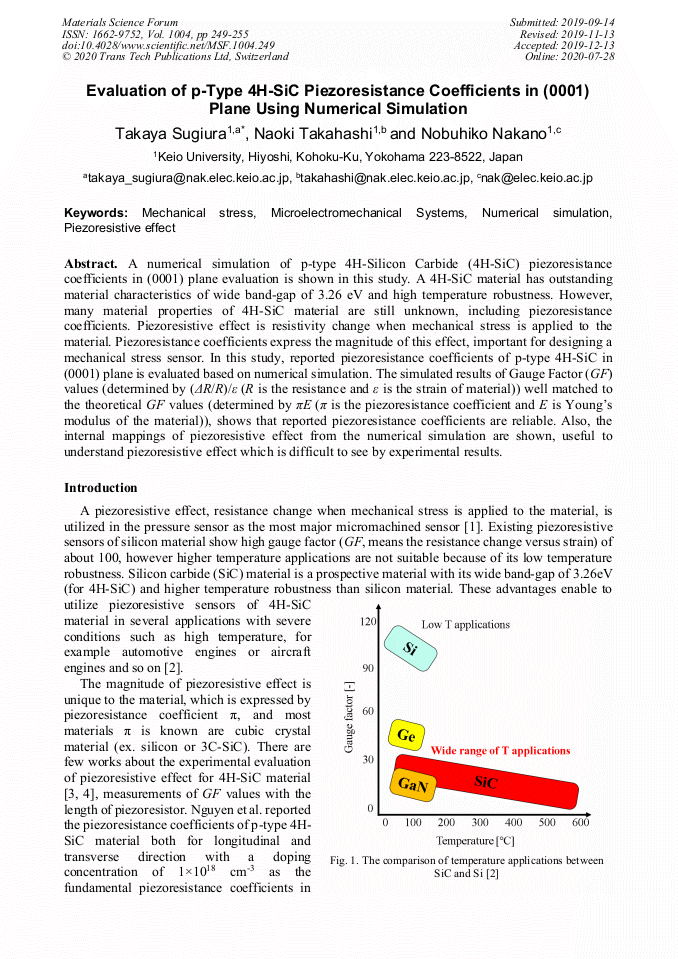

Evaluation of p-Type 4H-SiC Piezoresistance Coefficients in (0001) Plane Using Numerical Simulation

Abstract:

A numerical simulation of p-type 4H-Silicon Carbide (4H-SiC) piezoresistance coefficients in (0001) plane evaluation is shown in this study. A 4H-SiC material has outstanding material characteristics of wide band-gap of 3.26 eV and high temperature robustness. However, many material properties of 4H-SiC material are still unknown, including piezoresistance coefficients. Piezoresistive effect is resistivity change when mechanical stress is applied to the material. Piezoresistance coefficients express the magnitude of this effect, important for designing a mechanical stress sensor. In this study, reported piezoresistance coefficients of p-type 4H-SiC in (0001) plane is evaluated based on numerical simulation. The simulated results of Gauge Factor (GF) values (determined by (ΔR/R)/ε (R is the resistance and ε is the strain of material)) well matched to the theoretical GF values (determined by πE (π is the piezoresistance coefficient and E is Young’s modulus of the material)), shows that reported piezoresistance coefficients are reliable. Also, the internal mappings of piezoresistive effect from the numerical simulation are shown, useful to understand piezoresistive effect which is difficult to see by experimental results.

• Periodical: Materials Science Forum (Volume 1004)
• Pages: 249-255
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1004.249
• Online since: July 2020
• Authors: Takaya Sugiura*, Naoki Takahashi, Nobuhiko Nakano
• Keywords: Mechanical Stress, Microelectromechanical Systems, Numerical Simulation, Piezoresistive Effect

References

[1] Joseph C. Doll, Beth L. Pruitt, Piezoresistor Design and Applications, Springer, Stanford, CA, (2013).

[2] Hoang-Phuong Phan, Dzung Viet Dao, Koichi Nakamura, Sima Dimitrijev, Nam-Trung Nguyen, The Piezoresistive Effect of SiC for MEMS Sensors at High Temperatures: A Review, J. Microelec. Mecha. Systems. 24, no.6 (2015) 1663-1677.

DOI: 10.1109/jmems.2015.2470132

[3] T. Akiyama, D. Briand, N. F. de Rooij, Design-dependent Gauge Factors of Highly Doped n-Type 4H-SiC Piezoresistors, J. Micromech. Microeng. 22, 085034 (2012) 1-4.

DOI: 10.1088/0960-1317/22/8/085034

[4] Tuan-Khoa Nguyen et al., Experimental Investigation of Piezoresistive Effect in p-Type 4H-SiC, IEEE Elec. Dev. Letters 38, no.7 (2017) 955-958.

[5] Tuan-Khoa Nguyen et al., Isotropic Piezoresistance of p-Type 4H-SiC in (0001) Plane, Appl. Phys. Letters 113, 012104 (2018) 1-5.

DOI: 10.1063/1.5037545

[6] A. Alvin Barlian et al., Review: Semiconductor Piezoresistance for Microsystems, Proc. IEEE 97, issue 3 (2009) 513-552.

DOI: 10.1109/jproc.2009.2013612

[7] W. G. Pfann, R. N. Thurston, Semiconducting Stress Transducers Utilizing the Transverse and Shear Piezoresistance Effects, J. Appl. Phys. 32, no.10 (1961) 2008-2019.

DOI: 10.1063/1.1728280

[8] COMSOL, Inc., COMSOL Multiphysics Ver5.3a.

[9] D. B. M. Klaassen, A Unified Mobility Model for Device Simulation-I. Model Equations and Concentration Dependence, Sol. State Elec. 35, no.7 (1992) 953-959.

DOI: 10.1016/0038-1101(92)90325-7

[10] Narain D. Arora, John R. Hauser, David J. Roulston, Electron and Hole Mobilities in Silicon as a Function of Concentration and Temperature, IEEE Trans. Elec. Dev. ED-29, no.2 (1982) 292-295.

DOI: 10.1109/t-ed.1982.20698

[11] Sentaurus, Synopsys TCAD Software Release L-2016.03-SP2.

[12] J. Richter, J. Pedersen, M. Brandbyge, E. V. Thomsen, O. Hansen, Piezoresistance in p-Type Silicon Revisited, J. Appl. Phys. 104, 023715 (2008) 1-8.

DOI: 10.1063/1.2960335
