Structural Characterization of a Ga₂O₃Epitaxial Layer Grown on a Sapphire Substrate Using Cross-Sectional and Plan-View TEM/STEM Analysis

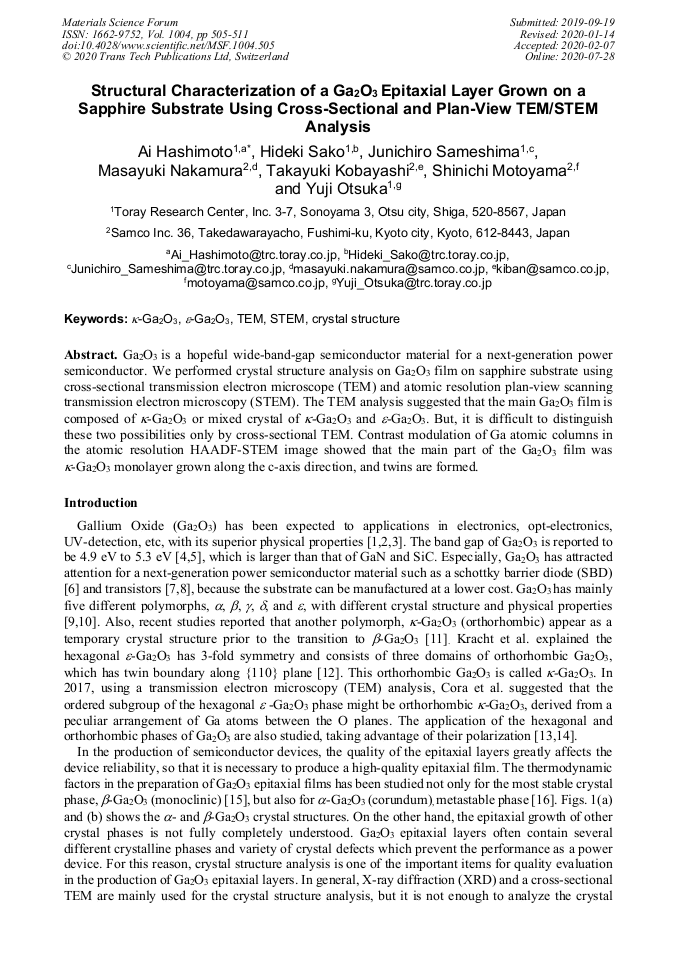

Article Preview

Abstract:

Ga₂O₃ is a hopeful wide-band-gap semiconductor material for a next-generation power semiconductor. We performed crystal structure analysis on Ga₂O₃ film on sapphire substrate using cross-sectional transmission electron microscope (TEM) and atomic resolution plan-view scanning transmission electron microscopy (STEM). The TEM analysis suggested that the main Ga₂O₃ film is composed of κ-Ga₂O₃ or mixed crystal of κ-Ga₂O₃ and ε-Ga₂O₃. But, it is difficult to distinguish these two possibilities only by cross-sectional TEM. Contrast modulation of Ga atomic columns in the atomic resolution HAADF-STEM image showed that the main part of the Ga₂O₃ film was κ-Ga₂O₃ monolayer grown along the c-axis direction, and twins are formed.
