Demonstration of Superior Static, Dynamic, and Short-Circuit Performance of 1.2 kV 4H-SiC Split-Gate Octagonal Cell MOSFETs Compared with Linear, Square, and Hexagonal Topologies

Abstract:

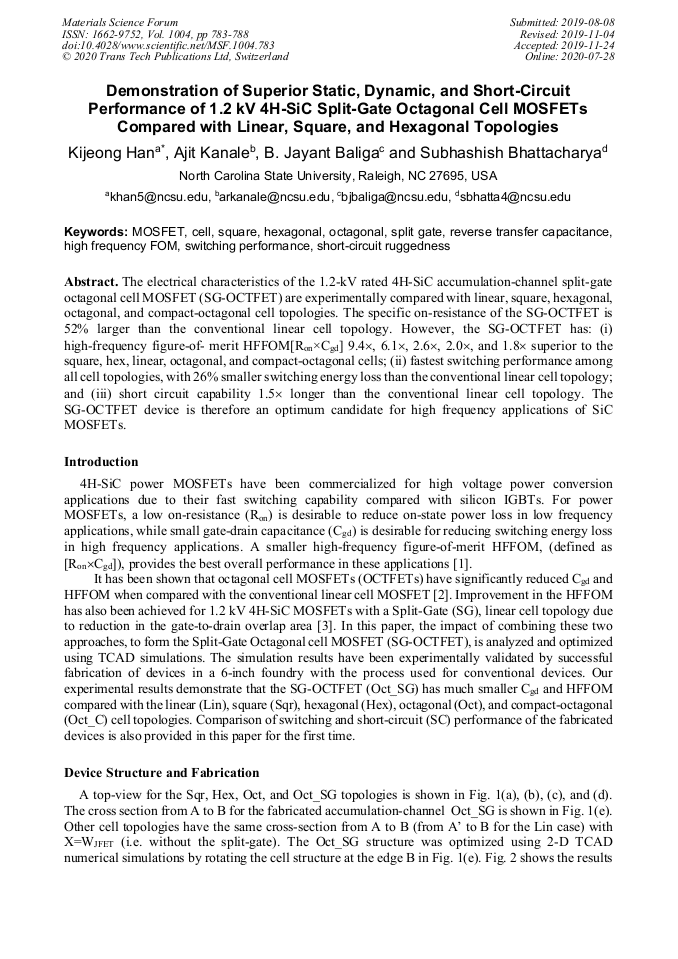

The electrical characteristics of the 1.2-kV rated 4H-SiC accumulation-channel split-gate octagonal cell MOSFET (SG-OCTFET) are experimentally compared with linear, square, hexagonal, octagonal, and compact-octagonal cell topologies. The specific on-resistance of the SG-OCTFET is 52% larger than the conventional linear cell topology. However, the SG-OCTFET has: (i) high-frequency figure-of-merit HFFOM[R_on×C_gd] 9.4×, 6.1×, 2.6×, 2.0×, and 1.8× superior to the square, hex, linear, octagonal, and compact-octagonal cells; (ii) fastest switching performance among all cell topologies, with 26% smaller switching energy loss than the conventional linear cell topology; and (iii) short circuit capability 1.5× longer than the conventional linear cell topology. The SG-OCTFET device is therefore an optimum candidate for high frequency applications of SiC MOSFETs.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2019

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1004)

Pages:

783-788

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1004.783

Citation:

Cite this paper

Online since:

July 2020

Authors:

Ki Jeong Han*, Ajit Kanale, B. Jayant Baliga, Subhashish Bhattacharya

Keywords:

Cell, Hexagonal, High Frequency FOM, MOSFET, Octagonal, Reverse Transfer Capacitance, Short-Circuit Ruggedness, Split Gate, Square, Switching Performance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. J. Baliga, Fundamentals of Power Semiconductor Devices 2nd ED. Gewerbestrasse 11, 6330 Cham, Switzerland: Springer, 2019, ch. 6, pp.283-440.

Google Scholar

[2] K. Han and B. J. Baliga, The 1.2 kV 4H-SiC OCTFET: A New Cell Topology with Improved High Frequency Figures-of-Merit,, IEEE Electron Device Letters, vol. 40, no. 2, pp.299-302, Feb. (2019).

DOI: 10.1109/led.2018.2889221

Google Scholar

[3] K. Han, B. J. Baliga, and W. Sung, Split-Gate 1.2-kV 4H-SiC MOSFET: Analysis and Experimental Validation,, IEEE Electron Device Letters, vol. 38, no. 10, pp.1437-1440, Oct. (2017).

DOI: 10.1109/led.2017.2738616

Google Scholar

[4] B. J. Baliga, W. Sung, K. Han, J. Harmon, A. Tucker, and S. Syed, PRESiCETM: Process Engineered for Manufacturing SiC Electronic Devices,, Mater. Sci. Forum, vol. 924, p.523–526, (2018).

DOI: 10.4028/www.scientific.net/msf.924.523

Google Scholar
