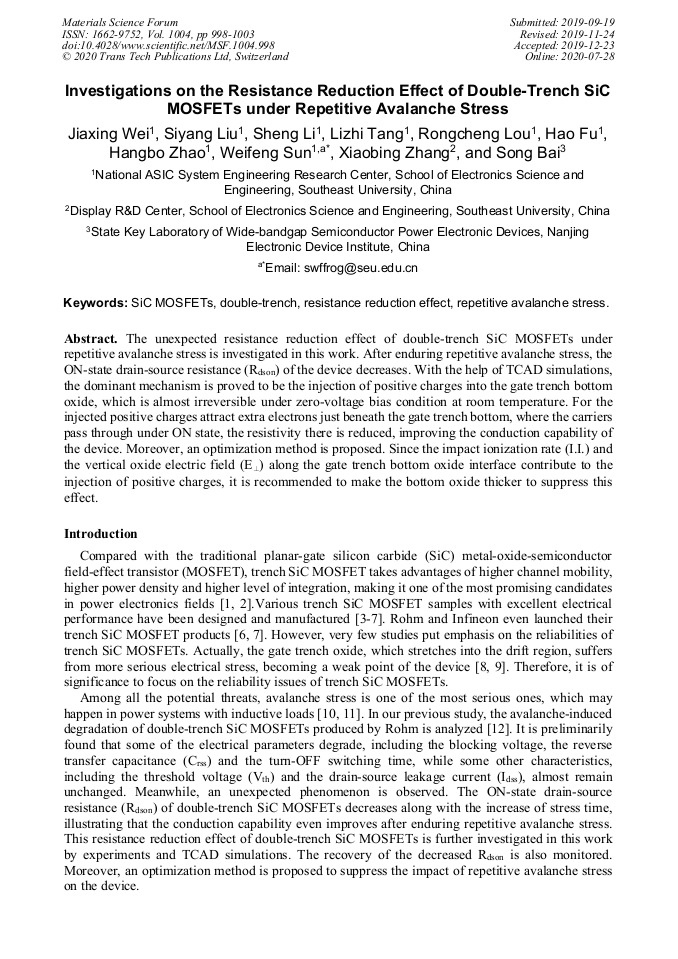

Investigations on the Resistance Reduction Effect of Double-Trench SiC MOSFETs under Repetitive Avalanche Stress

Abstract:

The unexpected resistance reduction effect of double-trench SiC MOSFETs under repetitive avalanche stress is investigated in this work. After enduring repetitive avalanche stress, the ON-state drain-source resistance (R_dson) of the device decreases. With the help of TCAD simulations, the dominant mechanism is proved to be the injection of positive charges into the gate trench bottom oxide, which is almost irreversible under zero-voltage bias condition at room temperature. For the injected positive charges attract extra electrons just beneath the gate trench bottom, where the carriers pass through under ON state, the resistivity there is reduced, improving the conduction capability of the device. Moreover, an optimization method is proposed. Since the impact ionization rate (I.I.) and the vertical oxide electric field (E_⊥) along the gate trench bottom oxide interface contribute to the injection of positive charges, it is recommended to make the bottom oxide thicker to suppress this effect.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2019

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1004)

Pages:

998-1003

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1004.998

Citation:

Cite this paper

Online since:

July 2020

Authors:

Jia Xing Wei, Si Yang Liu, Sheng Li, Li Zhi Tang, Rong Cheng Lou, Hao Fu, Hang Bo Zhao, Wei Feng Sun*, Xiao Bing Zhang, Song Bai

Keywords:

Double-Trench, Repetitive Avalanche Stress, Resistance Reduction Effect, SiC-MOSFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Hiyoshi, K. Uchida, M. Sakai, M. Furumai, T. Tsuno, and Y. Mikamura, Gate Oxide Reliability of 4H-SiC V-groove Trench MOSFET under Various Stress Conditions, IEEE ISPSD (2016) 39-42.

DOI: 10.1109/ispsd.2016.7520772

Google Scholar

[2] Z. Wang, F. Yang, S. L. Campbell, and M. Chinthavali, Characterization of SiC Trench MOSFETs in a Low-Inductance Power Module Package, IEEE Trans. Ind. Appl. 55 4 (2019) 4157-4166.

DOI: 10.1109/tia.2019.2902839

Google Scholar

[3] Y. Saitoh, T. Masuda, H. Michikoshi, H. Shiomi, S. Harada, and Y. Mikamura, V-groove trench gate SiC MOSFET with a double reduced surface field junction termination extensions structure, Jpn. J. Appl. Phys. 58 (2019) SBBD11.

DOI: 10.7567/1347-4065/aaffba

Google Scholar

[4] Y. Ebihara, A. Ichimura, S. Mitani, M. Noborio, Y. Takeuchi, S. Mizuno, T. Yamamoto, and K. Tsuruta, Deep-P Encapsulated 4H-SiC Trench MOSFETs With Ultra Low RonQgd, IEEE ISPSD (2018) 44-47.

DOI: 10.1109/ispsd.2018.8393598

Google Scholar

[5] T. Hosoi, S. Azumo, Y. Kashiwagi, S. Hosaka, K. Yamamoto, M. Aketa, H. Asahara, T. Nakakura, T. Kimoto, T. Shimura, and H. Watanabe, Reliability-Aware Design of Metal/High-k Gate Stack for High-Performance SiC Power MOSFET, IEEE ISPSD (2017) 247-250.

DOI: 10.23919/ispsd.2017.7988906

Google Scholar

[6] R. Nakamura, Y. Nakano, M. Aketa, K. Noriaki, and K. Ino, 1200V 4H-SiC Trench Devices, PCIM Europe (2014) 441-447.

Google Scholar

[7] D. Peters, R. Siemieniec, T. Aichinger, T. Basler, R. Esteve, W. Bergner, and D. Kueck, Performance and Ruggedness of 1200V SiC-Trench-MOSFET, IEEE ISPSD (2017) 239-242.

DOI: 10.23919/ispsd.2017.7988904

Google Scholar

[8] M. Zhang, J. Wei, H. Jiang, K. J. Chen, and C. Cheng, SiC trench MOSFETT with self-biased p-shield for low RON-SP and low OFF-state oxide field, IET Power Electron. 10 10 (2017) 1208-1213.

DOI: 10.1049/iet-pel.2016.0945

Google Scholar

[9] M. Namai, J. An, H. Yano, and N. Iwamuro, Experimental and Numerical Demonstration and Optimized Method for SiC Trench MOSFET Short-Circuit Capability, IEEE ISPSD (2017) 363-366.

DOI: 10.23919/ispsd.2017.7988993

Google Scholar

[10] M. D. Kelley, B. N. Pushpakaran, and S. B. Bayne, Single-Pulse Avalanche Mode Robustness of Commercial 1200 V/80 mΩ SiC MOSFETs, IEEE Trans. on Power Electronics 32 8 (2017) 6405-6415.

DOI: 10.1109/tpel.2016.2621099

Google Scholar

[11] A. Fayyaz, A. Castellazzi, G. Romano, M. Riccio, A. Irace, J. Urresti, and N. Wright, Influence of gate bias on the avalanche ruggedness of SiC power MOSFETs, IEEE ISPSD (2017) 391-394.

DOI: 10.23919/ispsd.2017.7988986

Google Scholar

[12] J. Wei, S. Liu, L. Yang, L. Tang, R. Lou, T. Li, J. Fang, S. Li, C. Zhang, and W. Sun, Comprehensive Analysis of Electrical Parameters Degradations for SiC Power MOSFETs Under Repetitive Short-Circuit Stress, IEEE Trans. Electron Devices 65 12 (2018) 5440-5447.

DOI: 10.1109/ted.2018.2873672

Google Scholar
